1686609 Festo Cable Assemblies

1686609 on Powermatic Associates
Festo

Part#:1686609

Alt. Part#:NHSB-A1-10-BLG3-LE3-PU8-2XBB

Manufacturer:Festo

Category:Cable Assemblies

Product Lifecycle:Active

Product description

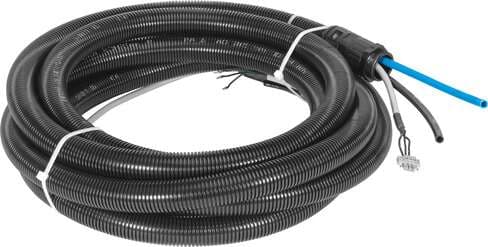

connecting cable NHSB-A1-10-BLG3-LE3-PU8-2XBB pneumatically/electrically suitable for linear actuator DFPI-…-E-…P, length 10 m. Protective tube length: 10 m, Assembly position: Any, Outdoor use: C1 - weather protected locations of use, Operating voltage r

Product Details

  • Use in exterior area
    Weather-protected locations class C1 based on IEC 60654-1
  • Degree of protection
    IP65 NEMA 4
  • Ambient temperature
    -20 °C ... 60 °C
  • Cable design
    3 x 0.75 mm²
  • Protective conduit fitting material
    PA
  • Mounting position
    Any
  • Ambient temperature with flexible cable installation
    -5 °C ... 60 °C
  • Min. cable bending radius
    100 mm
  • DC operating voltage range
    0 V ... 30 V
  • Electrical connection 1
    Straight plug, 3-pin
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Product weight
    2500 g
  • Material of cable sheath
    PVC
  • Protective tube length
    10 m
  • Electrical connection 2
    Open end, 3-wire
  • Pneumatic connection
    For pneumatic tubing outside diameter 8 mm
  • Protective conduit material
    PA
  • Type code
    NHSB
  • Relative air humidity
    5 - 100 % Condensing
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Seals material
    TPE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
