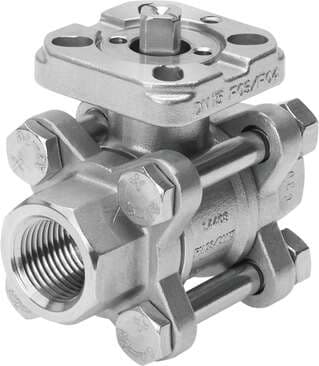

1686641 Festo Ball Valves
Part#:1686641
Alt. Part#:VZBA-11/4"-GG-63-T-22-F0405-V4V4T
Manufacturer:Festo
Category:Ball Valves
Product Lifecycle:Active
Product description
ball valve VZBA-11/4"-GG-63-T-22-F0405-V4V4T 2/2-way, flange hole pattern F0405, thread EN 10226-1. Design structure: 2-way ball valve, Type of actuation: mechanical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation
Product Details
- Valve function 2/2
- Inside diameter 32 mm
- Manual override None
- Medium Compressed air as per ISO 8573-1:2010 [-:-:-] Other flow media on request
- Housing material High-alloy stainless steel
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Actuation type Mechanical
- Fitting connection Rp1 1/4
- Nominal width DN 32
- Symbol 00991458
- Seals material PTFE PTFE-reinforced
- Shaft material High-alloy stainless steel
- Sealing principle Soft
- Flange hole pattern F04 F05
- Actuating torque 24 Nm
- Temperature of medium -10 °C ... 200 °C
- Material number of housing 1.4408
- Material number for shaft 1.4401
- Design 2-way ball valve
- Type of mounting Line installation
- Flow direction Reversible
- Nominal pressure of fitting PN 63
- Ball material High-alloy stainless steel
- Material number for ball 1.4408
- Product weight 1850 g
- Type code VZBA
- Mounting position Any
- Switching position indication Slot direction = flow direction
- Based on norm DIN 3202-M3 ISO 5211
- Flow rate Kv 105 m³/h
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Corrosion resistance class (CRC) 3 - High corrosion stress
- CE marking (see declaration of conformity) as per EU pressure equipment directive
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
