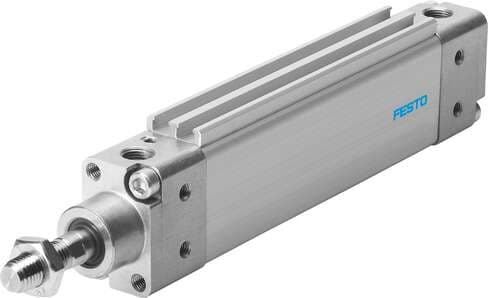

151121 Festo Pneumatic Actuators

Product Details

• Seals material
  TPE-U(PU)
• Cushioning
  Pneumatic cushioning, adjustable at both ends
• Position sensing
  For proximity sensor
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Cushioning length
  17 mm
• Basic weight with 0 mm stroke
  330 g
• Max. angle of rotation of the piston rod +/-
  2.4 deg
• Mode of operation
  Double-acting
• Protection against torsion/guide
  Oval piston
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Max. torque for protection against rotation
  0.8 Nm
• Pneumatic connection
  G1/8
• Piston diameter
  25 mm Equivalent diameter
• Type of mounting
  Optionally: With accessories
• Note on materials
  RoHS-compliant
• Piston rod material
  High-alloy steel
• Stroke
  25 mm
• Mounting position
  Any
• Symbol
  00991235
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
Theoretical force at 6 bar, retracting
247 N
Additional weight per 10 mm stroke
21 g
Cover material
Aluminum
Type code
DZH
Design
Piston Piston rod
Operating pressure
0.1 MPa ... 1 MPa
Ambient temperature
-20 °C ... 80 °C
Theoretical force at 6 bar, advancing
295 N
Housing material
Aluminum
