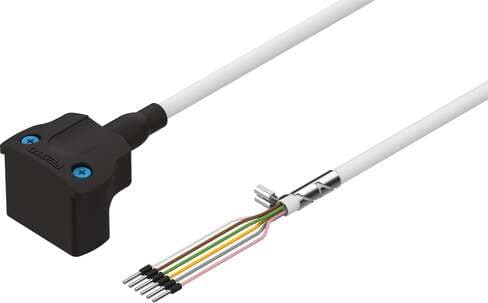

1450369 Festo Cable Assemblies

Product Details

• Ambient temperature with flexible cable installation
  -5 °C ... 80 °C
• Cable designation
  Without label holder
• Electrical connection 1, connection technology
  Sub-D
• Electrical connection 1, number of pins/wires
  9
• Electrical connection 2, function
  Control side
• Electrical connection 2, number of pins/wires
  6
• Nominal operating voltage DC
  24 V
• Cable length
  2.5 m
• Cable design
  6 x 0.34 mm² Shielded
• Ambient temperature
  -40 °C ... 80 °C
• Note on materials
  RoHS-compliant
• Electrical connection 1, function
  Field device end
• Electrical connection 1, connection type
  Socket
• Electrical connection 1, cable outlet
  Straight
• Electrical connection for input 1, connection pattern
  00995638
• Electrical connection 2, occupied pins/wires
  6
• Cable characteristic
  Suitable for energy chains
• Bending radius, flexible cable installation
  ≥ 62 mm
• Degree of protection
  IP65
• Color cable sheath
  Gray
Nominal conductor cross section
0.34 mm²
Note on degree of protection
In mounted state
Material of cable sheath
TPE-U(PUR)
Type code
NEBM
Electrical connection 1, design
Rectangular
Electrical connection 1, occupied pins/wires
6
Electrical connection 2, connection type
Cable
Electrical connection 2, connection technology
Open end
DC operating voltage range
0 V ... 72 V
Cable diameter
6.2 mm
Wire ends
Cable end sleeve
CE marking (see declaration of conformity)
As per EU RoHS directive
Corrosion resistance class (CRC)
0 - No corrosion stress
