132918 Festo Pneumatic Fittings

132918 on Powermatic Associates
Festo

Part#:132918

Alt. Part#:QSM-M5-6-I-R-100

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

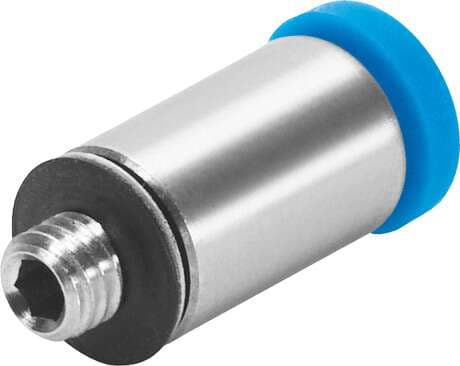

push-in fitting QSM-M5-6-I-R-100 male thread with internal hexagon socket. Size: Mini, Nominal size: 2,6 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 100

Product Details

  • Maritime classification
    See certificate
  • Type of seal on screwed trunnion
    Sealing ring
  • Design
    Push-pull principle
  • Temperature-dependent operating pressure
    -0.95 bar ... 14 bar
  • Pneumatic connection 1
    External thread M5
  • Note on materials
    RoHS-compliant
  • Material of tube retaining claw
    High-alloy stainless steel
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Nominal tightening torque
    1.33 Nm
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 6 mm
  • Housing material
    Brass Nickel-plated
  • Material of tubing seal
    NBR
  • Mounting position
    Any
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Nominal width
    2.6 mm
  • Pack size
    100
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Tolerance for nominal tightening torque
    ± 20%
  • Releasing ring material
    POM
  • Size
    Mini
  • Type code
    QSM
  • Operating pressure for entire temperature range
    -0.95 bar ... 6 bar
  • Ambient temperature
    -10 °C ... 80 °C
  • Product weight
    4.4 g
  • Releasing ring color
    Blue

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

132918 Related Documents

132918 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

572319 on Powermatic Associates

572319

Festo

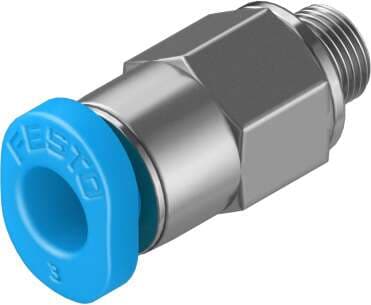

push-in fitting QB-1/8-5/16-I-U Size: Standard, Nominal size: 0,189 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle
