132999 Festo Pneumatic Fittings

Name: 132999
Brand: Festo

Part#:132999

Alt. Part#:QS-G1/8-10-I

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

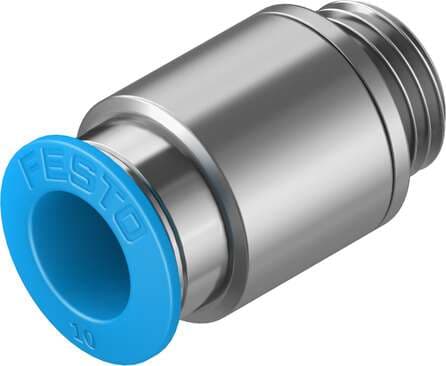

push-in fitting QS-G1/8-10-I male thread with internal hexagon socket. Size: Standard, Nominal size: 5,3 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

Product Details

Nominal width
5.3 mm
Size
Standard
Type code
QS
Operating pressure for entire temperature range
-0.95 bar ... 6 bar
Tolerance for nominal tightening torque
± 20%
Material of tubing seal
NBR
Mounting position
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Nominal tightening torque
7 Nm
Releasing ring color
Blue
Releasing ring material
POM
Type of seal on screwed trunnion
Sealing ring
Temperature-dependent operating pressure
-0.95 bar ... 14 bar
Information on operating and pilot media
Operation with oil lubrication possible
Product weight
19 g
Note on materials
RoHS-compliant
Material of tube retaining claw
High-alloy stainless steel
Maritime classification
See certificate
Pack size
10
Corrosion resistance class (CRC)
1 - Low corrosion stress

Pneumatic connection 1

External thread G1/8

Housing material

Brass Nickel-plated

Design

Push-pull principle

Ambient temperature

-10 °C ... 80 °C

Pneumatic connection 2

for pneumatic tubing outside diameter 10 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
