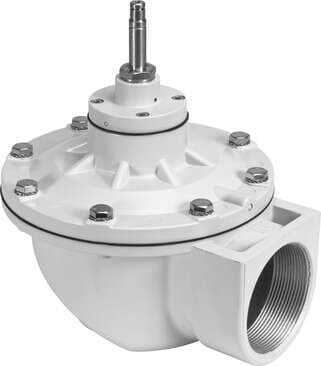

1281702 Festo Pneumatic Components
Part#:1281702
Alt. Part#:VZWE-E-M22C-M-G212-620-H
Manufacturer:Festo
Category:Pneumatic Components
Product Lifecycle:Active
Product description
basic valve VZWE-E-M22C-M-G212-620-H Reverse jet pulse valve, angle design Design structure: (* Corner design, * Diaphragm valve), Type of actuation: electrical, Sealing principle: soft, Assembly position: Any, Mounting type: (* Tightened, * with thread)
Product Details
- Actuation type Electrical
- Process valve connection 1 G2 1/2
- Medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- On switching time ≤ 30 ms
- Seals material NBR
- Degree of protection IP65
- Mounting position Any
- Valve function 2/2, closed, monostable
- Reset method Mechanical spring
- Type of control Pilot-controlled
- Ambient temperature -20 °C ... 60 °C
- Material of screws High-alloy stainless steel
- Diaphragm material NBR-PA
- Max. tightening torque for connecting thread 350 Nm
- Design Angled version Diaphragm valve
- Type of mounting Screwed tightly With thread
- Manual override None
- Medium pressure 0.35 bar ... 8 bar
- Housing material Die-cast aluminum
- Material number of housing EN AC-47100D
- Type code VZWE
- Sealing principle Soft
- Nominal width 62 mm
- Differential pressure 0.35 bar
- Information on operating and pilot media Operation with oil lubrication not possible
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Armature tube material High-alloy steel
- Product weight 3100 g
- Fitting connection 2 G2 1/2
- Flow direction Non-reversible
- Symbol 00995358
- Flow rate Kv 95 m³/h
- Switching time off ≤ 100 ms
- Material number of screw 1.4301
- Corrosion resistance class (CRC) 3 - High corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
