M22-LED-B Eaton Industrial Automation Components

M22-LED-B on Powermatic Associates
Eaton

Part#:M22-LED-B

Manufacturer:Eaton

Category:Industrial Automation Components

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 13, 2025

Product description

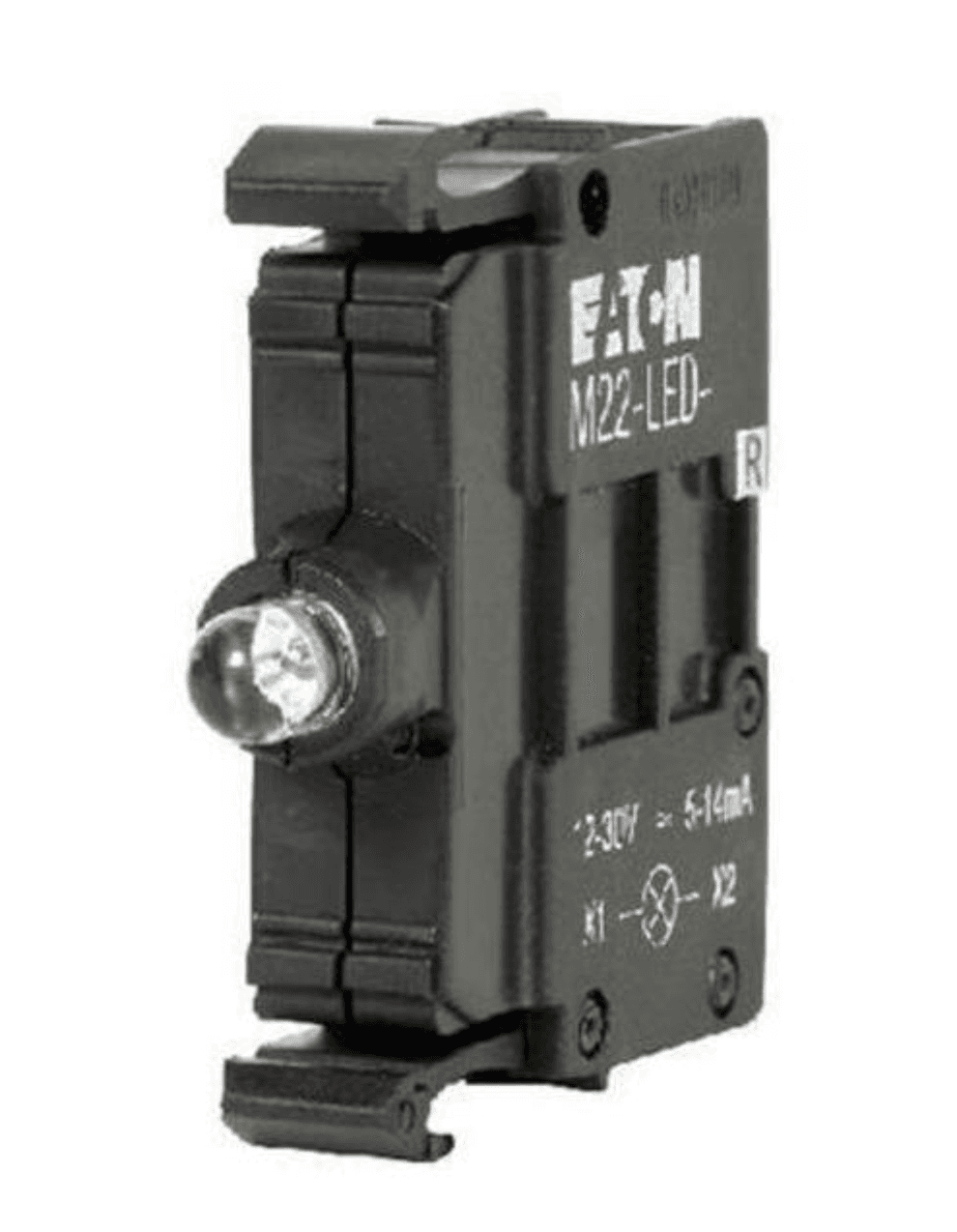

M22-LED-B Eaton - Eaton M22 modular pushbutton, LED Light Unit, Screw, IP66, NEMA 4X, 13, Illuminated, Blue, 12-30 Vac/dc

Product Details

  • Weight
    .1 pounds
  • Length
    2 inches
  • Height
    1 inch
  • Enclosure Material
    Stainless Steel
  • Lamp Type:
    Blue LED
  • Mounting:
    Front
  • Size:
    22.5 Millimeter
  • Series:
    M22
  • Type:
    Pushbutton
  • Shipping Height:
    1.00 In.
  • Shipping Weight:
    0.05 lbs.
  • Lamp Input Type:
    12 to 30 Volt AC/DC at 50/60 Hertz
  • Shipping Width:
    2.00 In.
  • Accessory Type:
    Replacement Lamps
  • Shipping Length:
    2.00 In.
  • UPC:
    786685277592
  • Approval:
    UL
  • Voltage rating
    12-30 Vac/dc
  • Type
    Light Unit
  • Illumination
    Illuminated
  • Actuator
    Screw
  • Size
    22.5 millimeters
  • Light color
    Blue
  • Environmental rating
    IP66, NEMA 4X, 13
  • Series
    M22
  • Certifications
    CSA Certified CCC Marked Lloyd's Register Certified
  • Catalog Notes
    For complete listing of available button lenses, light units and contact blocks, seeAccessories
  • Product Length/Depth
    2 in
  • Compliances
    CE Marked Bureau Veritas GoST-R
  • Warranty
    Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
  • Product Weight
    .1 lb
  • Product Width
    2 in
  • Product Height
    1 in
  • UPC
    786685277592
  • Catalog Number
    M22-LED-B
  • Product Name
    Eaton M22 modular pushbutton

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M22-LED-B Related Documents

InstallationOperator.pdfDataSheet.pdfSpecificationTechnical.pdf
