WLS28-2XWW430DSQ Banner Light Bars

WLS28-2XWW430DSQ on Powermatic Associates
Banner

Part#:WLS28-2XWW430DSQ

Alt. Part#:94363

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

WLS28-2 Work Light Strip; Diffuse Window; Length: 430 mm; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: Warm White; 4-pin M12 Integral QD

Product Details

  • Weight
    453.592 g
  • Country Of Origin
    MX
  • Wireless
    No
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Diffused
  • Min Op. Temperature (°C)
    -40
  • Storage Temp (°C)
    -40 to 70
  • Max Op. Temperature (°C)
    70
  • Environmental Rating
    IP65; IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    467.0 x 28.0 x 20.9
  • Illuminated Length (LxWxH mm)
    430.0
  • Supply Voltage
    12-30 V dc
  • Number of Input Pins/Conductors
    4
  • Dimming Option
    High-Low-Off
  • Animation Option 1
    Solid On
  • Quick Disconnect Type
    M12 (Euro)
  • Color Option 1
    White
  • Color 1 - Wavelength/Color Temp/Coordinates
    3000K (Warm)
  • Lumens Color 1
    900
  • Color Technology
    Standard LED
  • Connection
    Integral QD
  • Product Size (mm)
    28
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Illumination
    Yes
  • Mounting Thread
    No Thread
  • Housing Style
    Linear Strip
  • Primary Housing Material
    Aluminum
  • Power Source
    DC
  • Power
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS28-2XWW430DSQ on Powermatic Associates is $311.00. Order now.

About the product

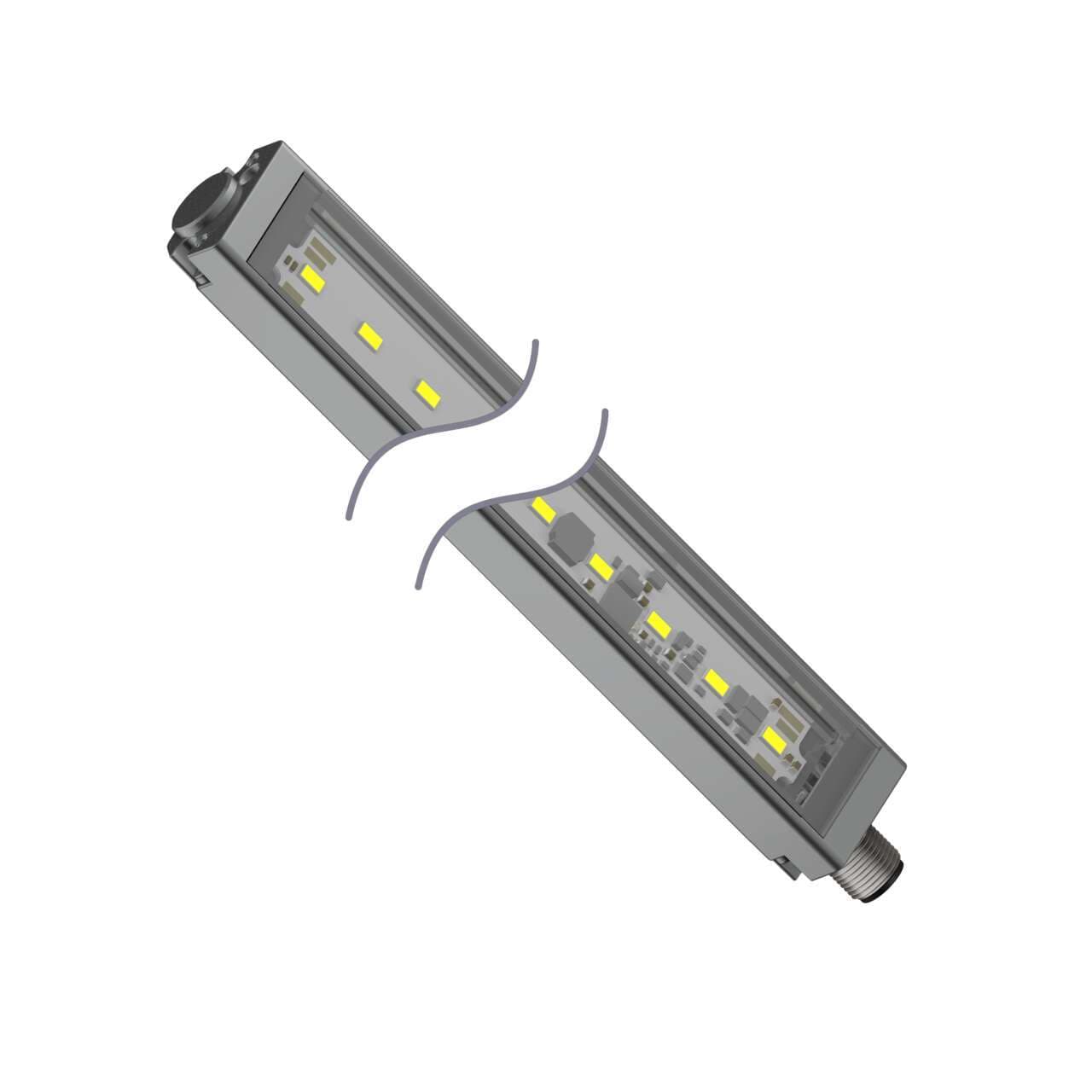

Banner Engineering WLS28-2XWW430DSQ is a sealed LED industrial strip light designed for task lighting applications. It features a diffused plastic window for 1-color Warm White (WW) LED illumination, operating on a supply voltage range of 12Vdc to 30Vdc with a nominal 24Vdc. The dimensions of this linear light strip are L430mm x W28mm, constructed with a polycarbonate window and an aluminium housing. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. This product is designed for surface or wall mounting and offers a degree of protection rated at IP65, IP67, and IP69K, making it suitable for various industrial environments. It can operate within an ambient air temperature range of -40°C to +70°C. Additionally, it includes 1 x digital input (12-30Vdc) for color control and provides a luminous flux of 900 lm (lumens).
