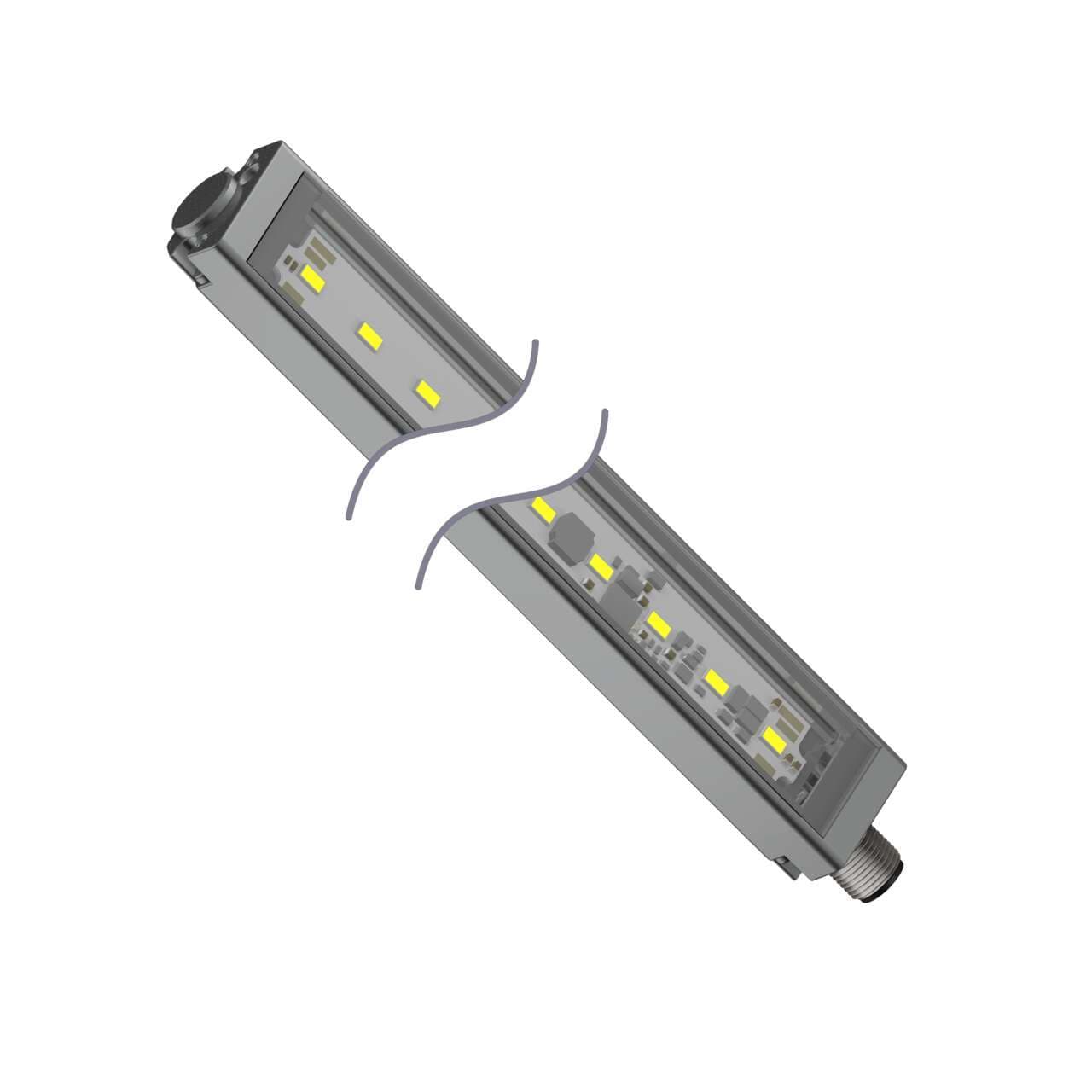

WLS28-2XWW285DSQ Banner Light Bars

Name: WLS28-2XWW285DSQ
Brand: Banner
Price: 239 USD
Availability: BackOrder

WLS28-2XWW285DSQ on Powermatic Associates

Part#:WLS28-2XWW285DSQ

Manufacturer:Banner

Alt. Part#:93831

Product Lifecycle:Active

Get a quick Quote!

WLS28-2 Work Light Strip; Diffuse Window; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: Warm White; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS28-2XWW285DSQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
340.194 g
Country Of Origin
MX
Wireless
No
Modbus RTU
No
Pro-Editor Compatible (Discrete)
No
IO Link
No
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Washdown Rated
Yes
Min Op. Temperature (°C)
-40
Primary Window Material
Polycarbonate Diffused
Storage Temp (°C)
-40 to 70
Max Op. Temperature (°C)
70
Physical Dimensions (LxWxH or DxH mm)
326.0 x 28.0 x 20.9
Illuminated Length (LxWxH mm)
285.0
Environmental Rating
IP65; IP67; IP69
Supply Voltage
12-30 V dc
Number of Input Pins/Conductors
4
Dimming Option
High-Low-Off

Color 1 - Wavelength/Color Temp/Coordinates

3000K (Warm)

Color Technology

Standard LED

Color Option 1

White

Animation Option 1

Solid On

Lumens Color 1

600

Quick Disconnect Type

M12 (Euro)

Connection

Integral QD

Product Size (mm)

Mounting Thread

No Thread

Illumination

Yes

Number of Colors / Segments

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Primary Housing Material

Aluminum

Housing Style

Linear Strip

Power Source

Power

Cable Length (m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS28-2XWW285DSQ Description

Banner Engineering WLS28-2XWW285DSQ is a sealed LED industrial strip light designed for task lighting applications. It features a diffused plastic window for 1-color Warm White (WW) LED illumination, operating on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this linear light strip are L285mm x W28mm, constructed with a polycarbonate (PC) window and an aluminium housing. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The WLS28-2XWW285DSQ offers a degree of protection rated at IP65, IP67, and IP69K, making it suitable for surface or wall mounting in environments with an ambient air temperature range of -40°C to +70°C. It includes 1 x digital input (12-30Vdc) for color control and provides a luminous flux of 600 lumens.
