Powermatic Associates Logo

WLS28-2XW990XQ Banner Light Bars

WLS28-2XW990XQ on Powermatic Associates
Banner

Part#:WLS28-2XW990XQ

Alt. Part#:87992

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

WLS28-2 Work Light Strip; Length: 990 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; 4-pin M12 Integral QD

Product Details

  • Weight
    757.4079216 g
  • Country Of Origin
    MX
  • Modbus RTU
    No
  • Feature: Chemical Resistant
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Primary Window Material
    Polycarbonate Clear
  • IO Link
    No
  • Storage Temp (°C)
    -40 to 70
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Physical Dimensions (LxWxH or DxH mm)
    1032.0 x 28.0 x 20.9
  • Supply Voltage
    12-30 V dc
  • Illuminated Length (LxWxH mm)
    990.0
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    70
  • Environmental Rating
    IP50
  • Number of Input Pins/Conductors
    4
  • Dimming Option
    High-Low-Off
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Color Technology
    Standard LED
  • Lumens Color 1
    2800
  • Color Option 1
    White
  • Animation Option 1
    Solid On
  • Number of Colors / Segments
    1
  • Product Size (mm)
    28
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    No Thread
  • Illumination
    Yes
  • Primary Housing Material
    Aluminum
  • Housing Style
    Linear Strip
  • Power Source
    DC
  • Power
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS28-2XW990XQ on Powermatic Associates is $480.00. Order now.

About the product

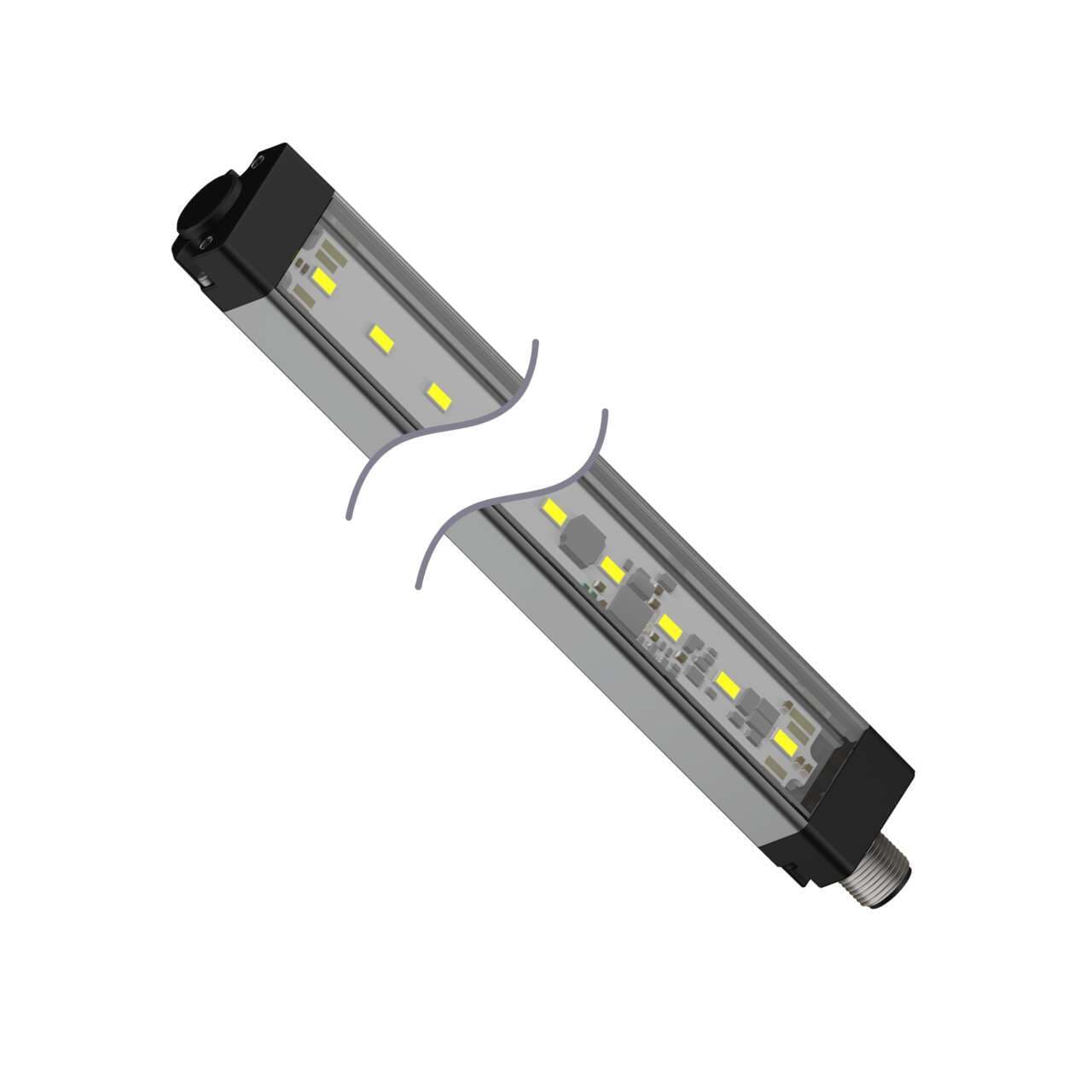

Banner Engineering WLS28-2XW990XQ is a task light designed as an LED industrial strip light/bar with a clear plastic window for 1-color Cool White (W) LED illumination. It operates on a supply voltage of 12Vdc-30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L990mm x W28mm, featuring a polycarbonate (PC) window and an anodized aluminum housing. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. This linear light strip has a degree of protection rated at IP50 and can be mounted on surfaces or walls. It is designed to operate in ambient air temperatures ranging from -40°C to +70°C. Additionally, it includes 1 x digital input (12-30Vdc) for color control and offers a luminous flux of 2800 lm (lumens).
