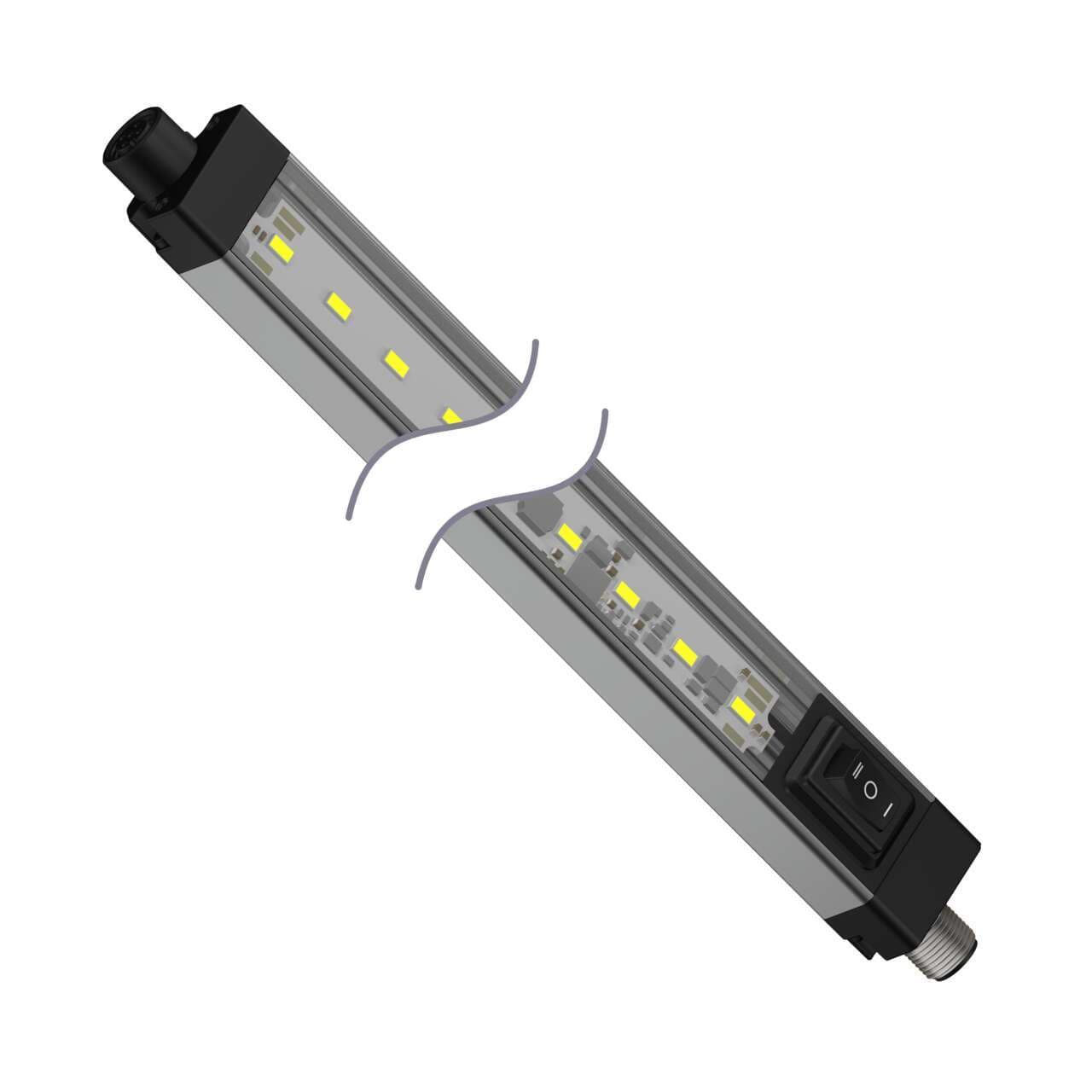

WLS28-2CW990DXPBQ Banner Light Bars

Product Details

• Weight
  907.184 g
• Country Of Origin
  MX
• Wireless
  No
• Pro-Editor Compatible (Discrete)
  No
• Feature: Audible
  No
• Feature: Hazardous Area
  No
• Primary Window Material
  Polycarbonate Diffused
• Min Op. Temperature (°C)
  -40
• Number of Input Pins/Conductors
  4
• Supply Voltage
  12-30 V dc
• Lumens Color 1
  2100
• Quick Disconnect Type
  M12 (Euro)
• Number of Colors / Segments
  1
• Housing Style
  Linear Strip
• Illumination
  Yes
• IO Link
  No
• Modbus RTU
  No
• Feature: Chemical Resistant
  No
• Feature: Cascade
  Yes
• Illumination Switch Function
  I=Low; O=OFF; II=High
Storage Temp (°C)
-40 to 70
Environmental Rating
IP50
Max Op. Temperature (°C)
70
Physical Dimensions (LxWxH or DxH mm)
1070.0 x 28.0 x 25.0
Illuminated Length (LxWxH mm)
990.0
Color 1 - Wavelength/Color Temp/Coordinates
6500K (Cool)
Color Option 1
White
Dimming Option
High-Low-Off
Connection
Integral QD
Animation Option 1
Solid On
Color Technology
Standard LED
Mounting Thread
No Thread
Product Size (mm)
28
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Primary Housing Material
Aluminum
Power Source
DC
Power
DC
