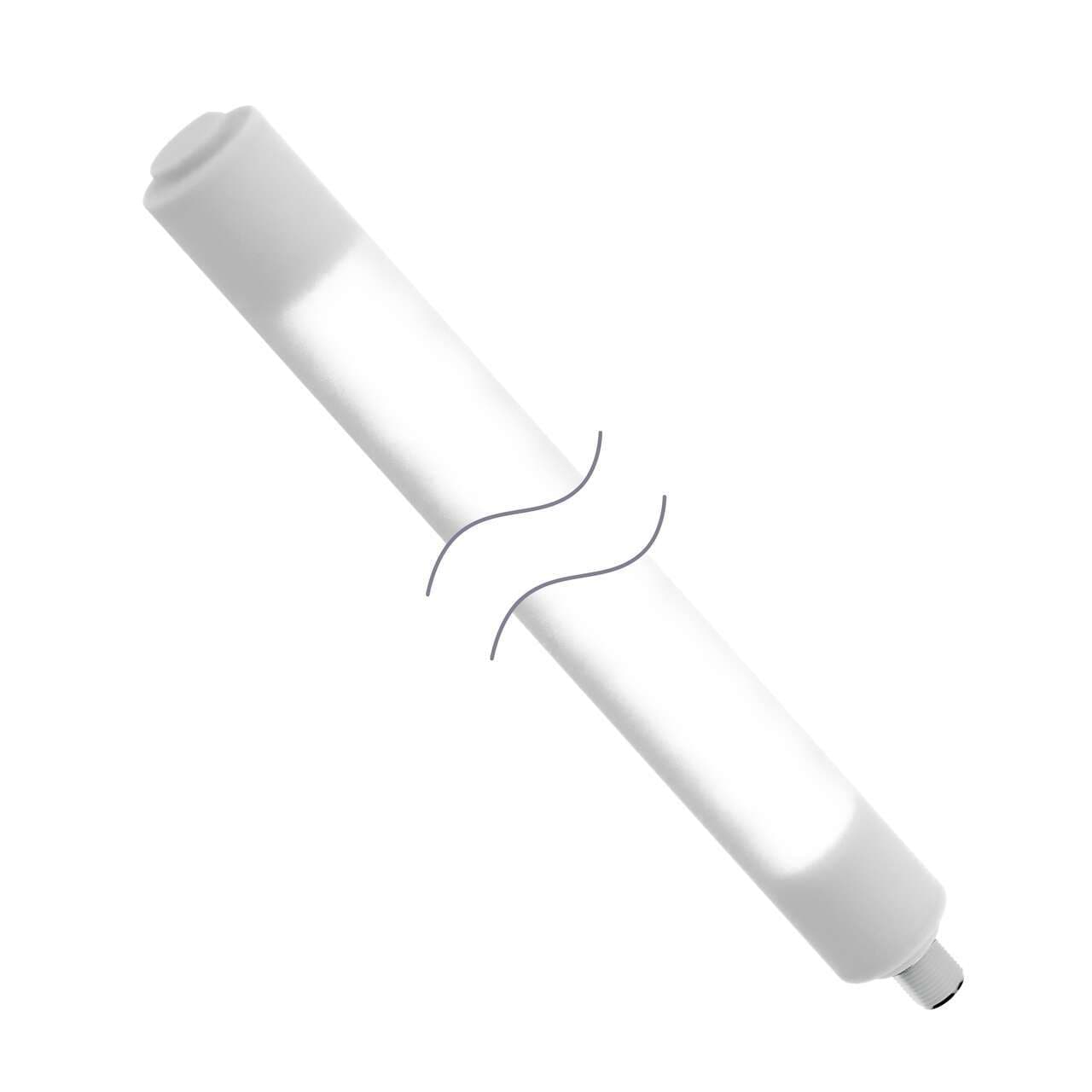

WLS27XWR-430DSQ Banner Signal Towers

Banner WLS27XWR-430DSQ WLS27 Dual Color Light Strip; Length: 430 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White (100%) Red (100%); 4-pin M12 Integral QD
Banner

Part#:WLS27XWR-430DSQ

Manufacturer:Banner

Alt. Part#:802999

Product Lifecycle:Active

Get a quick Quote!

WLS27 Dual Color Light Strip; Length: 430 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White (100%) Red (100%); 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS27XWR-430DSQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    34.0194 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • Feature: Quick Disconnect
    Yes
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Copolyester Diffused
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Environmental Rating
    IP66; IP67; IP69
  • Max Op. Temperature (°C)
    70
  • Physical Dimensions (LxWxH or DxH mm)
    27.0 x 492.5
  • Illuminated Length (LxWxH mm)
    430.0
  • Supply Voltage
    12-30 V dc
  • Dimming Option
    High-Low-Off
  • Number of Input Pins/Conductors
    4
  • Max Current Color (mA)
    1200
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Quick Disconnect Type
    M12 (Euro)
  • Lumens Color 2
    165
  • Animation Option 2
    Solid On
  • Color Option 2
    Red
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Connection
    Integral QD
  • Color Option 1
    White
  • Lumens Color 1
    975
  • Color Technology
    Standard LED
  • Animation Option 1
    Solid On
  • Mounting Thread
    No Thread
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Product Size (mm)
    27
  • Power Source
    DC
  • Cable Length (m)
    2
  • Housing Style
    Linear Strip
  • Illumination
    Yes
  • Power
    DC
  • Primary Housing Material
    FDA Copolyester

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS27XWR-430DSQ Description

Banner Engineering WLS27XWR-430DSQ is a dual color series industrial sealed LED task light designed for a variety of applications. It features a diffused window with a 2-color white/red (W/R) color pattern LED illumination, suitable for tasks requiring clear visibility. This model operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 1.2A. The task light measures 430mm in length and 27mm in diameter, encased in a cylindrical linear strip shape. The copolyester diffused window and FDA-grade copolyester outer housing ensure durability and compliance with health standards. It is equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The WLS27XWR-430DSQ offers two digital inputs (12-30Vdc) for color control, allowing for versatile use in different settings. It boasts a high degree of protection with ratings of IP66, IP67, and IP69K, making it resistant to dust, water, and high-pressure washdowns. The ambient air temperature range for operation is from -40°C to +70°C, accommodating a wide range of environmental conditions.

Related documents WLS27XWR-430DSQ Specs

WLS27XWR-430DSQ 189557.pdf
