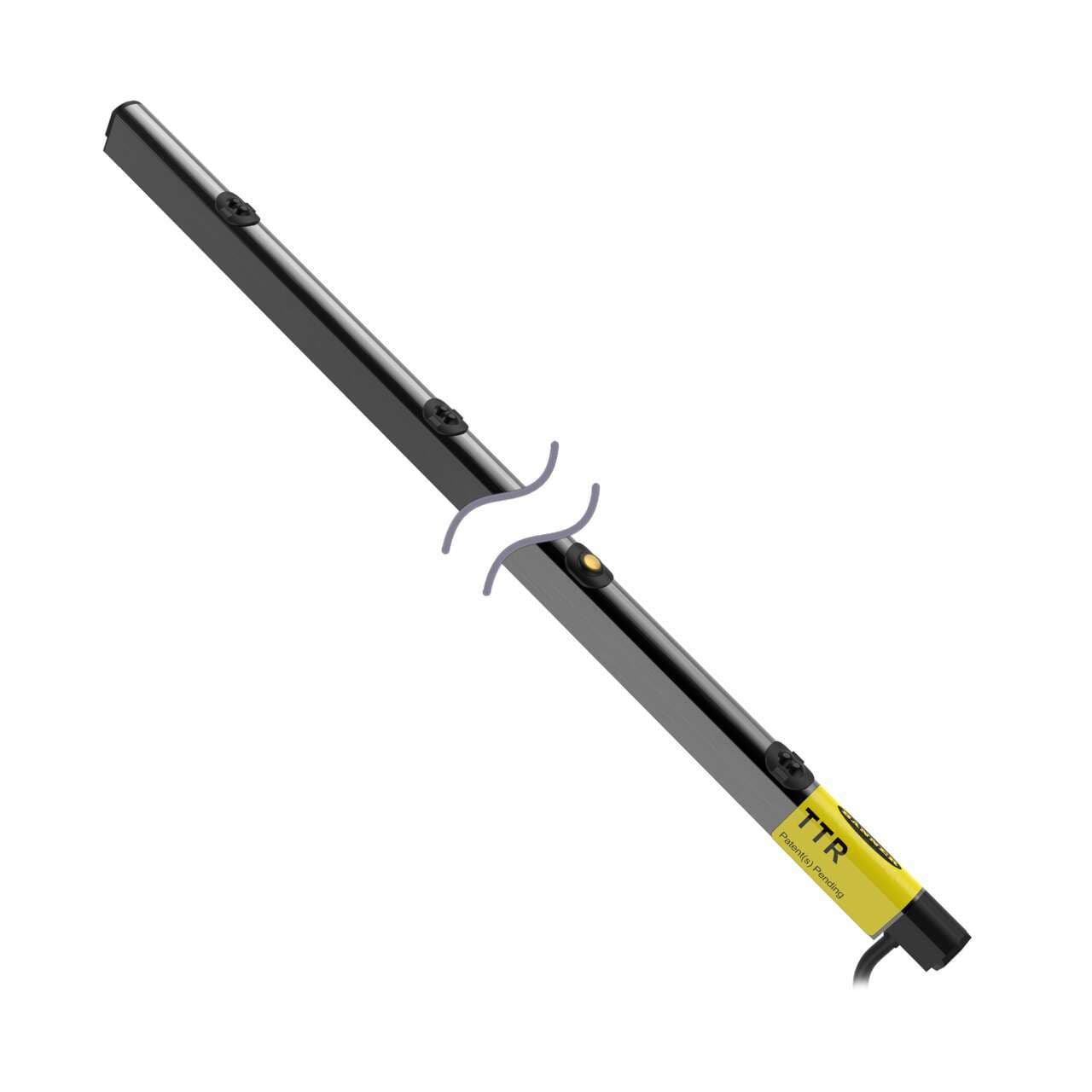

TTR875APSE4T-1.0FL-CTR Banner Safety Light Curtains
Part#:TTR875APSE4T-1.0FL-CTR
Alt. Part#:810271
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
TTR Series 4 Beam Sensor Array 34.4 in Between Frame; Beam Spacing: 186.2 mm; Range: 120 mm Diffuse; Output: LO PNP; Input: 18-30 V dc; 1 m (3.3 ft) Flying Leads T: T-Slot Mount Endcap
Product Details
- Weight 430.9124 g
- Country Of Origin MX
- Beam to Beam Spacing [mm] 186.2
- Number of Beams 4
- Indicator Indicator LEDs
- NEMA Rating N/A
- IP Rating IP50
- Distance to First Beam [mm] 158.2
- Max Op. Relative Humidity (%) 95% @ 55°C
- Min Op. Temperature (°C) -10
- Max Op. Temperature (°C) 55
- Operation Light/Dark Operate
- Delay at Power-up (ms) 1500
- Lens Material Polycarbonate
- Adjustments N/A
- Output response time (ms) 1
- Number of Pins 4
- Power Supply/Supply Voltage 18-30 V dc
- Outputs PNP
- Slot Overall Depth (mm) 19
- Quick Disconnect Type No QD
- Connection Cable
- End Cap Type T: T-Slot Mounting
- Max Sensing Range (mm) 120
- Slot Depth/Array Length (mm) 869
- Primary Housing Material Black Anodized Aluminum
- Housing Style Roller Conveyor
- Cable Length (m) 1
- Sensing Mode (Detailed) Diffuse
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR875APSE4T-1.0FL-CTR on Powermatic Associates is $203.00. Order now.
About the product
Banner Engineering TTR875APSE4T-1.0FL-CTR is a sensor array designed with a diffuse mode featuring 4 beams. This part is pre-wired with a 1-meter cable that has bare end flying leads for connection. It has an array length of 875mm and operates on a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. The ambient air temperature suitable for its operation ranges from -10 to +70 degrees Celsius. It offers a degree of protection rated at IP50 and comes in a rectangular shape. The distance between beams, or beam spacing/pitch, is 186.2mm. It includes 1 digital output (PNP transistor) and has a sensing distance of 120mm. The light color used for sensing is Infrared (IR) with a wavelength of 940 nm.
