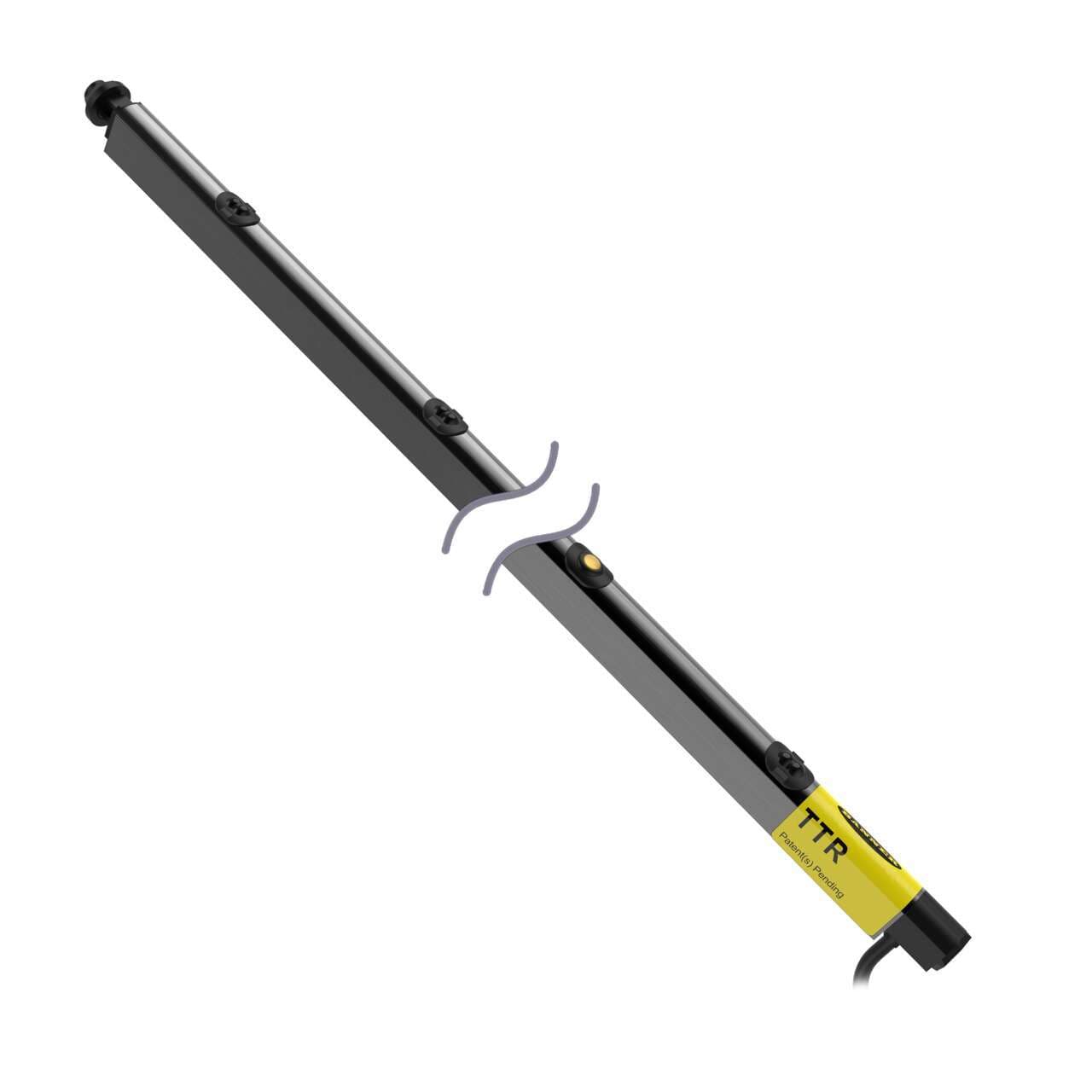

TTR600BMSB6B-2.0FL-CTR Banner Safety Light Curtains

TTR600BMSB6B-2.0FL-CTR on Powermatic Associates
Banner
  • TTR600BMSB6B-2.0FL-CTR
  • TTR600BMSB6B-2.0FL-CTR

Part#:TTR600BMSB6B-2.0FL-CTR

Alt. Part#:809793

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

TTR Series 6 Beam Sensor Array 23.61 in Between Frame; Beam Spacing: 93.1 mm; Range: 120 mm Diffuse; Output: Bimodal; Input: 18-30 V dc; 2 m (6.5 ft) Flying Leads Endcap B: Point Up / Hex & Round

Product Details

  • Weight
    358.33768 g
  • Country Of Origin
    MX
  • Quick Disconnect Type
    No QD
  • Sensing Mode (Detailed)
    Diffuse
  • Beam to Beam Spacing [mm]
    93.1
  • Number of Beams
    6
  • Distance to First Beam [mm]
    67.25
  • NEMA Rating
    N/A
  • IP Rating
    IP50
  • Min Op. Temperature (°C)
    -10
  • Operation
    Light/Dark Operate
  • Max Op. Temperature (°C)
    55
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Indicator
    Indicator LEDs
  • Delay at Power-up (ms)
    1500
  • Lens Material
    Polycarbonate
  • Adjustments
    N/A
  • Number of Pins
    4
  • Power Supply/Supply Voltage
    18-30 V dc
  • Output response time (ms)
    1
  • Slot Overall Depth (mm)
    19
  • Outputs
    Bimodal
  • Max Sensing Range (mm)
    120
  • Connection
    Cable
  • Slot Depth/Array Length (mm)
    600
  • Primary Housing Material
    Black Anodized Aluminum
  • End Cap Type
    B: Hex Point Up / Spring 11 mm Hex - 8 mm Round
  • Housing Style
    Roller Conveyor
  • Cable Length (m)
    2
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR600BMSB6B-2.0FL-CTR on Powermatic Associates is $241.00. Order now.

About the product

Banner Engineering TTR600BMSB6B-2.0FL-CTR is a sensor array designed with a diffuse mode featuring 6 beams. This part is pre-wired with a 2-meter cable that has bare end flying leads for connections. It has a rectangular shape with dimensions specifying a 600mm array length and operates within a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. The ambient air temperature suitable for its operation ranges from -10 to +70 degrees Celsius. It offers a degree of protection rated at IP50. The distance between beams, or beam spacing/pitch, is 93.1mm. It includes 1 digital output (PNP/NPN transistor) and has a sensing distance of 120mm. The light emitted by this sensor is in the infrared (IR) spectrum with a wavelength of 940 nm.
