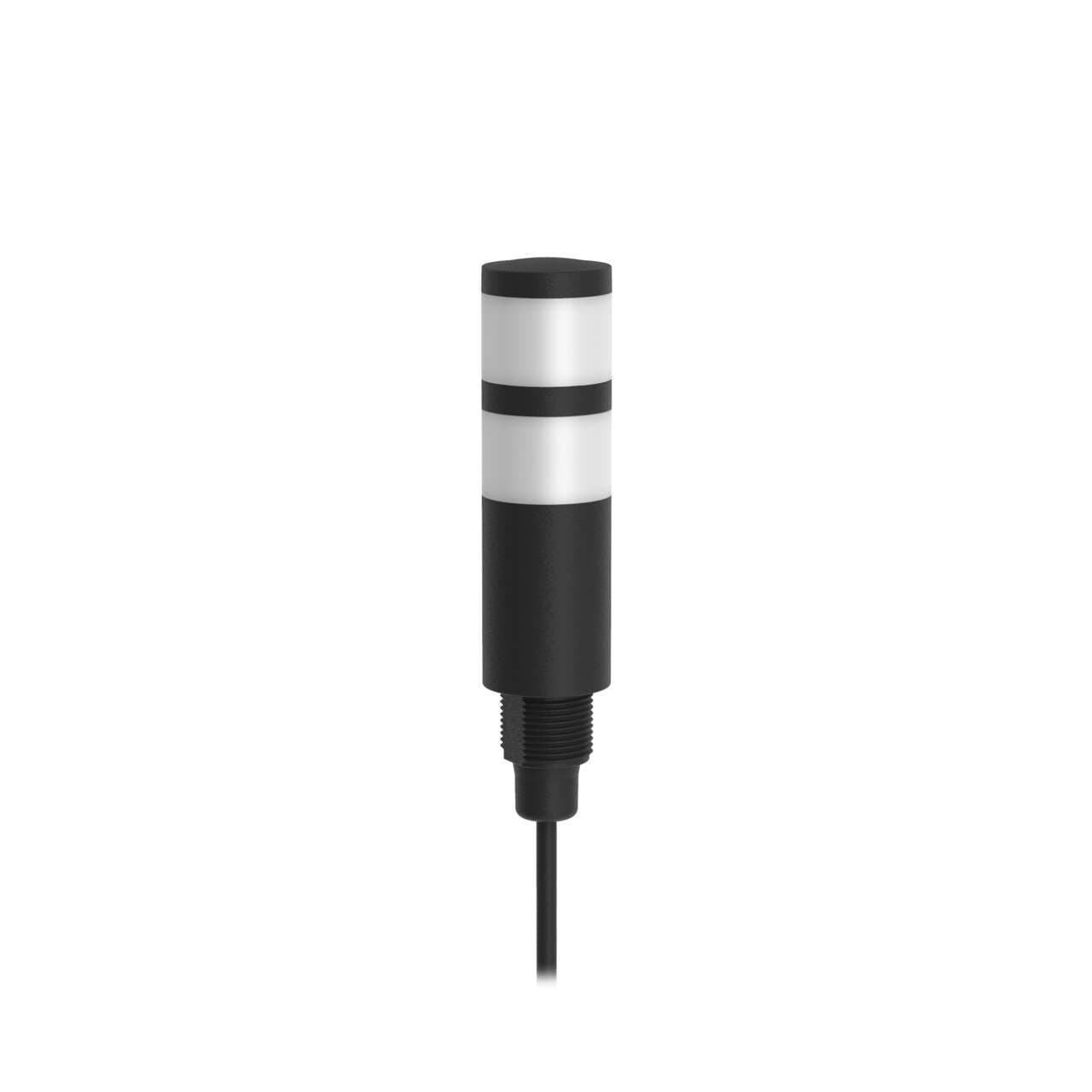

TL30BGRXXXNXC1 Banner Signal Towers

Product Details

• Weight
  132.902456 g
• Country Of Origin
  MX
• Pro-Editor Compatible (Discrete)
  No
• IO Link
  No
• Feature: Quick Disconnect
  No
• Wireless
  No
• Multi-Color Device
  Simultaneous Colors On
• Modbus RTU
  No
• Feature: Audible
  No
• Feature: Chemical Resistant
  No
• Primary Housing Color
  Black
• Feature: Hazardous Area
  No
• Primary Window Material
  Polycarbonate Diffused
• Min Op. Temperature (°C)
  -40
• Storage Temp (°C)
  -40 to 70
• Max Op. Temperature (°C)
  50
• Environmental Rating
  IP65
• Physical Dimensions (LxWxH or DxH mm)
  30.0 x 117.7
• Input Type
  Bimodal (PNP/NPN)
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
NEMA Type and UL Type Rating
UL 4X, 13
Max Current Color (mA)
40
Max Input Response Time (ms)
1
Supply Voltage
12-30 V dc
Number of Input Pins/Conductors
5
Color 2 - Wavelength/Color Temp/Coordinates
625 nm
Lumens Color 2
2.5
Color Option 2
Red
Connection
Cable
Color 1 - Wavelength/Color Temp/Coordinates
525 nm
Lumens Color 1
7.5
Number of Tower Light Segments
2
Animation Option 1
Solid On
Color Option 1
Green
Color Technology
Standard LED
Housing Style
Base Mount - Tower
Power Source
DC
Primary Housing Material
Polycarbonate
Number of Colors / Segments
2
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Power
DC
Indication
Yes
Product Size (mm)
30
Mounting Thread
M22 x 1.5
