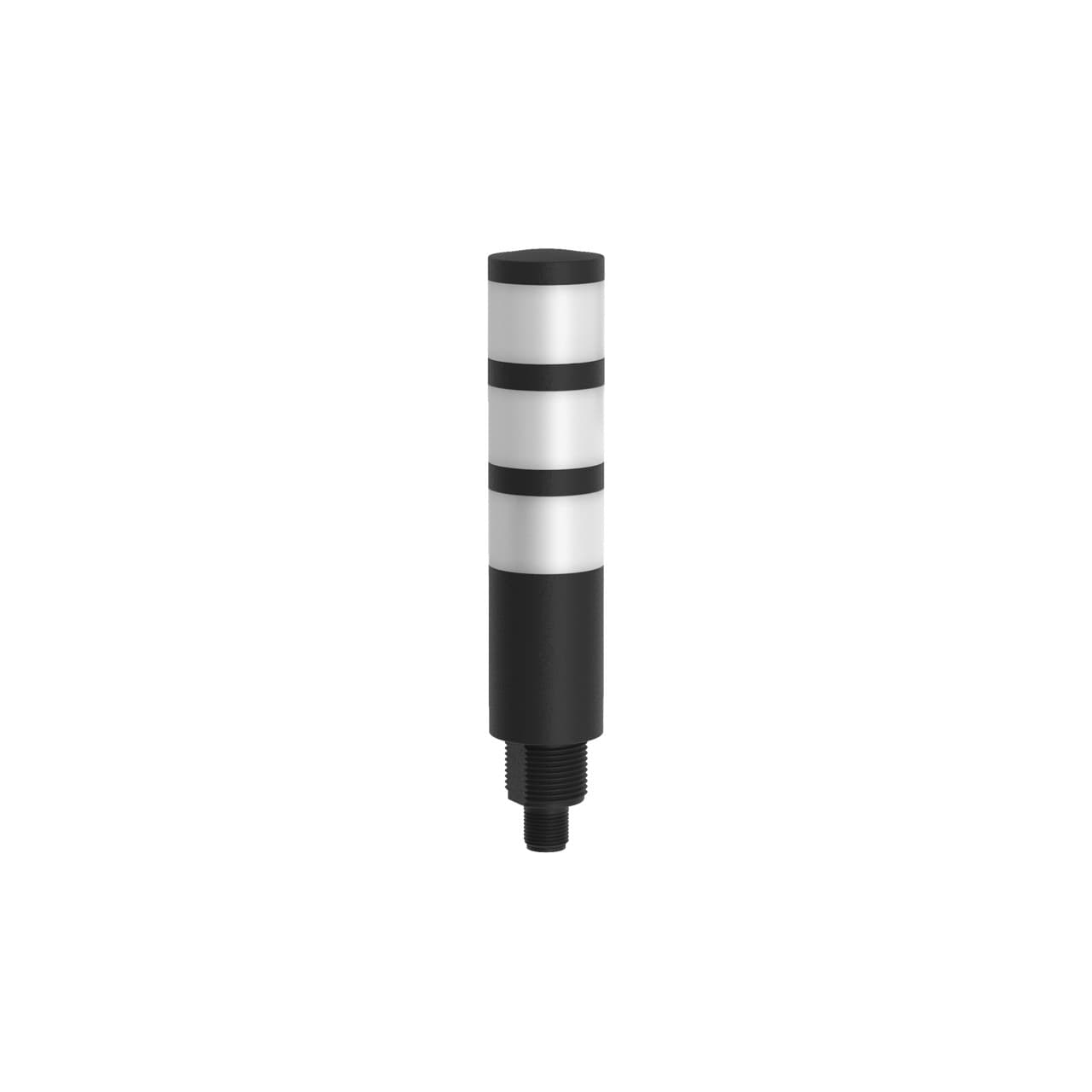

TL30BBYRXXNXQD Banner Electronic Components

Product Details

• Wireless
  No
• Pro-Editor Compatible (Discrete)
  No
• IO Link
  No
• Modbus RTU
  No
• Feature: Quick Disconnect
  Yes
• Multi-Color Device
  Simultaneous Colors On
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• Feature: Hazardous Area
  No
• Primary Window Material
  Polycarbonate Diffused
• Primary Housing Color
  Black
• Storage Temp (°C)
  -40 to 70
• Max Op. Temperature (°C)
  50
• Min Op. Temperature (°C)
  -40
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Environmental Rating
  IP65
• NEMA Type and UL Type Rating
  UL 4X, 13
• Physical Dimensions (LxWxH or DxH mm)
  30.0 x 157.7
• Max Input Response Time (ms)
  1
• Input Type
  Bimodal (PNP/NPN)
Max Current Color (mA)
40
Supply Voltage
12-30 V dc
Number of Input Pins/Conductors
5
Color 3 - Wavelength/Color Temp/Coordinates
625 nm
Lumens Color 2
6.5
Lumens Color 3
2.5
Color 2 - Wavelength/Color Temp/Coordinates
592 nm
Color Option 3
Red
Color 1 - Wavelength/Color Temp/Coordinates
470 nm
Color Option 2
Yellow
Quick Disconnect Type
M12 (Euro)
Lumens Color 1
2.0
Connection
Integral QD
Number of Tower Light Segments
3
Animation Option 1
Solid On
Color Option 1
Blue
Color Technology
Standard LED
Number of Colors / Segments
3
Product Size (mm)
30
Primary Housing Material
Polycarbonate
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Mounting Thread
M22 x 1.5
Power Source
DC
Indication
Yes
Housing Style
Base Mount - Tower
Power
DC
