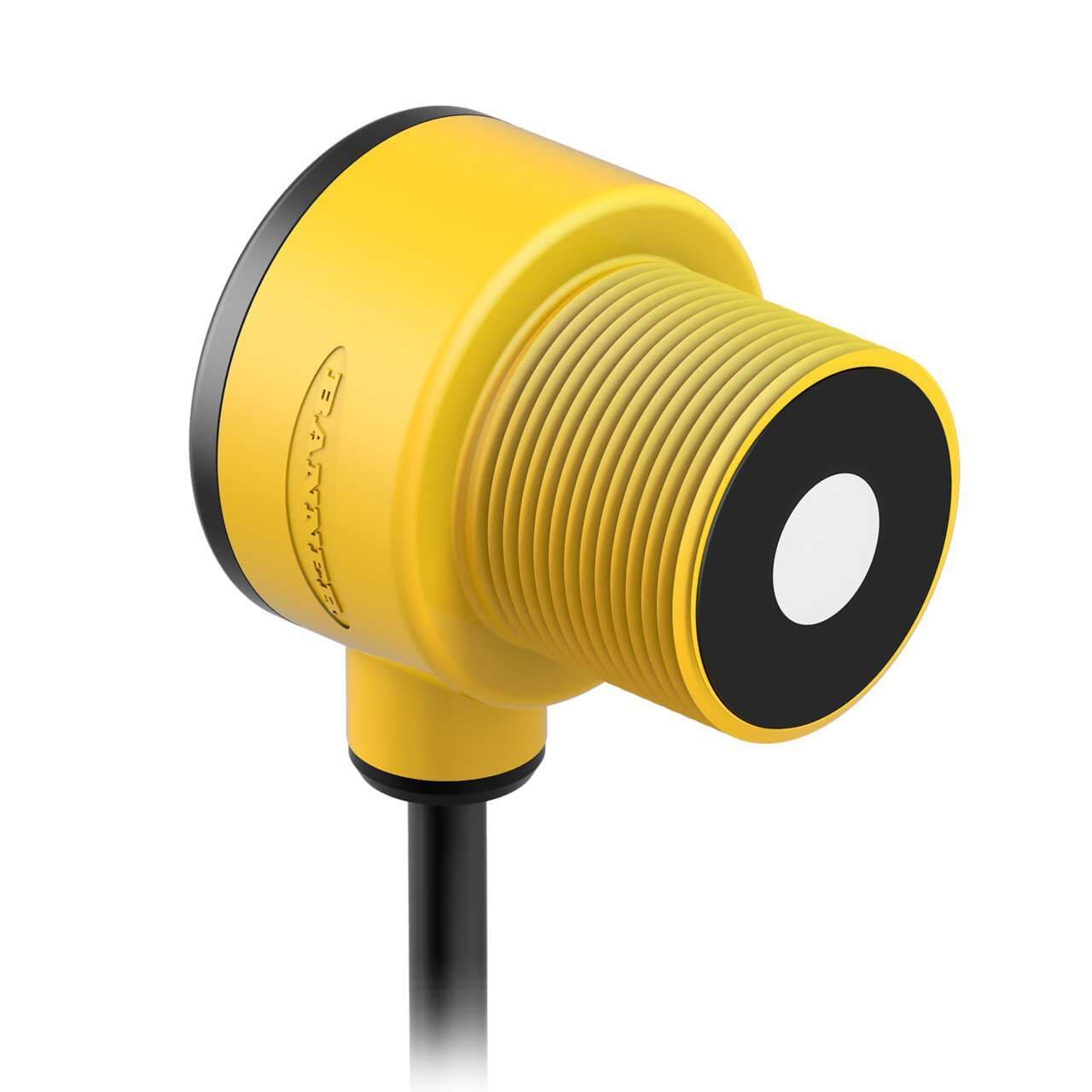

T30UXDAQPMA Banner Ultrasonic Sensors

Product Details

• Weight
  123.377024 g
• Country Of Origin
  CN
• RS-422
  No
• PROFINET
  No
• RS-232
  No
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• RS-485
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• Profibus
  No
• SSI
  No
• IO Link
  No
• Common Ethernet Protocol
  No
• Feature: Clear Object Detection
  Yes
• Feature: Timing (Hold/Delay)
  No
• Feature: Remote Teach
  Yes
• Feature: Chemical Resistant
  No
• Application: Ultrasonic
  Yes
• Power/Current Consumption (exclusive of load)
  40 mA
• Max Off-state Leakage Current (µA)
  NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
Discrete Output Hysteresis (mm)
2
Ultrasonic Frequency (kHz)
224
Barrel Diameter (mm)
30
Remote Teach and Laser Control Input Impedence
55 kΩ
Minimum Window Size (mm)
10
Rep Rate (ms)
15
Minimum Response Time (ms)
45
Warm-up Time (minutes)
15
Min Operating Temperature (°C)
-40
Max Op. Relative Humidity Non-Condensing (%)
95 at 50°C
Max Operating Temperature (°C)
70
NEMA Rating
NEMA 6
Output Protection
Protected against short circuit conditions
IP Rating
IP67
Discrete (Switched) Outputs
1 NPN/PNP Configurable
Output Saturation Voltage PNP Outputs
< 3 V at 100 mA
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Delay at Power-up (ms)
500
Temperature Effect (mm/°C)
0.02% of sensing distance/°C
Number of Pins
4
Adjustments
Teach Button
Analog Resolution/Discrete Repeatability
0.1% of distance (0.5 min)
Power Supply
10-30 V dc
Max Sensing Distance (mm)
1000
Minimum Sensing Distance (mm)
100
Quick Disconnect Type
M12 (Euro)
Connection
Pigtail QD
Indicator
LED(s)
Input/Output
Discrete
Device Type
Sensor
Cable Length (m)
0.15
Primary Housing Material
PBT
Max Measurement Range
>500 mm - <=1000 mm
Sensing Mode (General)
Proximity
Power
DC
Sensing Mode (Detailed)
Time of Flight
Housing Style
Barrel
PC Configurable
No
Sensing Beam
Ultrasonic
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Connection type
Pre-wired with 6" / 150mm PUR pigtail terminated with 4-pin Euro-style M12 connector
Degree of protection
IP67 NEMA 6
Emission frequency
224kHz
Product series / family name
U-GAGE series
Shape
Cylindrical smooth
Thread size
M30
Sub-range name
T30UX series
Sensing distance
10cm...1m
Digital outputs
1 x digital output (PNP/NPN transistor)
Main function
Sensor (Distance)
Functions
Ultrasonic distance sensor green LED (power ON) yellow LED (discrete output / mode) red LED (signal) TEACH mode
Mounting mode
Threaded mount
Compliant with standard(s)
CE cULus Listed
Order code / Manufacturer SKU
79997
Primary brand
Banner Engineering
Material
thermoplastic housing PUR connector PUR pigtail
Ambient air temperature for operation
-40...+70 °C
Protection functions
Short-circuit
Design
time-of-flight system extended temp. range (w/ compensation)
Operating mode
NO (Normally Open) NC (Normally Closed)
