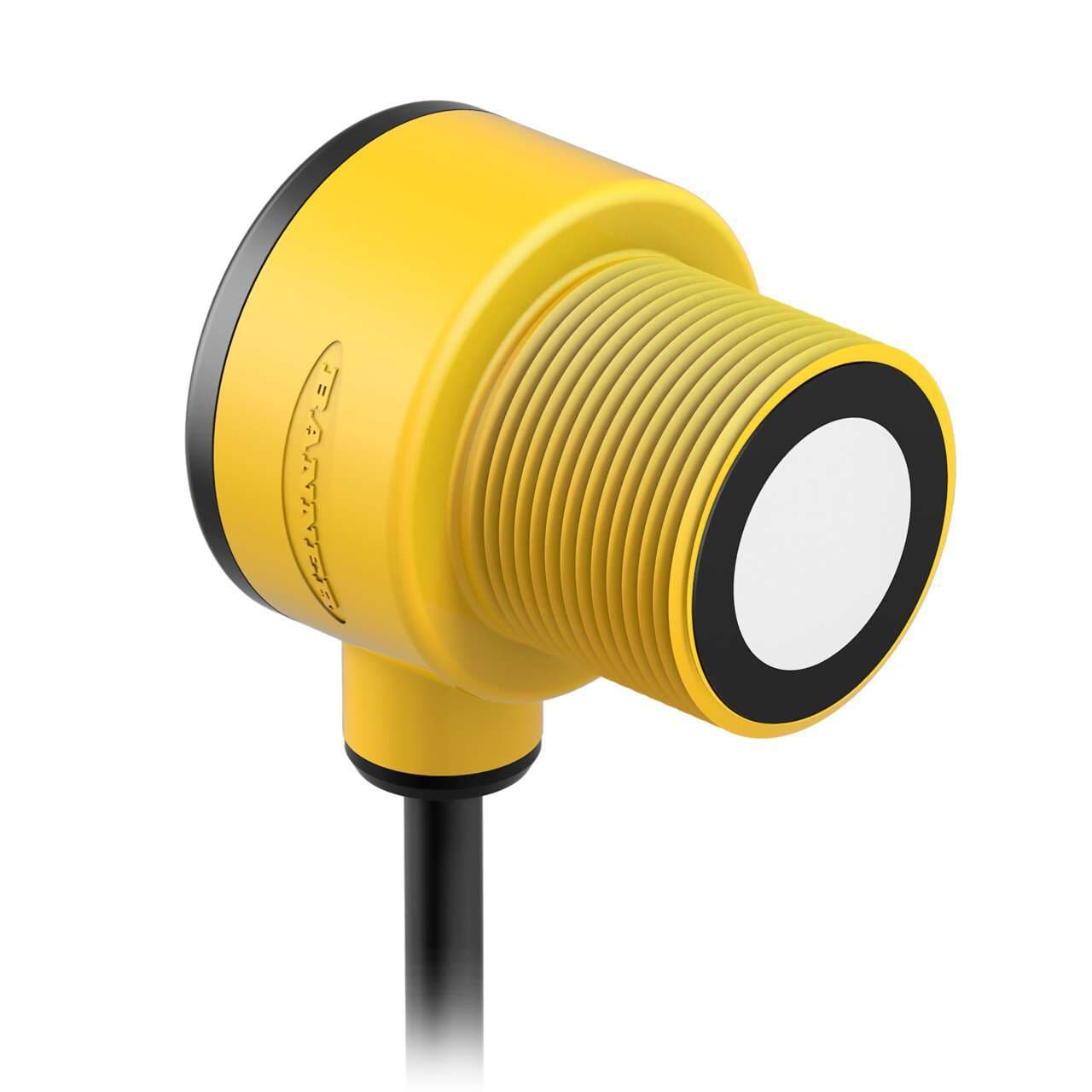

T30UINB Banner Ultrasonic Sensors

Product Details

• Weight
  217.72416 g
• Country Of Origin
  CN
• Wireless
  No
• RS-232
  No
• Profibus
  No
• SSI
  No
• 1-wire Serial Interface
  No
• RS-485
  No
• RS-422
  No
• PROFINET
  No
• IO Link
  No
• Feature: Chemical Resistant
  No
• Common Ethernet Protocol
  No
• Application: Ultrasonic
  Yes
• Feature: Timing (Hold/Delay)
  No
• Feature: Clear Object Detection
  Yes
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  90 mA
• Max Off-state Leakage Current (µA)
  10
Minimum Window Size (mm)
10
Ultrasonic Frequency (kHz)
128
Remote Teach and Laser Control Input Impedence
55 kΩ
Barrel Diameter (mm)
30
Discrete Output Hysteresis (mm)
2.5
Analog Linearity (mm)
+/- 0.5% of full-scale span
Minimum Response Time (ms)
96
Warm-up Time (minutes)
15
Max Op. Relative Humidity Non-Condensing (%)
100
Max Operating Temperature (°C)
70
Min Operating Temperature (°C)
-20
NEMA Rating
NEMA 6P
IP Rating
IP67
Discrete (Switched) Outputs
1 NPN
Output Protection
Protected against false pulse on power-up and continuous overload or short-circuit of outputs
Analog Current Output Rating
1 Ω to [(Vcc-7 V)/0.02 A] Ω
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Max Discrete (Switched) Output (mA)
100
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
5
Output Saturation Voltage NPN Outputs
< 1.0 V at 10 mA ; < 1.5 V at 100 mA
Temperature Effect (mm/°C)
0.2% of sensing distance/°C
Power Supply
12-24 V dc
Adjustments
Teach Button
Max Sensing Distance (mm)
2000
Minimum Sensing Distance (mm)
300
Quick Disconnect Type
No QD
Analog Resolution/Discrete Repeatability
+/- 0.25% of measured distance (1.0 min)
Analog Output Configuration
4-20 mA
Input/Output
Analog & Discrete
Indicator
LED(s)
Connection
Flying Leads
Primary Housing Material
PBT
Sensing Mode (Detailed)
Time of Flight
Housing Style
Barrel
Device Type
Sensor
Cable Length (m)
2
PC Configurable
No
Sensing Mode (General)
Proximity
Power
DC
Max Measurement Range
>1 m - <=20 m
Sensing Beam
Ultrasonic
Product series / family name
U-GAGE series
Design
time-of-flight system
Mounting mode
Threaded mount
Ambient air temperature for operation
-20...+70 °C
Main function
Sensor (Distance)
Emission frequency
128kHz
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Sensing distance
30cm...2m
Material
thermoplastic housing
Order code / Manufacturer SKU
55983
Sub-range name
T30U analog and discrete output series
Functions
Long-range ultrasonic distance sensor/transmitter green LED (power ON) yellow LED (discrete output / mode) red LED (signal) TEACH mode
Degree of protection
IP67 NEMA 6P
Primary brand
Banner Engineering
Thread size
M30
Shape
Cylindrical smooth
Analog outputs
1 x analog output (4-20mA)
Supply voltage (DC)
12Vdc-24Vdc
Digital outputs
1 x digital output (NPN transistor)
Protection functions
Overload Short-circuit
Compliant with standard(s)
CE
