T18RW3L W/30

Banner

Product Lifecycle: Active

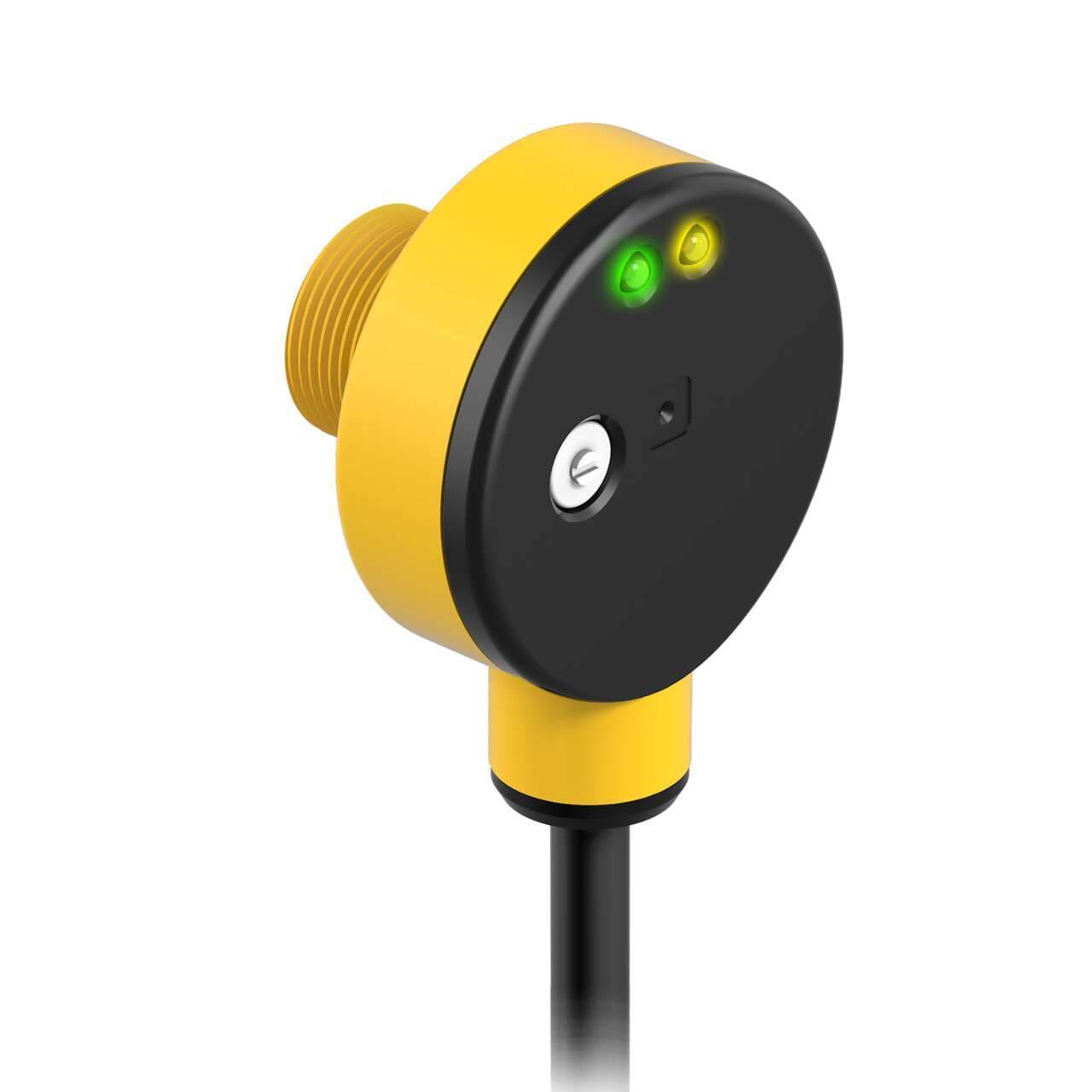

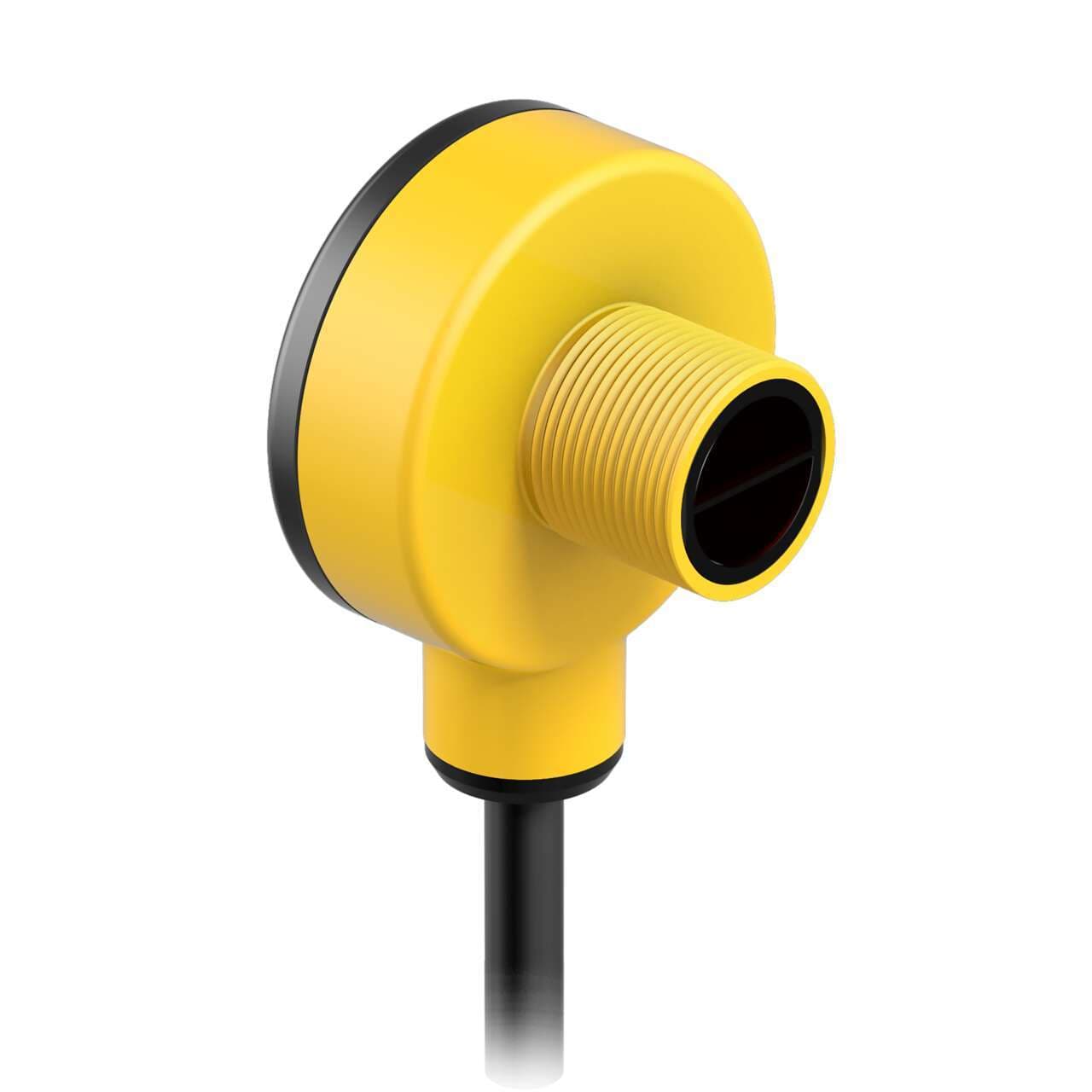

Banner Engineering T18RW3L W/30 is a photo-electric sensor from the T18 series designed in a retro-reflective mode with potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and has a diameter of 40mm. It is pre-wired with a 30ft / 9m cable terminated with bare end flying leads. The supply voltage ranges from 20Vac to 250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. It offers a threaded mount for installation, and it can operate within an ambient air temperature range of -40 to +70°C. The T18RW3L W/30 is protected to IP67, IP69K, and NEMA 6P standards, ensuring its durability in various environments. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (Solid-state AC output; SPST contact type) for connectivity. The sensing distance is up to 2m, and it utilizes infrared (IR) light with a wavelength of 950 nm. The response time is 16ms / 0.016 s, and it operates in a Dark-ON mode.

T18RW3L W/30

Banner Engineering T18RW3L W/30 is a photo-electric sensor from the T18 series designed in a retro-reflective mode with potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and has a diameter of 40mm. It is pre-wired with a 30ft / 9m cable terminated with bare end flying leads. The supply voltage ranges from 20Vac to 250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. It offers a threaded mount for installation, and it can operate within an ambient air temperature range of -40 to +70°C. The T18RW3L W/30 is protected to IP67, IP69K, and NEMA 6P standards, ensuring its durability in various environments. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (Solid-state AC output; SPST contact type) for connectivity. The sensing distance is up to 2m, and it utilizes infrared (IR) light with a wavelength of 950 nm. The response time is 16ms / 0.016 s, and it operates in a Dark-ON mode.

T18 AW3D/RW3D CABLE/PIGTAIL.pdf
T18 Series Sensors (AC Voltage) -- Datasheet.pdf
T18 AW3D/RW3D CABLE/PIGTAIL.stp

Product details

T18 AW3D/RW3D CABLE/PIGTAIL.pdf
T18 Series Sensors (AC Voltage) -- Datasheet.pdf
T18 AW3D/RW3D CABLE/PIGTAIL.stp
  • Feature: AudibleNo
  • IO LinkNo
  • Feature: Chemical ResistantYes
  • DeviceNetNo
  • Feature: Hazardous AreaNo
  • Feature: EncapsulatedYes
  • Feature: Timing (Hold/Delay)No
  • Feature: Ecolab CertifiedYes
  • Opposed Mode Emitter/ReceiverN/A
  • Feature: Washdown RatedYes
  • IndicatorLEDs
  • Lens MaterialAcrylic
  • Barrel Diameter (mm)18
  • AdjustmentsPotentiometer
  • Max Op. Relative Humidity [%]90% @ 50°C
  • IP RatingIP67, IP69
  • NEMA RatingNEMA 6P
  • Special Feature: Water DetectionNo
  • Number of Pins3
  • Repeatability (µs)4000
  • Delay at Power-up (ms)100
  • Special Feature: Remote TeachNo
  • OperationDark Operate
  • Quick Disconnect TypeNo QD
  • Special Feature: Intrinsically SafeNo
  • ConnectionCable
  • Max Op. Temp. (°C)70
  • Min Op. Temp. (°C)-40
  • Output response time (ms)16
  • Power Supply/Supply Voltage20-250 V ac
  • Sensing BeamInfrared LED
  • OutputsSolid-State AC Switch
  • Sensing Mode (Detailed)Non-Polarized
  • PowerAC
  • Housing StyleBarrel
  • Cable Length (m)9
  • Sensing Mode (General)Retroreflective
  • Max Sensing Distance (mm)2000
  • Input/OutputSolid-State AC Switch
  • Primary Housing MaterialThermoplastic
