SP250GYPQ Banner Signal Beacons
Part#:SP250GYPQ
Manufacturer:Banner
Category:Signal Beacons
Alt. Part#:13476
Product Lifecycle:Active
Get a quick Quote!
EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 15-30 V dc; Housing: Polycarbonate; IP65; Input: PNP; Colors: Green Yellow; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP250GYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 566.99 g
- Country Of Origin US
- Wireless No
- Pro-Editor Compatible (Discrete) No
- IO Link No
- Application: Traffic Light Yes
- Feature: Quick Disconnect Yes
- Indication Intensity High Brightness & Daylight Visible
- Multi-Color Device Simultaneous Colors On
- Modbus RTU No
- Feature: Chemical Resistant No
- Feature: Audible No
- Min Op. Temperature (°C) -40
- Max Op. Temperature (°C) 50
- Feature: Hazardous Area No
- Environmental Rating IP65
- Physical Dimensions (LxWxH or DxH mm) 192.8 x 87.6 x 109.6
- Max Input Response Time (ms) 10
- Max Current Color (mA) 120
- Number of Input Pins/Conductors 4
- Input Type PNP
- Supply Voltage 15-30 V dc
- Color Option 2 Yellow
- Color 1 - Wavelength/Color Temp/Coordinates 528 nm
- Lumens Color 1 57.0
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Animation Option 1 Solid On
- Quick Disconnect Type M12 (Euro)
- Lumens Color 2 14.0
- Connection Integral QD
- Color Technology Standard LED
- Color Option 1 Green
- Mounting Thread No Thread
- Primary Housing Material Polycarbonate
- Power Source DC
- Power DC
- Housing Style Flat Mount - Signal Light
- Indication Yes
- Product Size (mm) Other
- Number of Colors / Segments 2
- Color Input Control Individual (One wire/color, same number of colors as input wires)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
SP250GYPQ Description

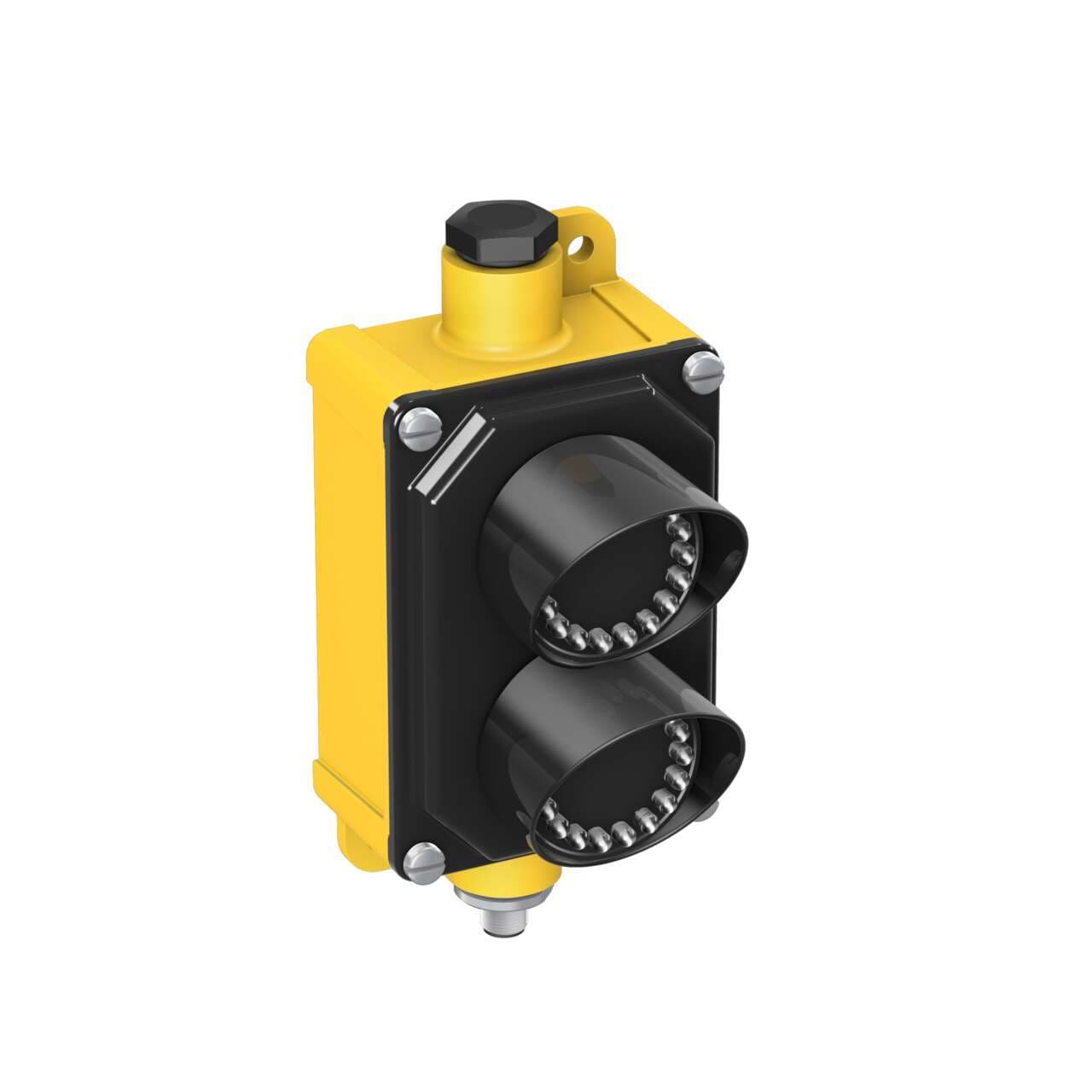

Banner Engineering SP250GYPQ is a traffic light from the EZ-LIGHT series, featuring a 2-tiers 2-color G+Y color pattern LED illumination designed for LED traffic signal light applications. This part is constructed with a polycarbonate (PC) base and comes in a black/yellow housing. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The SP250GYPQ operates on a supply voltage of 15Vdc-30Vdc (24Vdc nom.) and can be mounted on surfaces or walls. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP65. The shape of the part is specifically designed to resemble a traffic light, with a current consumption of 120mA. It also features 2 x digital inputs (15-30Vdc; PNP) for color control.
