SP250RYPQ Banner Signal Beacons

SP250RYPQ on Powermatic Associates
Banner

Part#:SP250RYPQ

Manufacturer:Banner

Alt. Part#:14641

Product Lifecycle:Active

Get a quick Quote!

EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 15-30 V dc; Housing: Polycarbonate; IP65; Input: PNP; Colors: Red Yellow; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SP250RYPQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    589.6696 g
  • Country Of Origin
    US
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Application: Traffic Light
    Yes
  • Feature: Quick Disconnect
    Yes
  • Multi-Color Device
    Simultaneous Colors On
  • Feature: Audible
    No
  • Indication Intensity
    High Brightness & Daylight Visible
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • Max Op. Temperature (°C)
    50
  • Min Op. Temperature (°C)
    -40
  • Environmental Rating
    IP65
  • Input Type
    PNP
  • Physical Dimensions (LxWxH or DxH mm)
    192.8 x 87.6 x 109.6
  • Max Input Response Time (ms)
    10
  • Number of Input Pins/Conductors
    4
  • Max Current Color (mA)
    120
  • Color 2 - Wavelength/Color Temp/Coordinates
    590 nm
  • Supply Voltage
    15-30 V dc
  • Lumens Color 2
    14.0
  • Color Option 2
    Yellow
  • Quick Disconnect Type
    M12 (Euro)
  • Lumens Color 1
    20.0
  • Color 1 - Wavelength/Color Temp/Coordinates
    625 nm
  • Animation Option 1
    Solid On
  • Connection
    Integral QD
  • Color Option 1
    Red
  • Color Technology
    Standard LED
  • Number of Colors / Segments
    2
  • Housing Style
    Flat Mount - Signal Light
  • Power Source
    DC
  • Power
    DC
  • Product Size (mm)
    Other
  • Primary Housing Material
    Polycarbonate
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Indication
    Yes
  • Mounting Thread
    No Thread

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SP250RYPQ Description

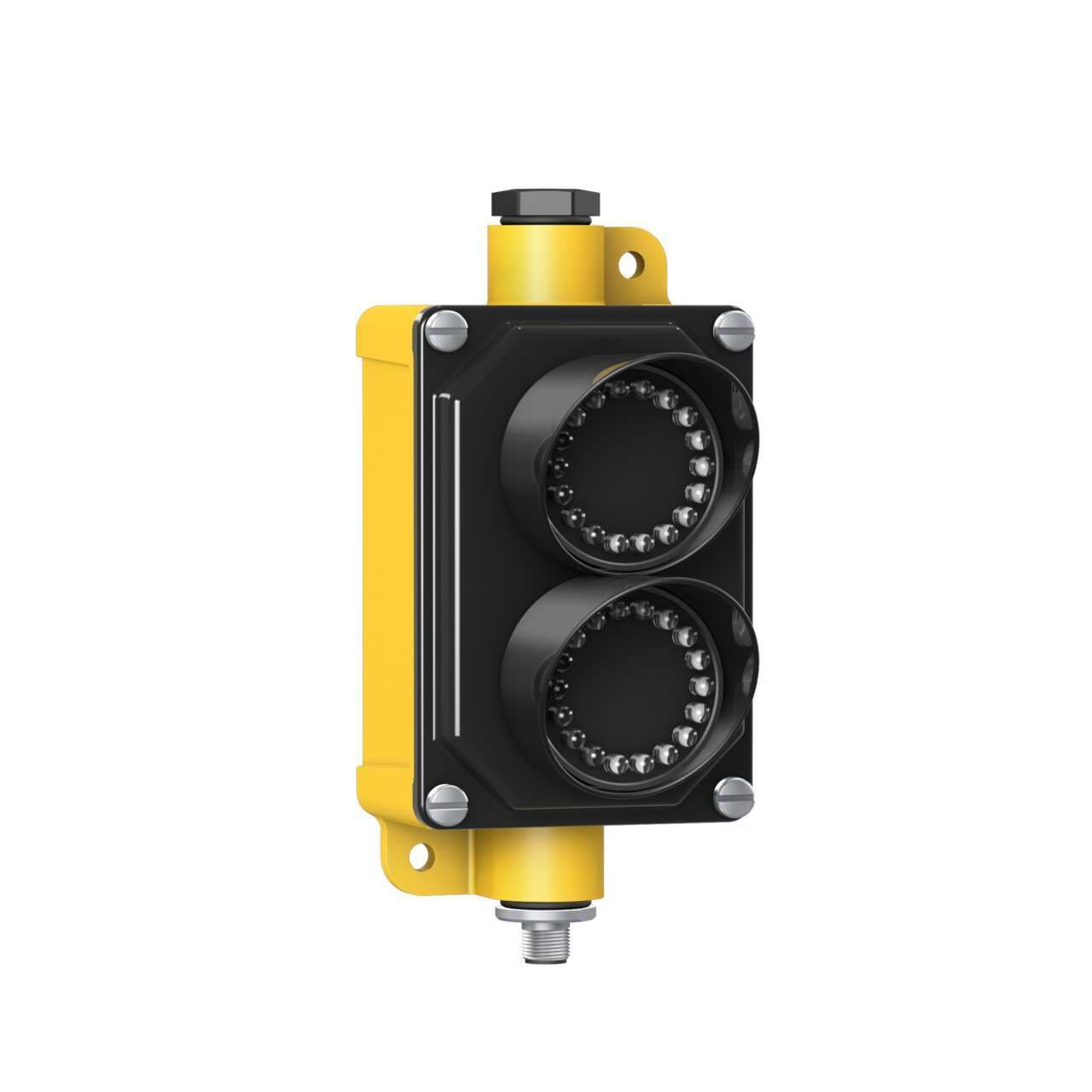

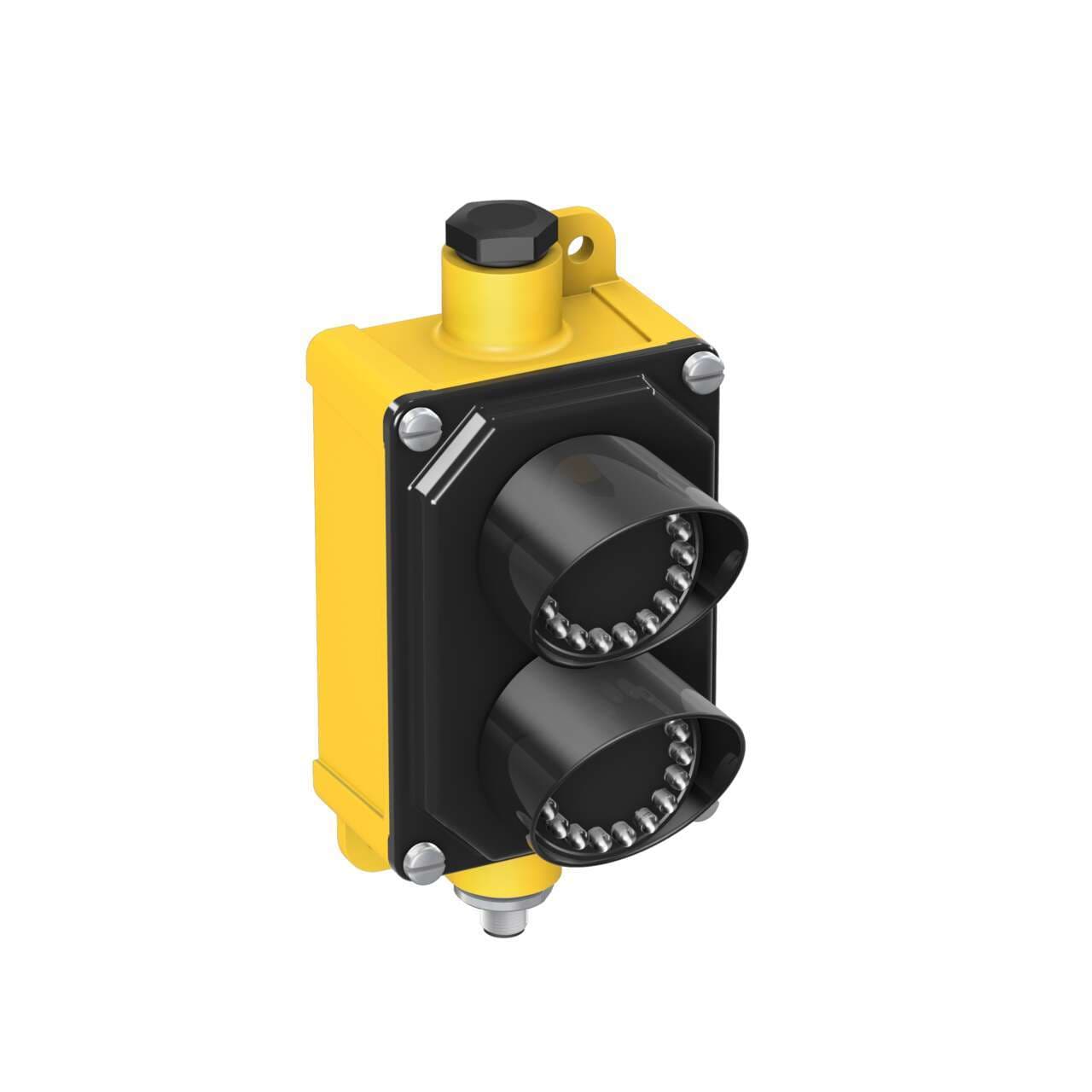

Banner Engineering SP250RYPQ, part of the EZ-LIGHT series, is a traffic light designed with a 2-tiers 2-color R+Y color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The housing is black and yellow, supporting a supply voltage range of 15Vdc-30Vdc (24Vdc nom.). It offers flexible mounting options, including surface and wall mounting. The SP250RYPQ operates within an ambient air temperature range of -40°C to +50°C and is rated with a degree of protection of IP65, indicating dust tightness and protection against water jets. The shape is specifically designed to resemble a traffic light, with a current consumption of 120mA. It also includes 2 x digital inputs (15-30Vdc; PNP) for color control.

Related documents SP250RYPQ Specs

SP250RYPQ 148879.pdf
