SP250GRA120 Banner Signal Beacons

Name: SP250GRA120
Brand: Banner
Price: 255 USD
Availability: BackOrder

Part#:SP250GRA120

Manufacturer:Banner

Alt. Part#:13141

Product Lifecycle:Active

Get a quick Quote!

EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 85-130 V ac; Housing: Polycarbonate; IP65; Colors: Green Red; Field Wireable

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SP250GRA120 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
568.804368 g
Country Of Origin
US
Pro-Editor Compatible (Discrete)
No
Modbus RTU
No
Multi-Color Device
Simultaneous Colors On
Wireless
No
IO Link
No
Feature: Quick Disconnect
No
Application: Traffic Light
Yes
Indication Intensity
High Brightness & Daylight Visible
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
50
Environmental Rating
IP65
Physical Dimensions (LxWxH or DxH mm)
176.4 x 87.6 x 109.6
Max Input Response Time (ms)
10
Input Type
AC
Supply Voltage
85-130 V ac/75-120 V dc

Max Current Color (mA)

Number of Input Pins/Conductors

Color 2 - Wavelength/Color Temp/Coordinates

625 nm

Lumens Color 2

20.0

Color Option 2

Red

Color Option 1

Green

Lumens Color 1

57.0

Color 1 - Wavelength/Color Temp/Coordinates

528 nm

Connection

Terminal

Animation Option 1

Solid On

Color Technology

Standard LED

Number of Colors / Segments

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Product Size (mm)

Other

Mounting Thread

No Thread

Indication

Yes

Primary Housing Material

Polycarbonate

Housing Style

Flat Mount - Signal Light

Power Source

DC or AC

Power

DC or AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SP250GRA120 Description

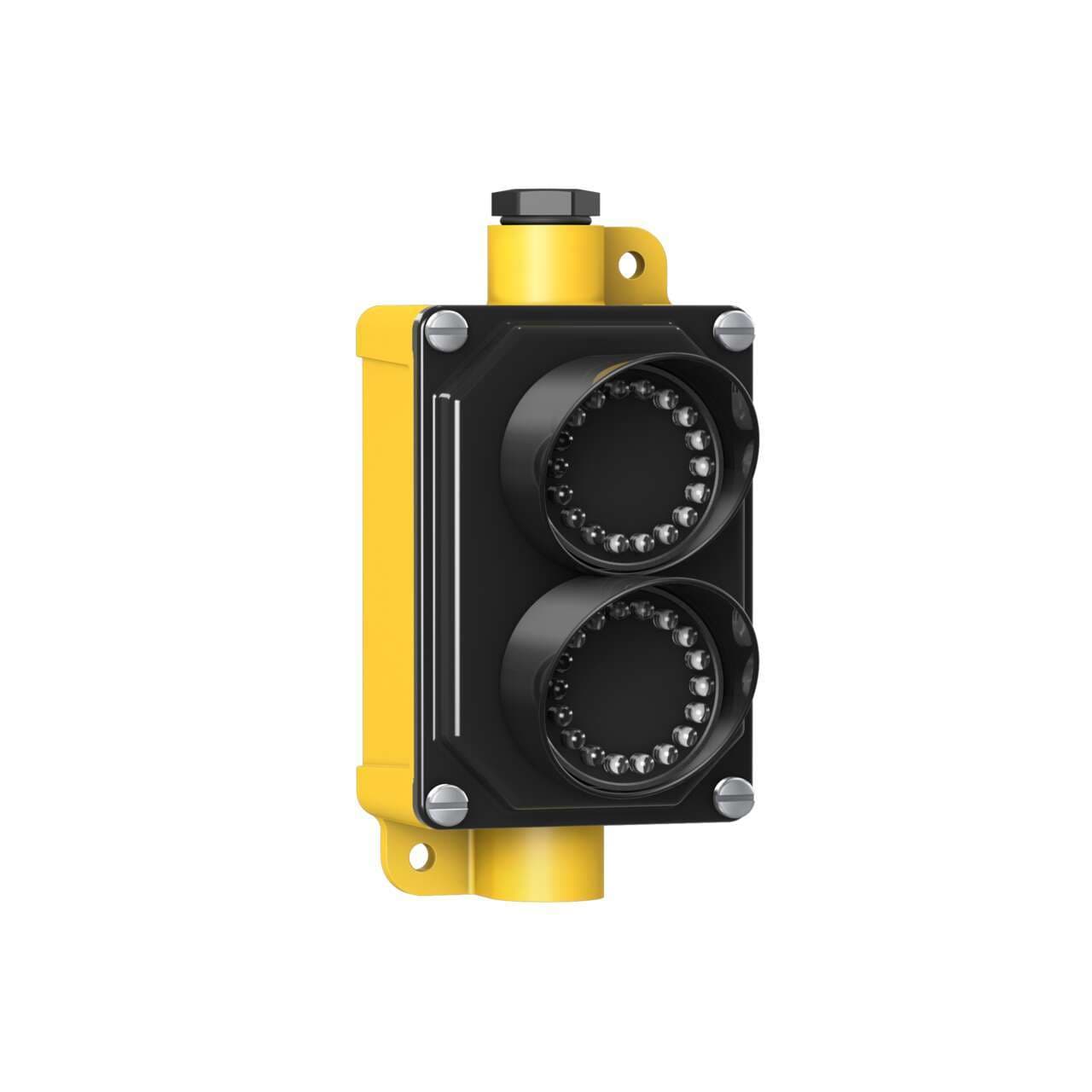

Banner Engineering SP250GRA120, part of the EZ-LIGHT series, is a traffic light designed with a 2-tiers 2-color G+R color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and a black/yellow housing. It offers screw-clamp terminal connection for ease of installation. The SP250GRA120 operates on a supply voltage range of 85Vac-130Vac (with 100Vac, 110Vac, and 120Vac nominal) for AC and 75Vdc-120Vdc (110Vdc nominal) for DC, making it versatile for various power setups. It supports surface or wall mounting modes and can operate within an ambient air temperature range of -40°C to +50°C. With an IP65 degree of protection, it is safeguarded against dust and low-pressure water jets from any direction. The shape is specifically designed for traffic light applications, and it has a current consumption of 16mA. Additionally, it includes 2 x digital inputs (85-130Vac / 75-120Vdc) for color control, enhancing its functionality in traffic management systems.

$255.00

Request a quote, and we will send availability within minutes.

Select Qty:

$255.00

$255.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
