SM2A31RPD W/30
Banner
Product Lifecycle: Active

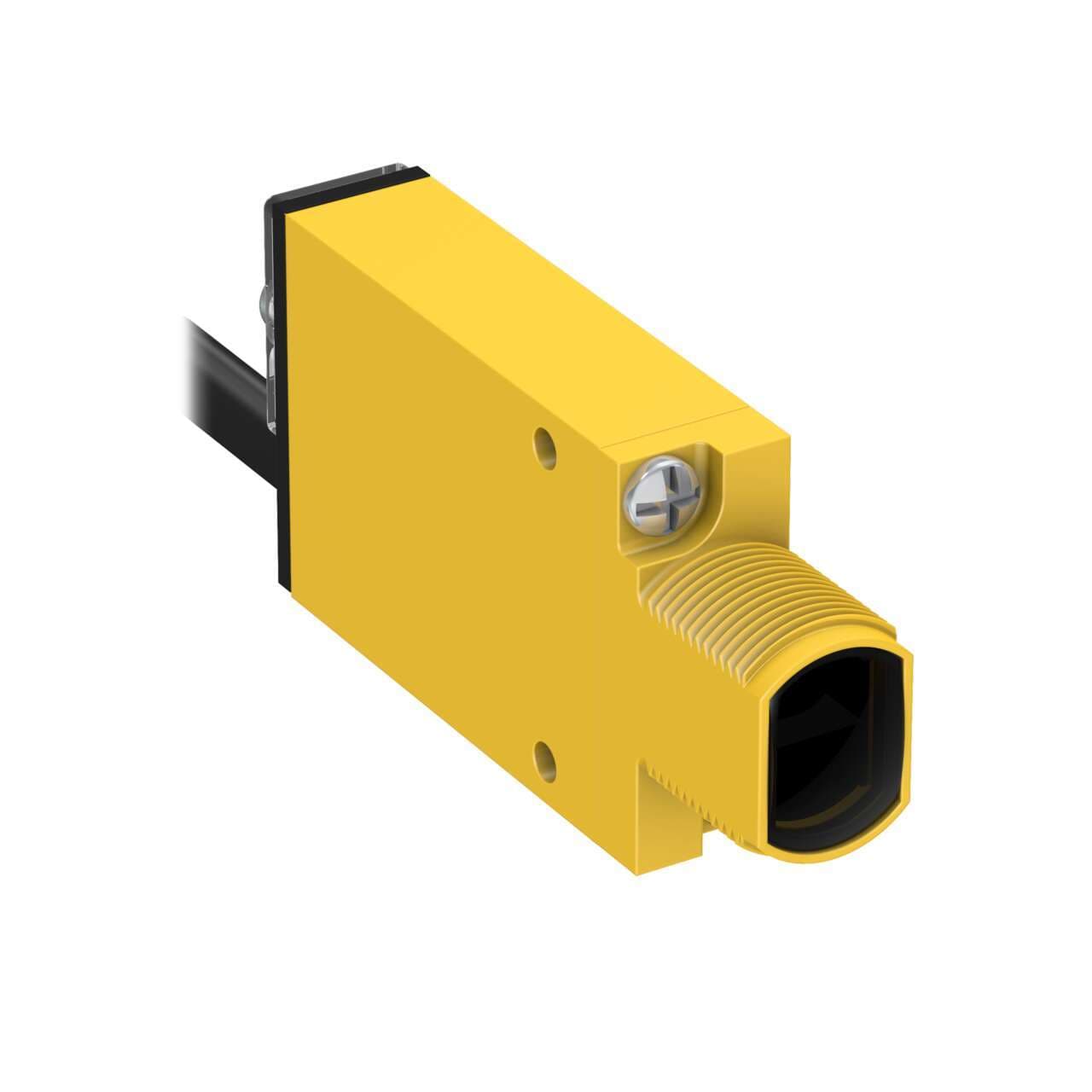

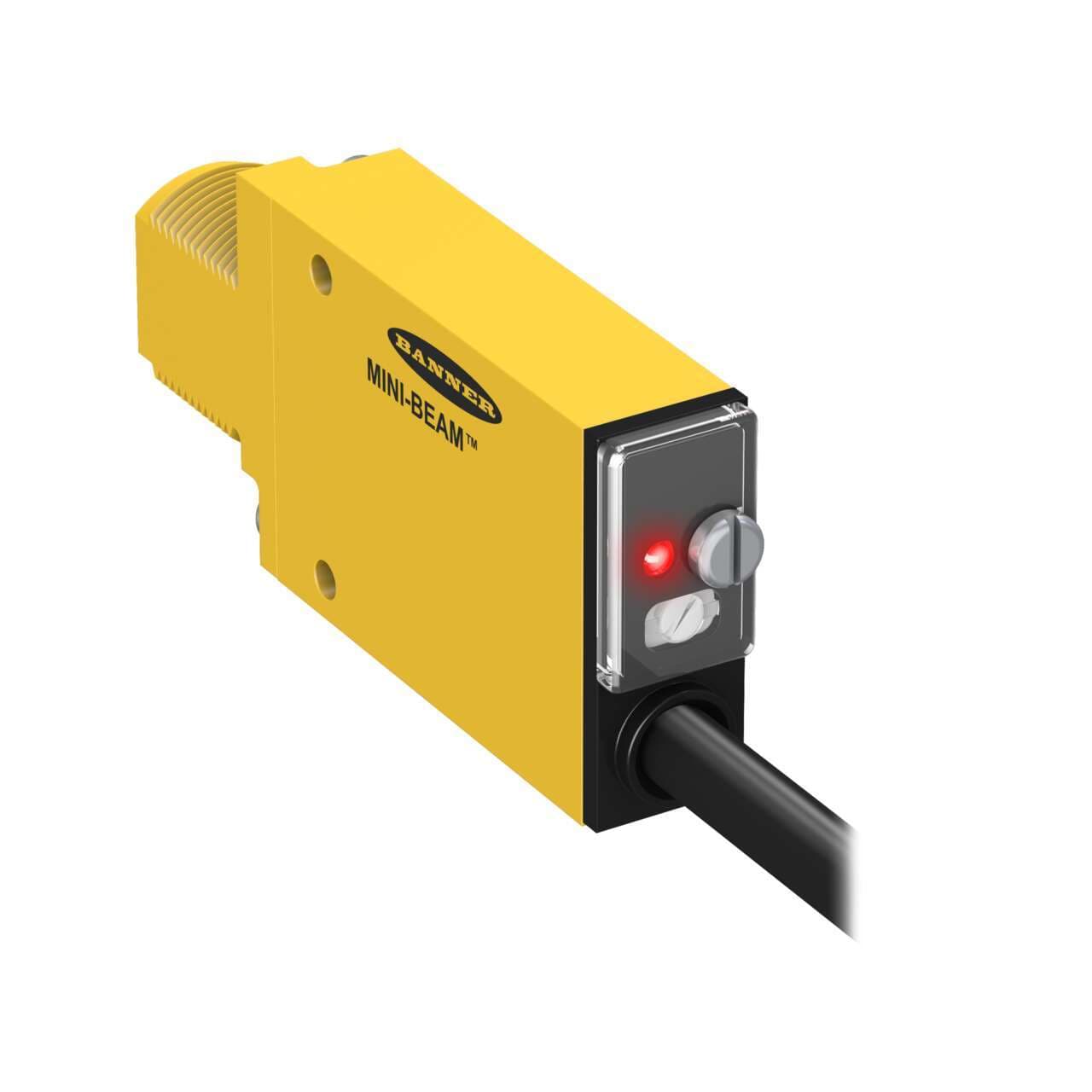

Banner Engineering SM2A31RPD W/30 is a photo-electric sensor designed for through-beam system applications with opposed mode potentiometer adjustment. This sensor, part of the SM2A312 series, features a thermoplastic housing with an acrylic lens and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads. It operates on a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) and can be mounted using an M18 threaded mount. The sensor operates within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. Its rectangular shape incorporates 1 x digital output (Solid-state AC output; SPST contact type) with a sensing distance of 300mm. The sensor emits visible red light with a wavelength of 650 nm and has a response time of 2ms / 0.002 s. It supports both Light-ON and Dark-ON operating modes.
![SM2A31RPD W/30](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Ff9c1a071-c7d4-442d-bdee-818ec2c3587d.jpeg&w=3840&q=75)
Banner Engineering SM2A31RPD W/30 is a photo-electric sensor designed for through-beam system applications with opposed mode potentiometer adjustment. This sensor, part of the SM2A312 series, features a thermoplastic housing with an acrylic lens and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads. It operates on a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) and can be mounted using an M18 threaded mount. The sensor operates within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. Its rectangular shape incorporates 1 x digital output (Solid-state AC output; SPST contact type) with a sensing distance of 300mm. The sensor emits visible red light with a wavelength of 650 nm and has a response time of 2ms / 0.002 s. It supports both Light-ON and Dark-ON operating modes.
- IO LinkNo
- Feature: EncapsulatedYes
- DeviceNetNo
- Feature: Clear Object DetectionYes
- AdjustmentsPotentiometer
- NEMA RatingNEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Feature: AudibleNo
- Feature: Chemical ResistantNo
- Feature: Hazardous AreaNo
- Feature: Timing (Hold/Delay)No
- Opposed Mode Emitter/ReceiverReceiver
- IndicatorLEDs
- Barrel Diameter (mm)18
- Lens MaterialAcrylic
- Max Op. Relative Humidity [%]90% @ 50°C
- Number of Pins2
- IP RatingIP67
- Repeatability (µs)300
- Delay at Power-up (ms)300
- Sensing Beam Wavelength650
- Special Feature: Water DetectionNo
- Special Feature: Intrinsically SafeNo
- Special Feature: Remote TeachNo
- Output response time (ms)2 ON/1 OFF
- Max Op. Temp. (°C)70
- OperationLight/Dark Operate
- Min Op. Temp. (°C)-20
- Quick Disconnect TypeNo QD
- ConnectionCable
- Power Supply/Supply Voltage24-240 V ac
- OutputsSolid-State AC Switch
- Cable Length (m)9
- PowerAC
- Housing StyleRectangular w/M18 Mount
- Input/OutputSolid-State AC Switch
- Sensing BeamVisible Red LED
- Sensing Mode (General)Opposed
- Max Sensing Distance (mm)300
- Primary Housing MaterialThermoplastic
- Sensing Mode (Detailed)Receiver
