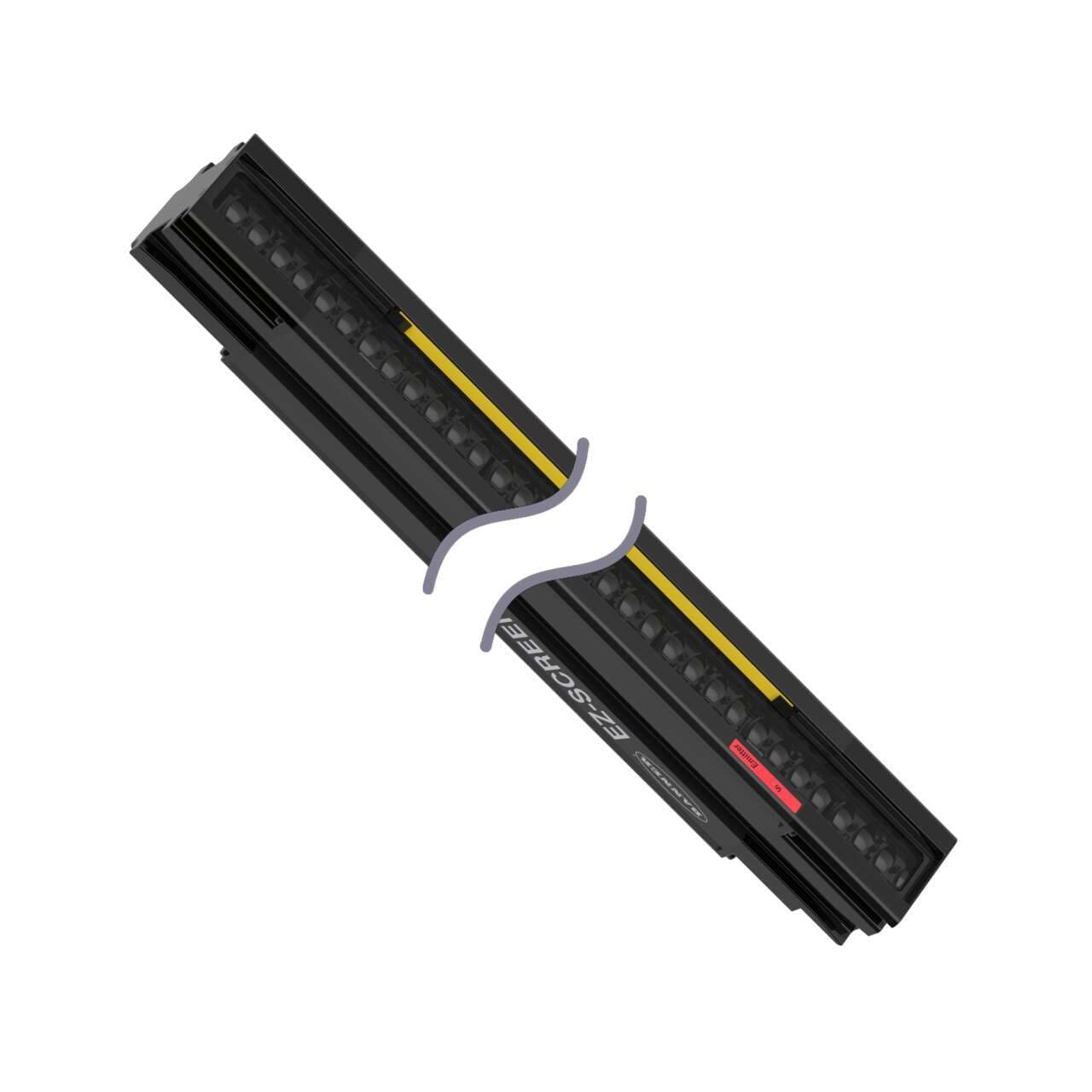

SLLCE23-910P8 Banner Safety Light Curtains

Banner Engineering SLLCE23-910P8 is a safety light curtain from the LS series type 4 safety light curtains, designed with a cascadable feature. This part functions as a safety light curtain emitter alone, constructed with an aluminium housing, acrylic lens, and zinc end caps. It comes pre-wired with a 300mm pigtail terminated with an 8-pin Euro-style M12 connector. The protective height is 910mm, and it has a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The degree of protection offered is IP65 and IP67, ensuring durability in various environments. The net dimensions are 36mm in width, 914mm in height, and 45mm in depth. The light curtain features a 23mm beam spacing/pitch for hand detection, with a sensing distance ranging from 10cm to 12m. It emits infrared light with a wavelength of 850 nm. The digital outputs include 2 x 24Vdc, 500mA sourcing redundant OSSD solid-state outputs, and 1 x 24Vdc sourcing/PNP transistor, 70mA for emitter fault indication. Additionally, it has 1 x digital input (10Vdc-30Vdc; 30mA) for EDM input and 1 x digital input (10Vdc-30Vdc; 30mA) for scan code input, with a response time of 15.9ms.
