SLE10B6VYQ Banner Retroreflective Sensors

SLE10B6VYQ on Powermatic Associates
Banner

Part#:SLE10B6VYQ

Alt. Part#:60383

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

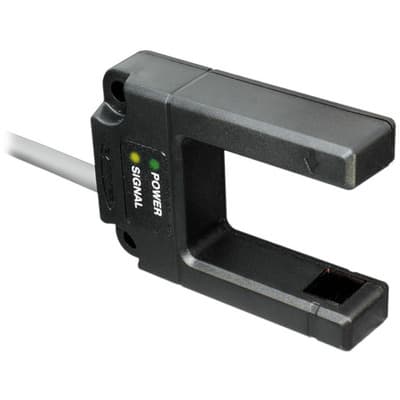

SLE10 EXPERT Series: Teach Mode Slot Sensor; Slot width: 10 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; M12 Integral QD

Product Details

  • Weight
    99.79024 g
  • Country Of Origin
    CN
  • Operation
    Light/Dark Operate
  • Delay at Power-up (ms)
    1000
  • Lens Material
    Acrylic
  • Adjustments
    Teach Button
  • Repeatability (µs)
    75
  • Slot Overall Depth (mm)
    52
  • Power Supply/Supply Voltage
    10-30 V dc
  • Number of Pins
    5
  • Minimum Object Detection (mm)
    1
  • Outputs
    Bipolar (NPN & PNP)
  • Slot Depth/Array Length (mm)
    45
  • Connection
    Integral QD
  • Quick Disconnect Type
    M12 (Euro)
  • Max Sensing Range (mm)
    10
  • Primary Housing Material
    Thermoplastic
  • Power
    DC
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • NEMA Rating
    NEMA 6
  • Minimum Object Detection [mm]
    1
  • IP Rating
    IP67
  • Special Feature: Remote Teach
    Yes
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Max Op. Temperature (°C)
    70
  • Indicator
    LEDs
  • Min Op. Temperature (°C)
    -20
  • Output response time (ms)
    0.15
  • Housing Style
    Slot
  • Functions
    Programmable photo-electric slot / optical fork sensor green LED (power ON) yellow LED (output state) TEACH mode
  • Material
    thermoplastic housing Acrylic lns.
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Response time
    0.15ms / 0.00015 s
  • Order code / Manufacturer SKU
    60383
  • Primary brand
    Banner Engineering
  • Shape
    Slot
  • Ambient air temperature for operation
    -20...+70 °C
  • Main function
    Sensor (Photo-electric)
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Operating mode
    Light-ON Dark-ON
  • Net Width (mm)
    (passageway) 10 mm
  • Sub-range name
    SLE10 Expert series
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Degree of protection
    IP67 NEMA 6

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLE10B6VYQ on Powermatic Associates is $166.00. Order now.

About the product

Banner Engineering SLE10B6VYQ is a programmable photo-electric slot/optical fork sensor from the SLE10 Expert series. It features a thermoplastic housing with an acrylic lens and is designed with TEACH mode for enhanced functionality. This sensor is pre-equipped with a 5-pin Euro-style M12 connector for easy installation. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The SLE10B6VYQ can function in ambient air temperatures ranging from -20 to +70 degrees Celsius and offers a degree of protection rated at IP67 NEMA 6, making it suitable for various environmental conditions. Its slot (U-shaped) design has a net width of 10 mm for the passageway. The sensor provides one digital output (PNP/NPN transistor), has a sensing distance of 10mm, and boasts a rapid response time of 0.15ms / 0.00015 s. It supports both Light-ON and Dark-ON operating modes.
