SL10VB6VY Banner Retroreflective Sensors

SL10VB6VY on Powermatic Associates
Banner

Part#:SL10VB6VY

Alt. Part#:60367

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

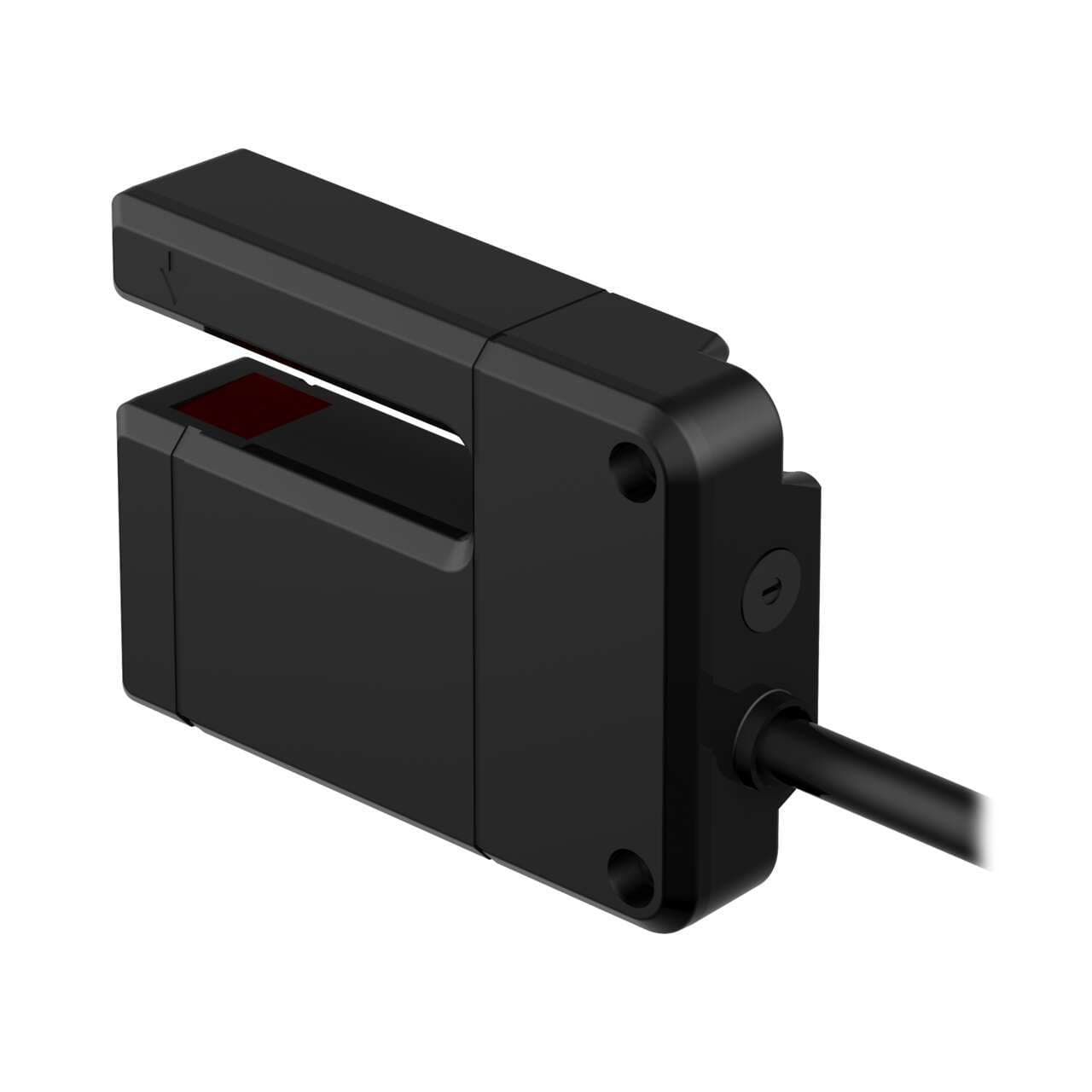

SL10 Series: Slot Sensor; Slot width: 10 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable

Product Details

  • Weight
    181.4368 g
  • Country Of Origin
    CN
  • Minimum Object Detection [mm]
    2
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Min Op. Temperature (°C)
    -40
  • IP Rating
    IP67
  • NEMA Rating
    NEMA 6
  • Max Op. Temperature (°C)
    70
  • Operation
    Light/Dark Operate
  • Special Feature: Remote Teach
    No
  • Slot Overall Depth (mm)
    72
  • Repeatability (µs)
    75
  • Number of Pins
    5
  • Minimum Object Detection (mm)
    2
  • Indicator
    LEDs
  • Outputs
    Bipolar (NPN & PNP)
  • Lens Material
    Acrylic
  • Adjustments
    Potentiometer
  • Output response time (ms)
    0.3
  • Power Supply/Supply Voltage
    10-30 V dc
  • Power
    DC
  • Quick Disconnect Type
    No QD
  • Connection
    Cable
  • Slot Depth/Array Length (mm)
    45
  • Max Sensing Range (mm)
    10
  • Housing Style
    Slot
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Primary Housing Material
    Thermoplastic
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SL10VB6VY on Powermatic Associates is $149.00. Order now.

About the product

Banner Engineering SL10VB6VY is a photo-electric slot / optical fork sensor from the SL10 series, featuring a potentiometer adjustment for precise control. This sensor is housed in a thermoplastic material with an acrylic lens, ensuring durability and clarity. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. Designed to operate on a supply voltage of 10Vdc-30Vdc, with nominal values at 12Vdc and 24Vdc, it can function within an ambient air temperature range of -40 to +70°C. The SL10VB6VY offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. Its U-shaped slot design has a passageway width of 10mm and a net width of 52mm, with a net height of 72mm and a depth of 19mm. This sensor features a single digital output (PNP/NPN transistor), capable of sensing distances up to 10mm. It emits a visible red light with a wavelength of 680 nm and boasts a quick response time of 0.3ms / 0.0003 s. The operating modes available are Light-ON and Dark-ON, providing versatility for various applications.

SL10VB6VY Related Documents

58341.pdf

Similar products from: Banner Retroreflective Sensors

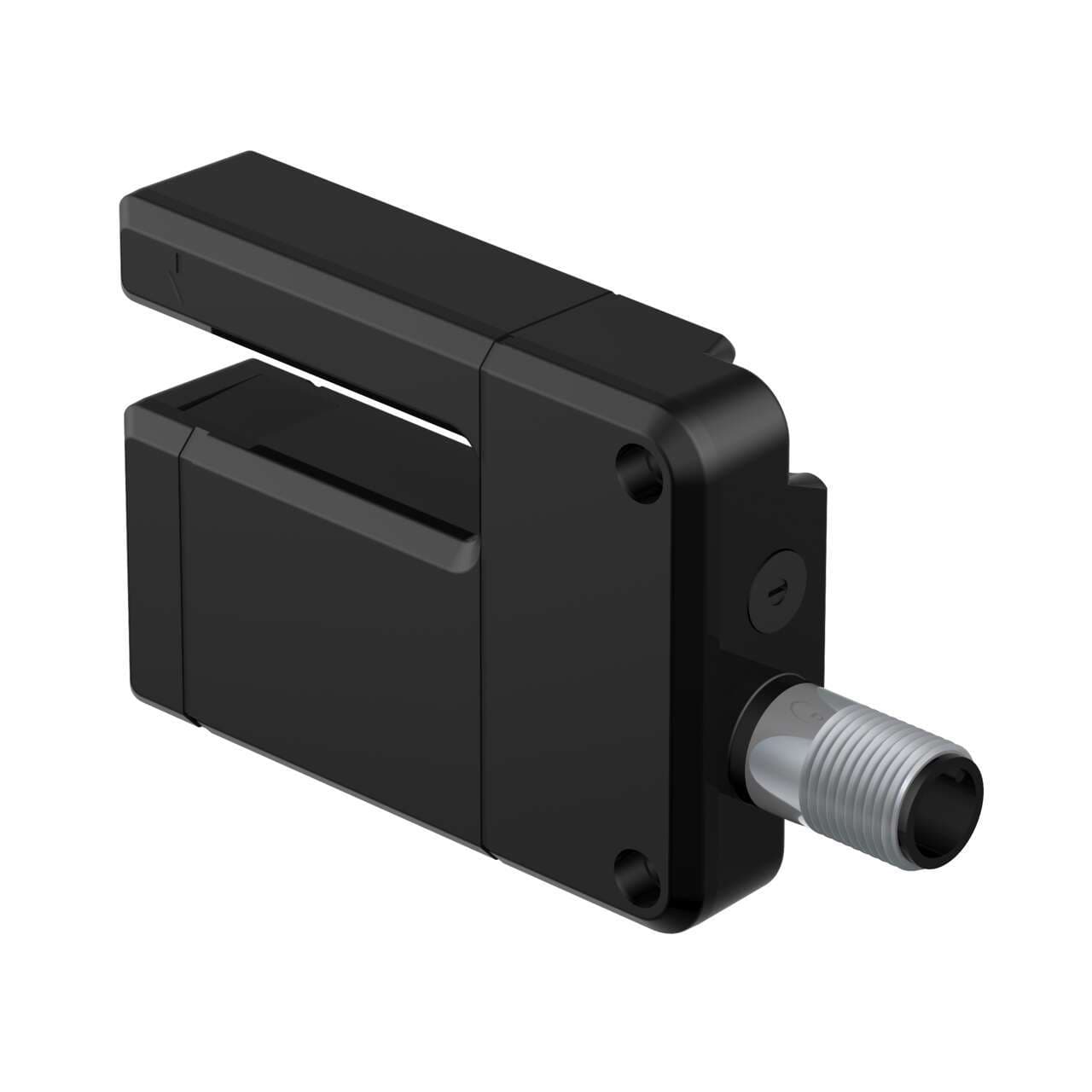

SL10VB6VQ on Powermatic Associates
