SL10VB6VQ5
Banner
Product Lifecycle: Active

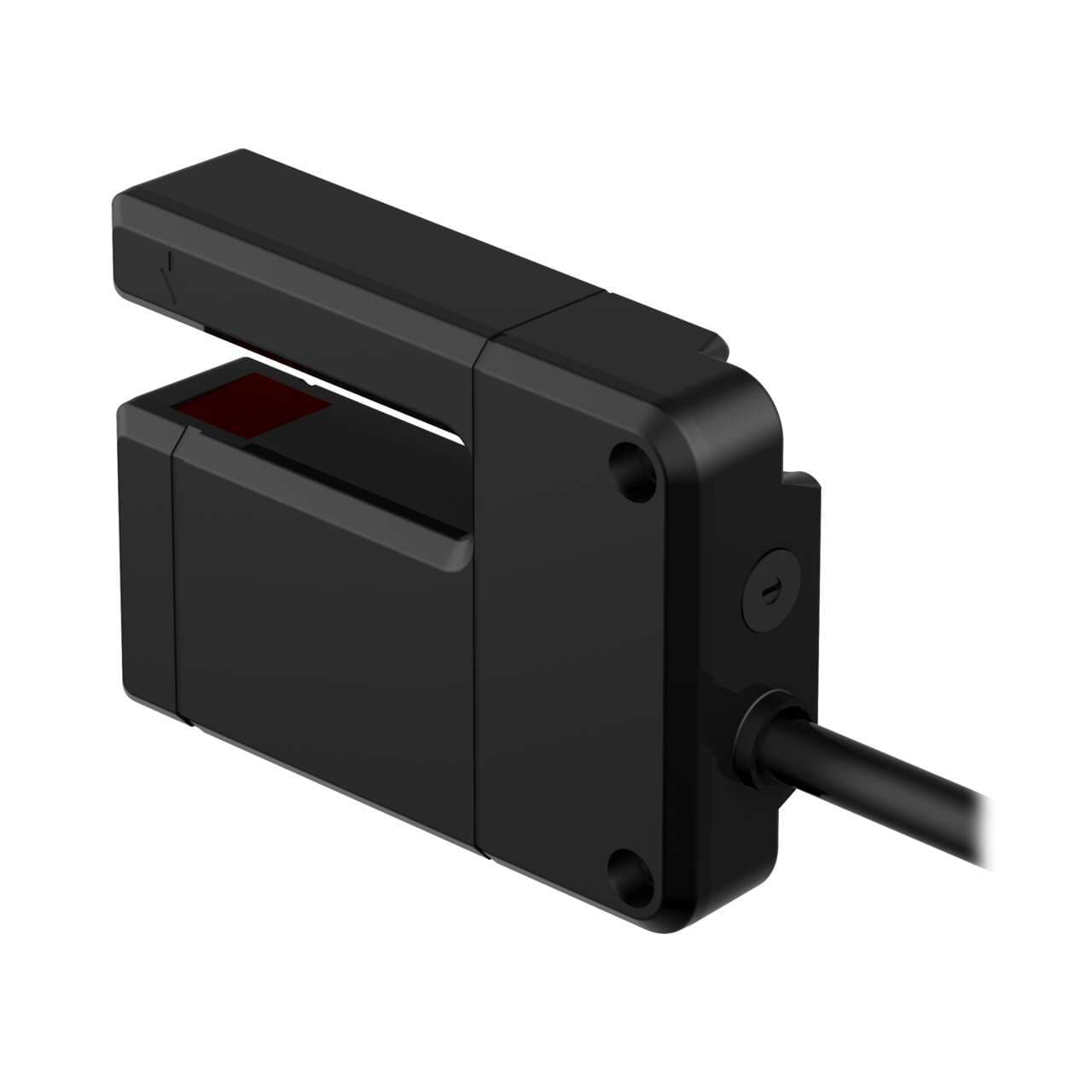

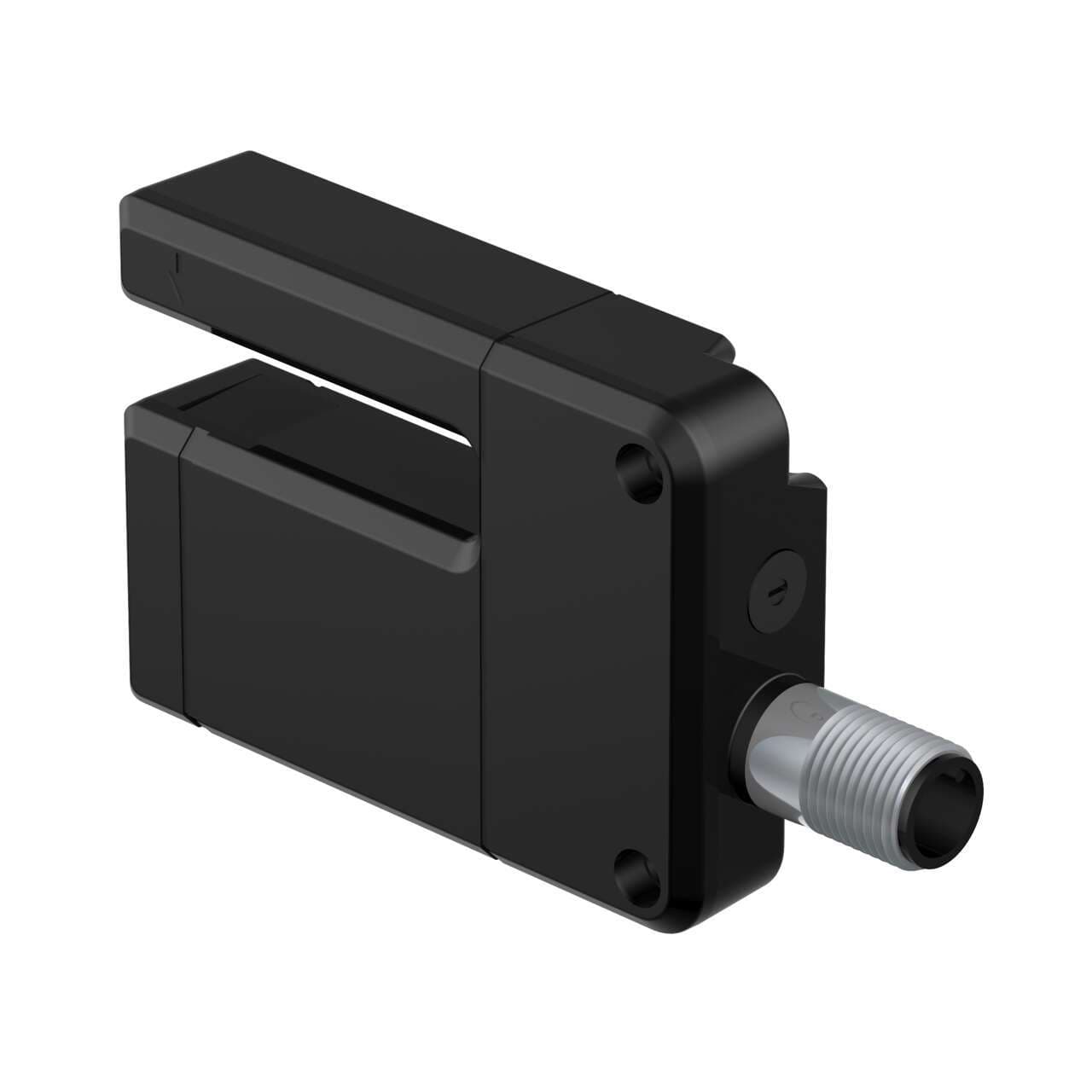

Banner Engineering SL10VB6VQ5 is a photo-electric slot / optical fork sensor from the SL10 series, featuring a potentiometer adjustment for precise control. This sensor is housed in a durable thermoplastic with an acrylic lens and a PVC connector, ensuring longevity and resilience in various environments. It is pre-wired with a 6-inch (150mm) pigtail that terminates with a 5-pin Euro-style M12 connector, facilitating easy and secure connections. Designed to operate on a supply voltage of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, it can function within an ambient air temperature range of -40 to +70 degrees Celsius. The SL10VB6VQ5 offers a high degree of protection with an IP67 NEMA 6 rating, making it suitable for challenging conditions. Its U-shaped slot design has a passageway width of 10mm and a net width of 52mm, with a net height of 72mm and a depth of 19mm. This sensor features a single digital output (PNP/NPN transistor), a sensing distance of 10mm, and a quick response time of 1ms (0.001 s). It operates with visible red light at a wavelength of 680 nm and includes both Light-ON and Dark-ON operating modes, providing versatile detection capabilities.
![SL10VB6VQ5](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Ff9137059-1c58-433e-adf2-fcfefc9fc7fe.jpeg&w=3840&q=75)
Banner Engineering SL10VB6VQ5 is a photo-electric slot / optical fork sensor from the SL10 series, featuring a potentiometer adjustment for precise control. This sensor is housed in a durable thermoplastic with an acrylic lens and a PVC connector, ensuring longevity and resilience in various environments. It is pre-wired with a 6-inch (150mm) pigtail that terminates with a 5-pin Euro-style M12 connector, facilitating easy and secure connections. Designed to operate on a supply voltage of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, it can function within an ambient air temperature range of -40 to +70 degrees Celsius. The SL10VB6VQ5 offers a high degree of protection with an IP67 NEMA 6 rating, making it suitable for challenging conditions. Its U-shaped slot design has a passageway width of 10mm and a net width of 52mm, with a net height of 72mm and a depth of 19mm. This sensor features a single digital output (PNP/NPN transistor), a sensing distance of 10mm, and a quick response time of 1ms (0.001 s). It operates with visible red light at a wavelength of 680 nm and includes both Light-ON and Dark-ON operating modes, providing versatile detection capabilities.
- OperationLight/Dark Operate
- Special Feature: Remote TeachNo
- OutputsBipolar (NPN & PNP)
- Housing StyleSlot
- Cable Length (m)0.2
- ConnectionPigtail QD
- Lens MaterialAcrylic
- Minimum Object Detection [mm]2
- IP RatingIP67
- NEMA RatingNEMA 6
- Max Op. Temperature (°C)70
- Max Op. Relative Humidity (%)90% @ 50°C
- Min Op. Temperature (°C)-40
- IndicatorLEDs
- AdjustmentsPotentiometer
- Repeatability (µs)250
- Power Supply/Supply Voltage10-30 V dc
- Output response time (ms)1
- Number of Pins5
- Slot Overall Depth (mm)72
- Minimum Object Detection (mm)2
- Slot Depth/Array Length (mm)45
- Sensing Mode (Detailed)Emitter/Receiver Pair
- Quick Disconnect TypeM12 (Euro)
- Max Sensing Range (mm)10
- Primary Housing MaterialThermoplastic
- PowerDC
- Primary brandBanner Engineering
- Sub-range nameSL10 series
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Main functionSensor (Photo-electric)
- Wavelength680 nm
- FunctionsPhoto-electric slot / optical fork sensor green LED (power ON) yellow LED (output state) potentiometer adjustment
- Operating modeLight-ON Dark-ON
- Order code / Manufacturer SKU58739
- Net Width (mm)(passageway) 10 mm52 mm
- Light ColorVisible red
- Digital outputs1 x digital output (PNP/NPN transistor)
- Net Height (mm)72 mm
- ShapeSlot
- Materialthermoplastic housing Acrylic lns. PVC (connector)
- Net Depth (mm)18.8 mm
- Connection typePre-wired with 6" / 150mm pigtail terminated with 5-pin Euro-style M12 connector
- Ambient air temperature for operation-40...+70 °C
- Response time1ms / 0.001 s
- Degree of protectionIP67 NEMA 6
