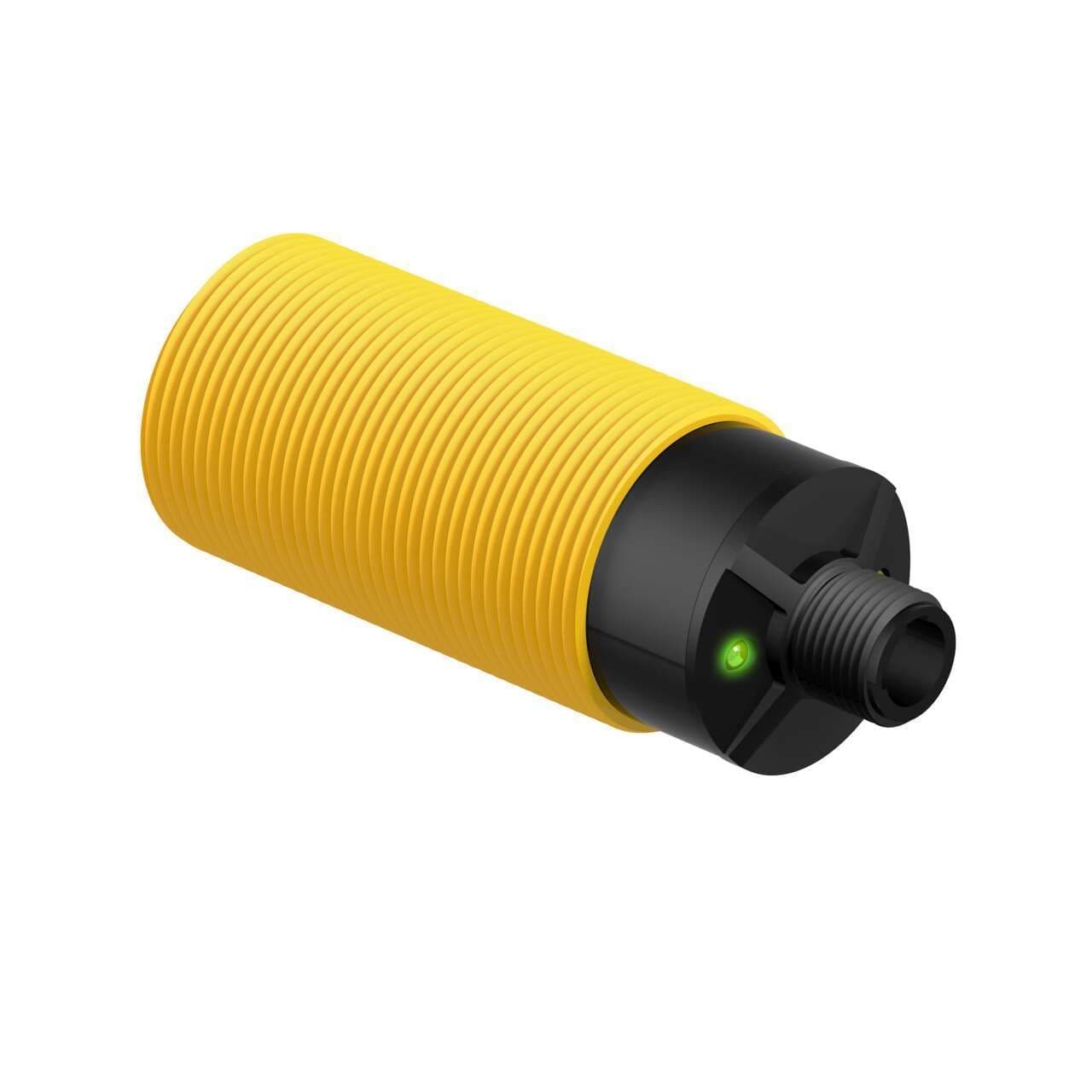

S30SP6RQ Banner Proximity Sensors


Part#:S30SP6RQ
Alt. Part#:33378
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM S30 Series: Receiver; Range: 60 m; Input: 10-30 V dc; Output: Complementary PNP; 4-pin M12 Integral QD
Product Details
- Weight 81.192968 g
- Country Of Origin MX
- IO Link No
- DeviceNet No
- Feature: Health/ Marginal Signal Output Yes
- Feature: Chemical Resistant No
- Feature: Audible No
- Feature: Hazardous Area No
- Feature: Encapsulated Yes
- Feature: Ecolab Certified Yes
- Feature: Timing (Hold/Delay) No
- Feature: Washdown Rated Yes
- Opposed Mode Emitter/Receiver Receiver
- Barrel Diameter (mm) 30
- Indicator LEDs
- Adjustments N/A
- Lens Material Acrylic
- Max Op. Relative Humidity [%] 90% @ 50°C
- NEMA Rating NEMA 6P
- IP Rating IP69
- Number of Pins 4
- Repeatability (µs) 375
- Delay at Power-up (ms) 100
- Special Feature: Water Detection No
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Output response time (ms) 3 ON/1.5 OFF
- Operation Light/Dark Operate
- Max Op. Temp. (°C) 70
- Min Op. Temp. (°C) -40
- Quick Disconnect Type M12 (Euro)
- Connection Integral QD
- Power Supply/Supply Voltage 10-30 V dc
- Outputs PNP
- Sensing Mode (Detailed) Receiver
- Primary Housing Material Thermoplastic
- Sensing Mode (General) Opposed
- Housing Style Barrel
- Max Sensing Distance (mm) 60000
- Input/Output Discrete
- Power DC
- Sensing Beam Infrared LED
- Primary brand Banner Engineering
- Sensing distance 60m
- Shape Cylindrical threaded/barrel
- Sub-range name S30 series
- Light Color Infrared (IR)
- Operating mode Light-ON Dark-ON
- Degree of protection IP69K NEMA 6P
- Compliant with standard(s) cULus Listed cCSAus CE
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (output state)
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Response time 3ms / 0.003 s
- Order code / Manufacturer SKU 33378
- Product series / family name EZ-BEAM series
- Design through-beam system / opposed mode
- Thread size M30
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -40...+70 °C
- Wavelength 950 nm
- Material thermoplastic housing
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S30SP6RQ on Powermatic Associates is $91.00. Order now.
About the product
Banner Engineering S30SP6RQ is a photo-electric sensor designed as part of the S30 series, featuring a through-beam system in an opposed mode configuration. This sensor functions as a receiver alone, housed in a thermoplastic material. It comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C. The S30SP6RQ offers a high degree of protection rated at IP69K and NEMA 6P, suitable for demanding environments. Its shape is an M30 cylindrical threaded/barrel, facilitating easy installation. The sensor provides one digital output (PNP transistor; complementary NO/NC) and boasts a sensing distance of up to 60 meters. It utilizes infrared (IR) light with a wavelength of 950 nm and has a quick response time of 3ms (0.003 s). The operating modes available are Light-ON and Dark-ON, allowing for versatile application use. The thread size for mounting is M30.
