Powermatic Associates Logo

S22DLHRT Banner Pick-to-Light Sensors

S22DLHRT on Powermatic Associates
Banner
  • S22DLHRT
  • S22DLHRT

Part#:S22DLHRT

Alt. Part#:87885

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

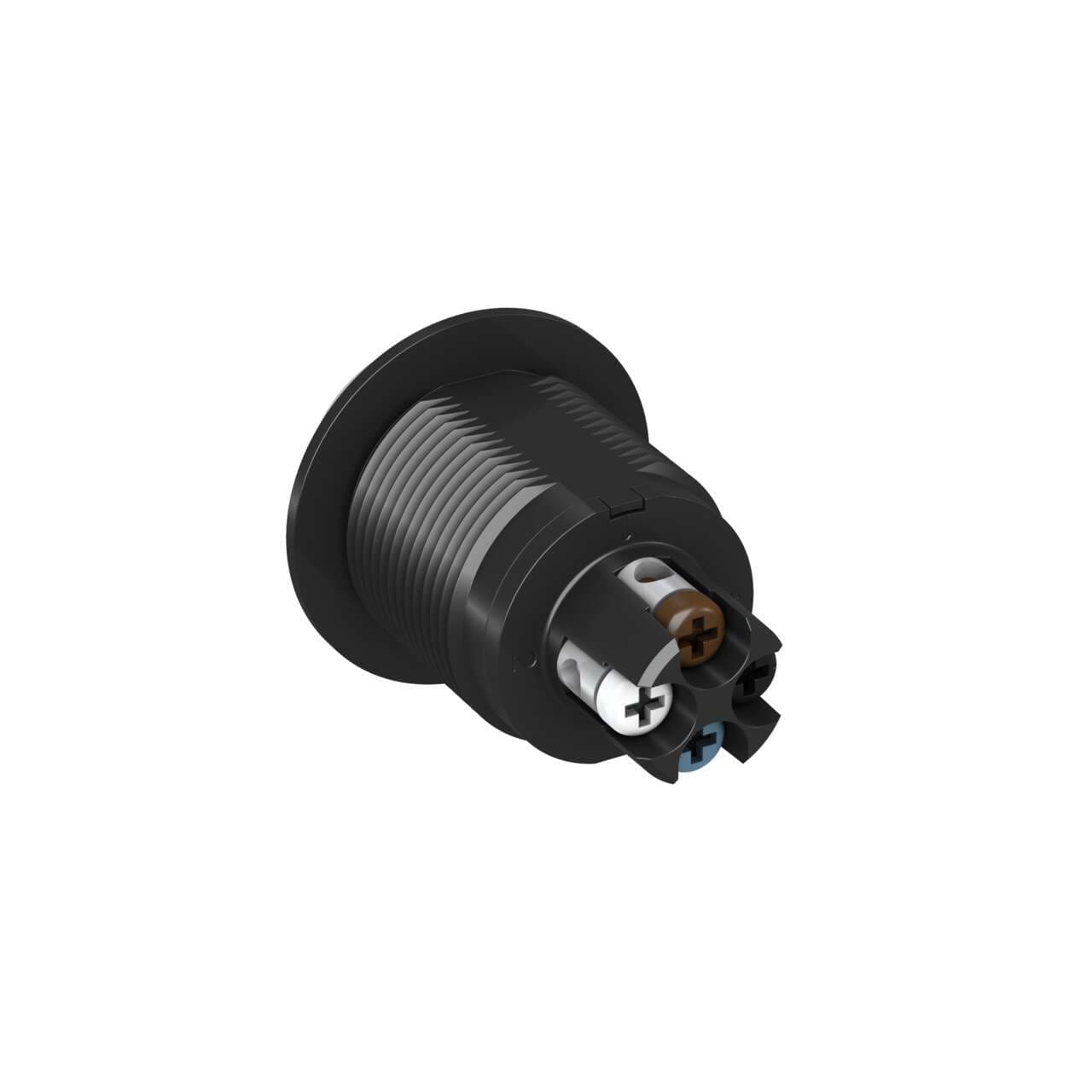

S22 Daylight Visible EZ-Light High Intensity 22 mm 1-Color; Voltage: 9-30 V dc; Environmental Rating: IP67; Color: Red; Input: PNP; 4-screw Terminal Wiring

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    CN
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Multi-Color Device
    Single Color On
  • Indication Intensity
    High Brightness & Daylight Visible
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Clear
  • Primary Housing Color
    Black
  • Max Op. Temperature (°C)
    60
  • Min Op. Temperature (°C)
    -40
  • Environmental Rating
    IP67; IP69
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Physical Dimensions (LxWxH or DxH mm)
    26.0 x 34.2
  • Input Type
    Bimodal (PNP/NPN)
  • Max Input Response Time (ms)
    1
  • Supply Voltage
    9-30 V dc
  • Number of Input Pins/Conductors
    4
  • Color Option 1
    Red
  • Max Current Color (mA)
    60
  • Lumens Color 1
    12.5
  • Product Size (mm)
    22
  • Color 1 - Wavelength/Color Temp/Coordinates
    625 nm
  • Connection
    Terminal
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Primary Housing Material
    Polycarbonate
  • Housing Style
    Barrel Mount - Flat Window
  • Mounting Thread
    M22 x 1.5
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Indication
    Yes
  • Power Source
    DC
  • Power
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22DLHRT on Powermatic Associates is $58.00. Order now.

About the product

Banner Engineering S22DLHRT is a pilot light from the EZ-LIGHT series featuring daylight-visible 1-color Red LED illumination. This part is designed with a clear Polycarbonate (PC) window and base, and it has a 22mm indicator diameter. The connection type is a screw-clamp terminal connection, and the housing color is black. It operates on a supply voltage of 9Vdc-30Vdc, with a nominal range of 12Vdc-24Vdc. The S22DLHRT is designed for flush mounting in a 22mm hole with an M22 thread. It can operate in ambient air temperatures ranging from -40°C to +60°C. This part offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The shape is characterized by a flat window and a threaded cylindrical barrel. It has a current consumption of 60mA and includes 1 x digital input (9-30Vdc; NPN/PNP) for color control.
