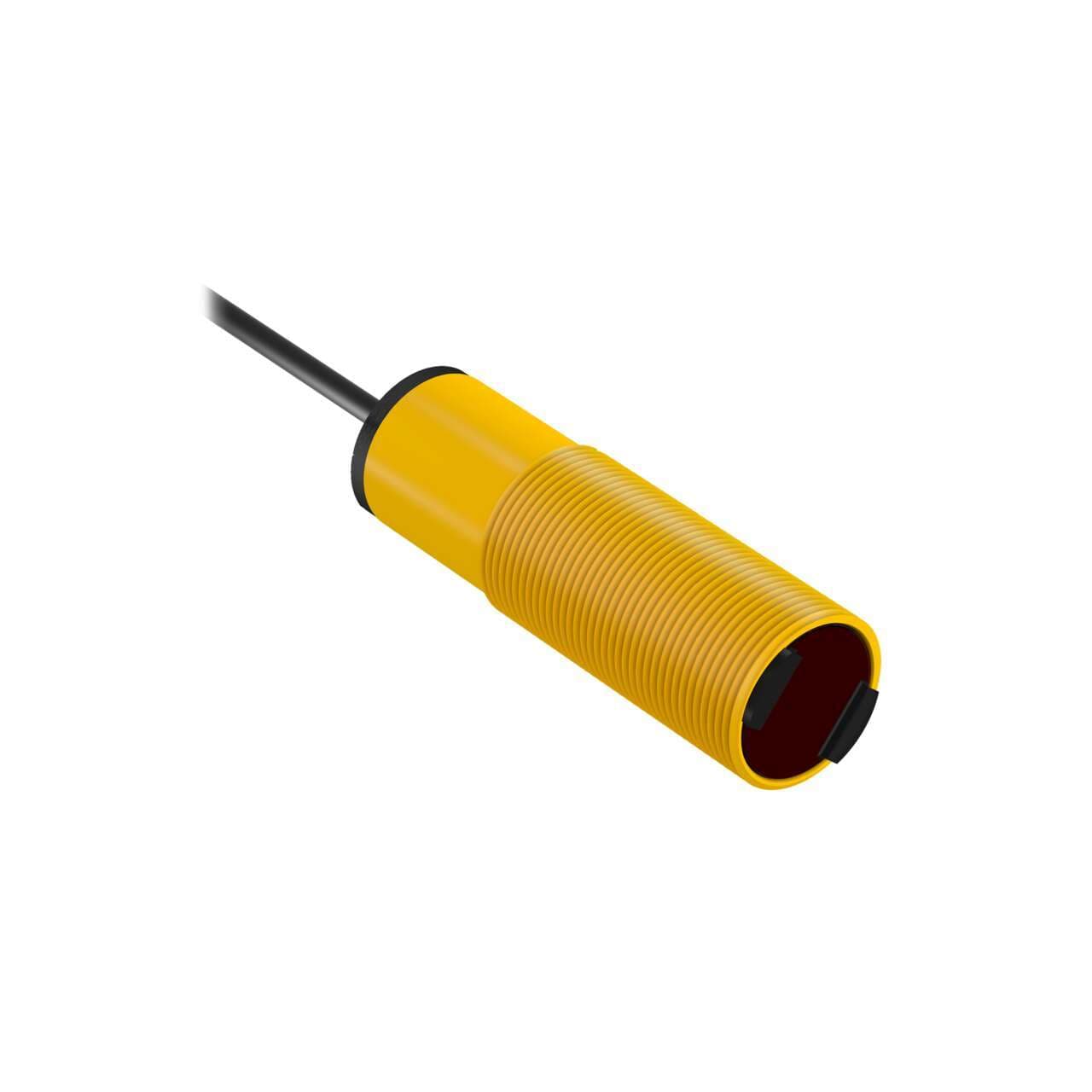

S18SN6FF100 Banner Retroreflective Sensors

S18SN6FF100 on Powermatic Associates
Banner

Part#:S18SN6FF100

Alt. Part#:29086

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

EZ-BEAM S18 Series: Fixed Field; Range: 100 mm; Input: 10-30 V dc; Output: Complementary NPN; 2 m (6.5 ft) Cable

Product Details

  • Weight
    147.4174 g
  • Country Of Origin
    MX
  • DeviceNet
    No
  • IO Link
    No
  • Feature: Ecolab Certified
    Yes
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    Yes
  • Adjustments
    N/A
  • Feature: Timing (Hold/Delay)
    No
  • Lens Material
    Acrylic
  • Feature: Washdown Rated
    Yes
  • Number of Pins
    4
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Repeatability (µs)
    750
  • Barrel Diameter (mm)
    18
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP67, IP69
  • Special Feature: Remote Teach
    No
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Max Op. Temp. (°C)
    70
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    3
  • Min Op. Temp. (°C)
    -40
  • Operation
    Light/Dark Operate
  • Quick Disconnect Type
    No QD
  • Connection
    Cable
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    NPN
  • Input/Output
    Discrete
  • Primary Housing Material
    Thermoplastic
  • Max Sensing Distance (mm)
    100
  • Housing Style
    Barrel
  • Power
    DC
  • Sensing Mode (General)
    Proximity
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Sensing Beam
    Infrared LED
  • Cable Length (m)
    2
  • Sub-range name
    S18 DC series
  • Sensing distance
    100mm
  • Digital outputs
    1 x digital output (NPN transistor)
  • Ambient air temperature for operation
    -40...+70 °C
  • Compliant with standard(s)
    cULus cCSAus CE
  • Main function
    Sensor (Photo-electric)
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Primary brand
    Banner Engineering
  • Light Color
    Infrared (IR)
  • Thread size
    M18
  • Material
    thermoplastic housing Acrylic lns.
  • Order code / Manufacturer SKU
    29086
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Shape
    Cylindrical threaded/barrel
  • Response time
    3ms / 0.003 s
  • Product series / family name
    EZ-BEAM series
  • Design
    background suppression system
  • Wavelength
    880 nm
  • Operating mode
    Light-ON Dark-ON
  • Degree of protection
    IP67 IP69K NEMA 6P

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18SN6FF100 on Powermatic Associates is $141.00. Order now.

About the product

Banner Engineering S18SN6FF100 is a fixed-field photo-electric sensor from the S18 DC series, designed with a background suppression system. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. The S18SN6FF100 offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environmental conditions. Its M18 cylindrical threaded/barrel shape facilitates easy installation. The sensor provides one digital output (NPN transistor; complementary NO/NC) and has a sensing distance of 100mm. It utilizes infrared light with a wavelength of 880 nm and boasts a quick response time of 3ms / 0.003 s. The operating modes include Light-ON and Dark-ON, allowing for versatile application use.
