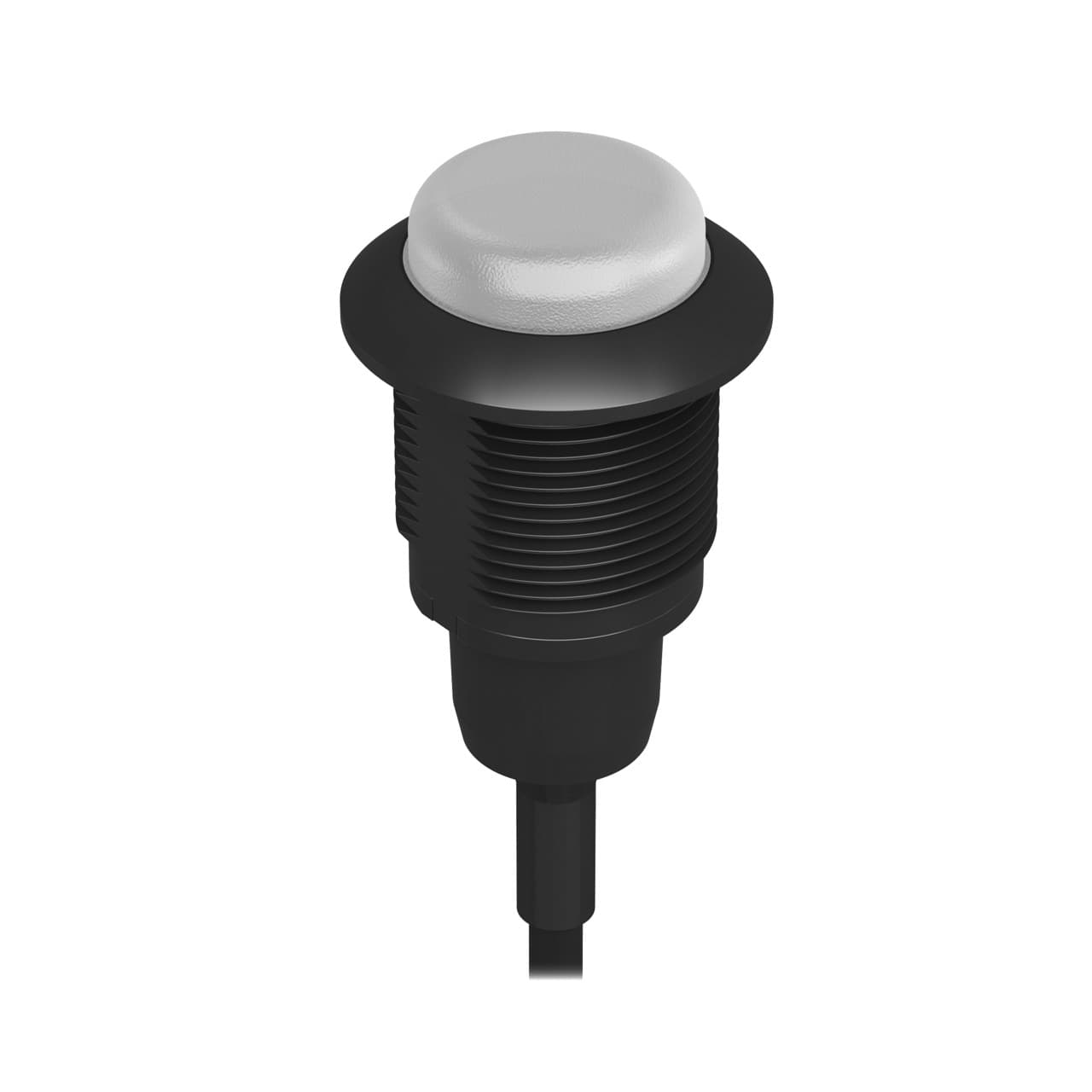

S18LGRYNQP Banner Electronic Components

Product Details

• Multi-Color Device
  Single Color On
• Modbus RTU
  No
• Pro-Editor Compatible (Discrete)
  No
• Wireless
  No
• Feature: Quick Disconnect
  Yes
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• IO Link
  No
• Feature: Hazardous Area
  No
• Feature: Washdown Rated
  Yes
• Primary Housing Color
  Black
• Primary Window Material
  Polycarbonate Diffused
• Input Type
  NPN
• Min Op. Temperature (°C)
  -40
• Physical Dimensions (LxWxH or DxH mm)
  23.5 x 35.7
• Max Op. Temperature (°C)
  50
• NEMA Type and UL Type Rating
  NEMA and UL 4X, 13
• Environmental Rating
  IP67; IP69
• Max Input Response Time (ms)
  1
• Color Option 3
  Yellow
Number of Input Pins/Conductors
4
Max Current Color (mA)
25
Color 3 - Wavelength/Color Temp/Coordinates
590 nm
Color 2 - Wavelength/Color Temp/Coordinates
625 nm
Lumens Color 3
0.80
Supply Voltage
10-30 V dc
Lumens Color 2
1.1
Quick Disconnect Type
M12 (Euro)
Color 1 - Wavelength/Color Temp/Coordinates
525 nm
Animation Option 1
Solid On
Color Option 2
Red
Lumens Color 1
4.1
Connection
Pigtail QD
Color Technology
Standard LED
Color Option 1
Green
Product Size (mm)
18
Housing Style
Barrel Mount - Flat Window
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Indication
Yes
Power
DC
Mounting Thread
M18 x 1.0
Number of Colors / Segments
3
Primary Housing Material
Polycarbonate
Power Source
DC
