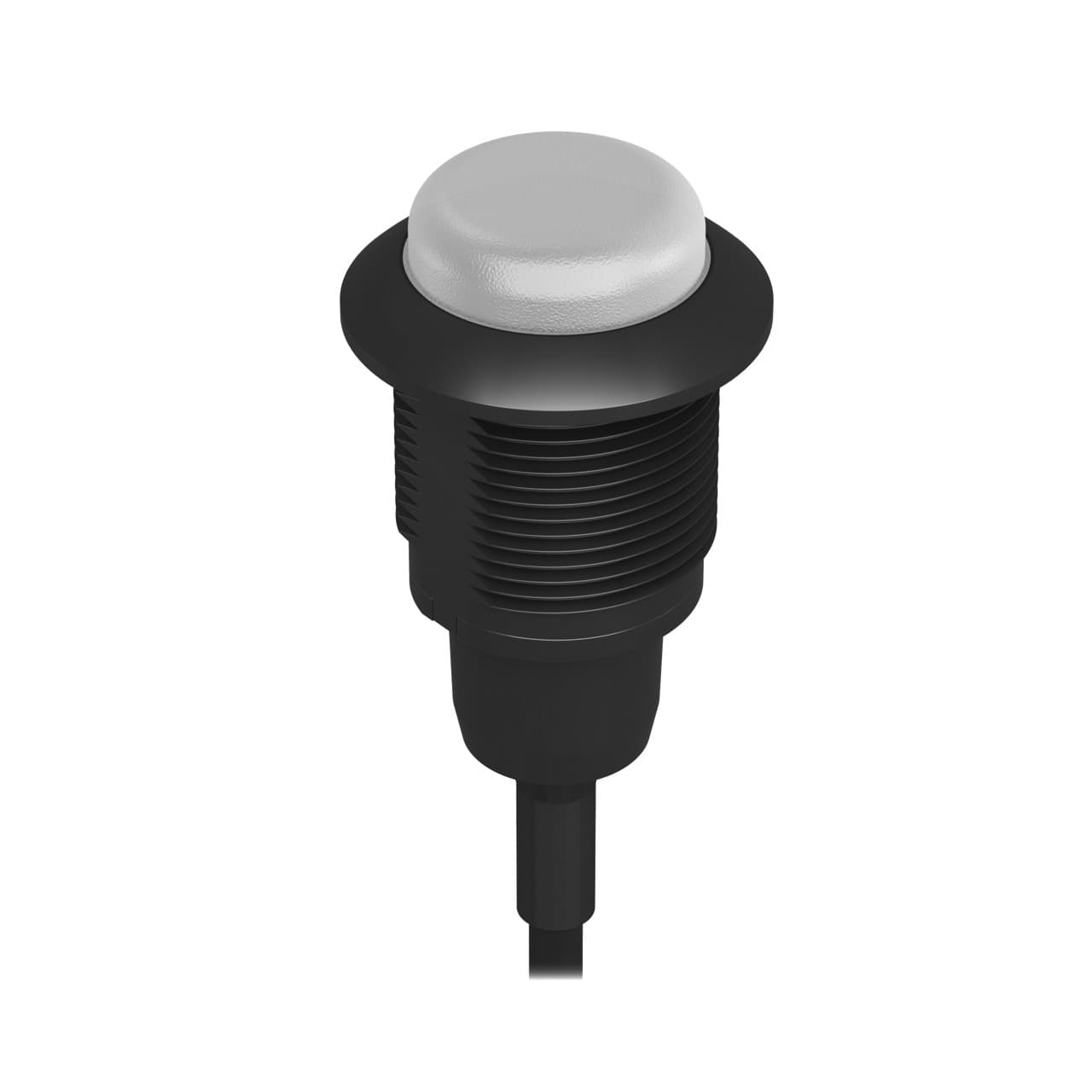

S18LBBBP Banner Electronic Components

Product Details

• IO Link
  No
• Wireless
  No
• Pro-Editor Compatible (Discrete)
  No
• Modbus RTU
  No
• Feature: Chemical Resistant
  No
• Feature: Hazardous Area
  No
• Feature: Audible
  No
• Multi-Color Device
  Single Color On
• Feature: Washdown Rated
  Yes
• Primary Window Material
  Polycarbonate Diffused
• Primary Housing Color
  Black
• Min Op. Temperature (°C)
  -40
• NEMA Type and UL Type Rating
  NEMA and UL 4X, 13
• Max Op. Temperature (°C)
  50
• Environmental Rating
  IP67; IP69
• Physical Dimensions (LxWxH or DxH mm)
  23.5 x 35.7
• Input Type
  PNP
• Max Input Response Time (ms)
  1
• Number of Input Pins/Conductors
  4
• Supply Voltage
  10-30 V dc
Max Current Color (mA)
25
Color 3 - Wavelength/Color Temp/Coordinates
470 nm
Lumens Color 3
0.60
Color Option 3
Blue
Lumens Color 1
0.60
Color 2 - Wavelength/Color Temp/Coordinates
470 nm
Color 1 - Wavelength/Color Temp/Coordinates
470 nm
Color Option 2
Blue
Lumens Color 2
0.60
Animation Option 1
Solid On
Color Technology
Standard LED
Connection
Cable
Color Option 1
Blue
Number of Colors / Segments
3
Mounting Thread
M18 x 1.0
Power Source
DC
Indication
Yes
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Power
DC
Product Size (mm)
18
Primary Housing Material
Polycarbonate
Housing Style
Barrel Mount - Flat Window

Related documents S18LBBBP Specs
