S18AW3FF100Q3 Banner Retroreflective Sensors

S18AW3FF100Q3 on Powermatic Associates
Banner

Part#:S18AW3FF100Q3

Alt. Part#:36878

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

EZ-BEAM S18 Series: Fixed-Field; Range: 0-100 mm Cutoff; Input: 20-250 V ac; Output:Light Operate; QD uses Turck cordset: WAKW4.5T-2

Product Details

  • Weight
    72.57472 g
  • Country Of Origin
    MX
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Feature: Encapsulated
    Yes
  • DeviceNet
    No
  • Indicator
    LEDs
  • Feature: Audible
    No
  • Feature: Timing (Hold/Delay)
    No
  • Adjustments
    N/A
  • Feature: Ecolab Certified
    Yes
  • Feature: Washdown Rated
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Barrel Diameter (mm)
    18
  • Number of Pins
    5
  • Repeatability (µs)
    4000
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Lens Material
    Acrylic
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP67, IP69
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Operation
    Light Operate
  • Special Feature: Remote Teach
    No
  • Output response time (ms)
    16
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Temp. (°C)
    70
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Power Supply/Supply Voltage
    20-250 V ac
  • Sensing Beam
    Infrared LED
  • Sensing Mode (General)
    Proximity
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Outputs
    Solid-State AC Switch
  • Max Sensing Distance (mm)
    100
  • Input/Output
    Solid-State AC Switch
  • Housing Style
    Barrel
  • Power
    AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18AW3FF100Q3 on Powermatic Associates is $170.00. Order now.

About the product

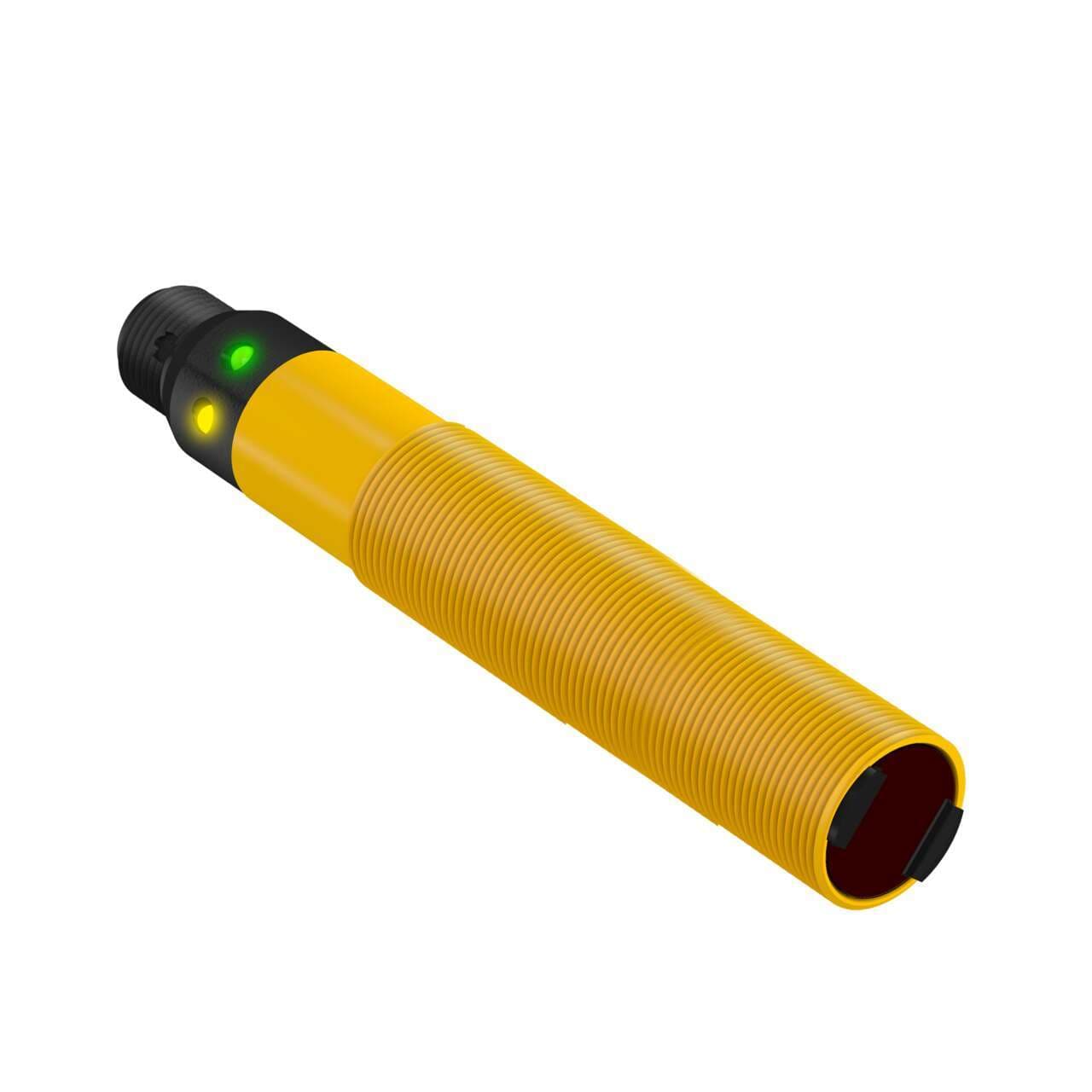

Banner Engineering S18AW3FF100Q3 is a fixed-field photo-electric sensor within the S18 AC series, featuring a background suppression system. It is constructed with a thermoplastic housing and an acrylic lens. This sensor is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. It operates on a supply voltage range of 20Vac-250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. Designed to function in ambient air temperatures ranging from -40 to +70°C, it offers a high degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environmental conditions. The sensor has an M18 cylindrical threaded/barrel shape, includes 1 x digital output with a solid-state AC output and SPST contact type, and provides a sensing distance of 100mm. It utilizes infrared light with a wavelength of 880 nm and has a response time of 16ms (0.016 s). The operating mode is Light-ON.
