S18-2VPRL-Q3 Banner Optical Sensors

S18-2VPRL-Q3 on Powermatic Associates
Banner

Part#:S18-2VPRL-Q3

Manufacturer:Banner

Alt. Part#:42189

Product Lifecycle:Active

Get a quick Quote!

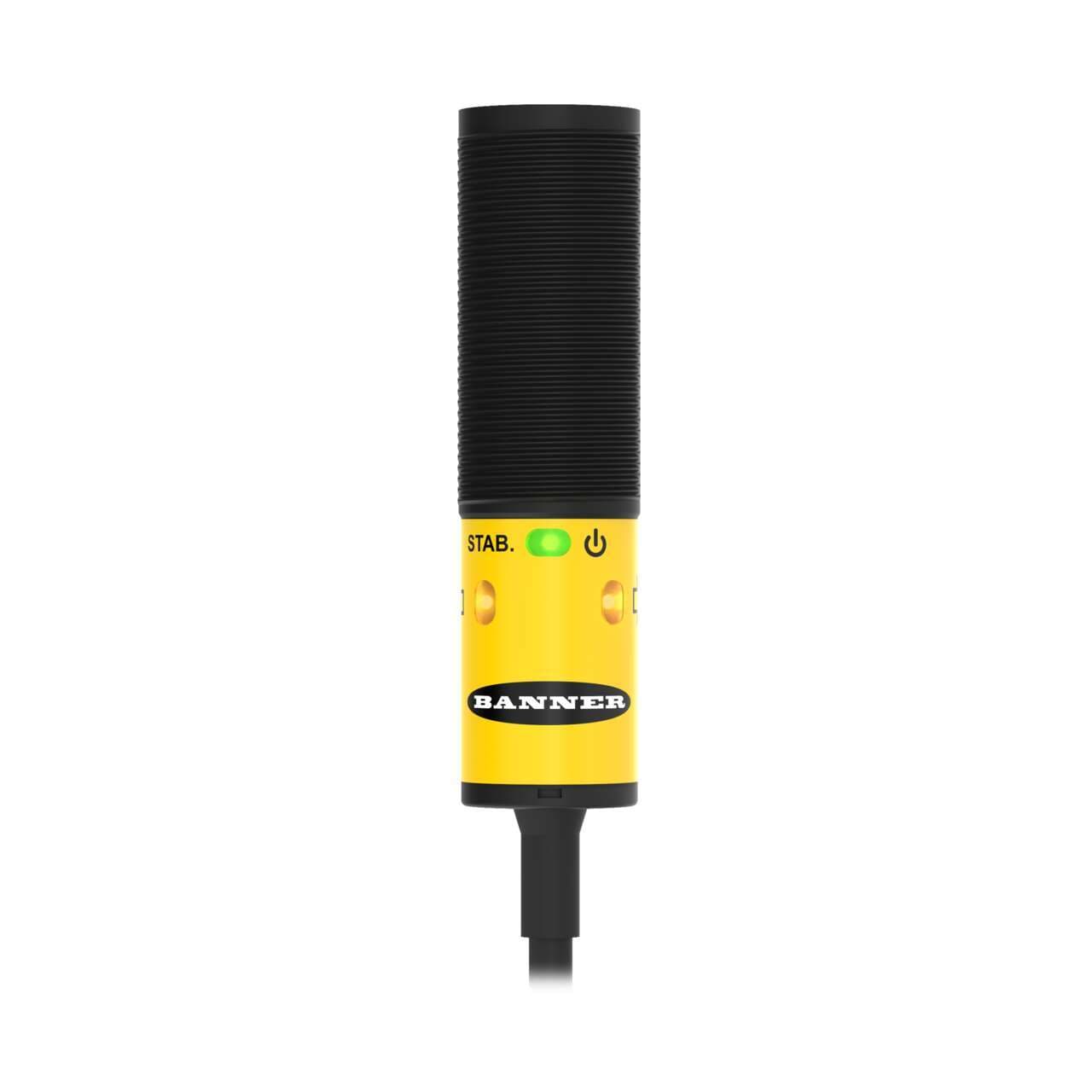

S18-2 Series: Receiver; Range: 25 m; Input: 10-30 V dc; Outputs: Complementary PNP; 150 mm (6 in) 4-pin M8 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18-2VPRL-Q3 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    40.82328 g
  • Country Of Origin
    CN
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Adjustments
    N/A
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    No
  • Lens Material
    Acrylic
  • Feature: Encapsulated
    No
  • Feature: Ecolab Certified
    Yes
  • Opposed Mode Emitter/Receiver
    Receiver
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • IP Rating
    IP67
  • Number of Pins
    4
  • NEMA Rating
    N/A
  • Special Feature: Remote Teach
    No
  • Repeatability (µs)
    170
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Output response time (ms)
    1.5
  • Max Op. Temp. (°C)
    70
  • Special Feature: Intrinsically Safe
    No
  • Quick Disconnect Type
    M8 (Pico)
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -40
  • Connection
    Pigtail QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    PNP
  • Sensing Mode (General)
    Opposed
  • Input/Output
    Discrete
  • Sensing Mode (Detailed)
    Receiver
  • Power
    DC
  • Sensing Beam
    Visible Red LED
  • Housing Style
    Barrel
  • Max Sensing Distance (mm)
    25000
  • Primary Housing Material
    Thermoplastic
  • Sub-range name
    S18-2 series
  • Sensing distance
    25m
  • Response time
    1.5ms / 0.0015 s
  • Degree of protection
    IP67
  • Primary brand
    Banner Engineering
  • Functions
    Photo-electric sensor receiver green LED (power ON) 2 x yellow LED (output conducting)
  • Design
    through-beam system / opposed mode
  • Ambient air temperature for operation
    -40...+70 °C
  • Main function
    Sensor (Photo-electric)
  • Thread size
    M18
  • Operating mode
    Light-ON Dark-ON
  • Product series / family name
    M18 barrel series
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
  • Digital outputs
    1 x digital output (PNP transistor)
  • Material
    thermoplastic housing Acrylic lns. PVC (connector)
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Shape
    Cylindrical threaded/barrel
  • Compliant with standard(s)
    CE
  • Order code / Manufacturer SKU
    42189
  • Equivalent to
    S182VPRLQ3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18-2VPRL-Q3 Description

Banner Engineering S18-2VPRL-Q3 is a photo-electric sensor from the S18-2 series, designed as a through-beam system or opposed mode receiver. It features a thermoplastic housing with an acrylic lens and a PVC connector. This sensor is pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Pico-style M8 connector. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal. The S18-2VPRL-Q3 can function within an ambient air temperature range of -40 to +70°C and is rated with a degree of protection of IP67. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor). The sensing distance is up to 25m, and it has a response time of 1.5ms / 0.0015 s. Operating modes include Light-ON and Dark-ON, with a thread size of M18.

Related documents S18-2VPRL-Q3 Specs

S18-2VPRL-Q3 170670.pdf
