S18-2VPLPC-2M Banner Optical Sensors

S18-2VPLPC-2M on Powermatic Associates
Banner

Part#:S18-2VPLPC-2M

Manufacturer:Banner

Alt. Part#:86561

Product Lifecycle:Active

Get a quick Quote!

S18-2 Series: Polarized Retroreflective with pot; Range: variable to 6 m; Input: 10-30 V dc; Outputs: complementary PNP; 2 m 4-conductor PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18-2VPLPC-2M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    CN
  • Feature: Audible
    No
  • IO Link
    No
  • Feature: Ecolab Certified
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Lens Material
    Acrylic
  • NEMA Rating
    N/A
  • Number of Pins
    4
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Remote Teach
    No
  • Power Supply/Supply Voltage
    10-30 V dc
  • Operation
    Light/Dark Operate
  • Input/Output
    Discrete
  • Primary Housing Material
    Thermoplastic
  • Cable Length (m)
    2
  • Feature: Chemical Resistant
    No
  • DeviceNet
    No
  • Feature: Encapsulated
    No
  • Feature: Hazardous Area
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Adjustments
    Potentiometer
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • IP Rating
    IP67
  • Repeatability (µs)
    100
  • Delay at Power-up (ms)
    100
  • Sensing Beam Wavelength
    624
  • Special Feature: Water Detection
    No
  • Output response time (ms)
    1.5
  • Max Op. Temp. (°C)
    70
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    No QD
  • Connection
    Cable
  • Outputs
    PNP
  • Max Sensing Distance (mm)
    6000
  • Sensing Beam
    Visible Red LED
  • Sensing Mode (Detailed)
    Polarized
  • Housing Style
    Barrel
  • Sensing Mode (General)
    Retroreflective
  • Power
    DC
  • Sub-range name
    S18-2 series
  • Sensing distance
    6m
  • Main function
    Sensor (Photo-electric)
  • Wavelength
    624 nm
  • Light Color
    Visible red
  • Degree of protection
    IP67
  • Product series / family name
    M18 barrel series
  • Design
    retro-reflective mode
  • Compliant with standard(s)
    CE
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Thread size
    M18
  • Response time
    1.5ms / 0.0015 s
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Operating mode
    Light-ON Dark-ON
  • Order code / Manufacturer SKU
    86561
  • Ambient air temperature for operation
    -40...+70 °C
  • Shape
    Cylindrical threaded/barrel
  • Equivalent to
    S182VPLPC2M
  • Functions
    Polarized photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting) potentiometer adjustment
  • Digital outputs
    1 x digital output (PNP transistor)
  • Material
    thermoplastic housing Acrylic lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18-2VPLPC-2M Description

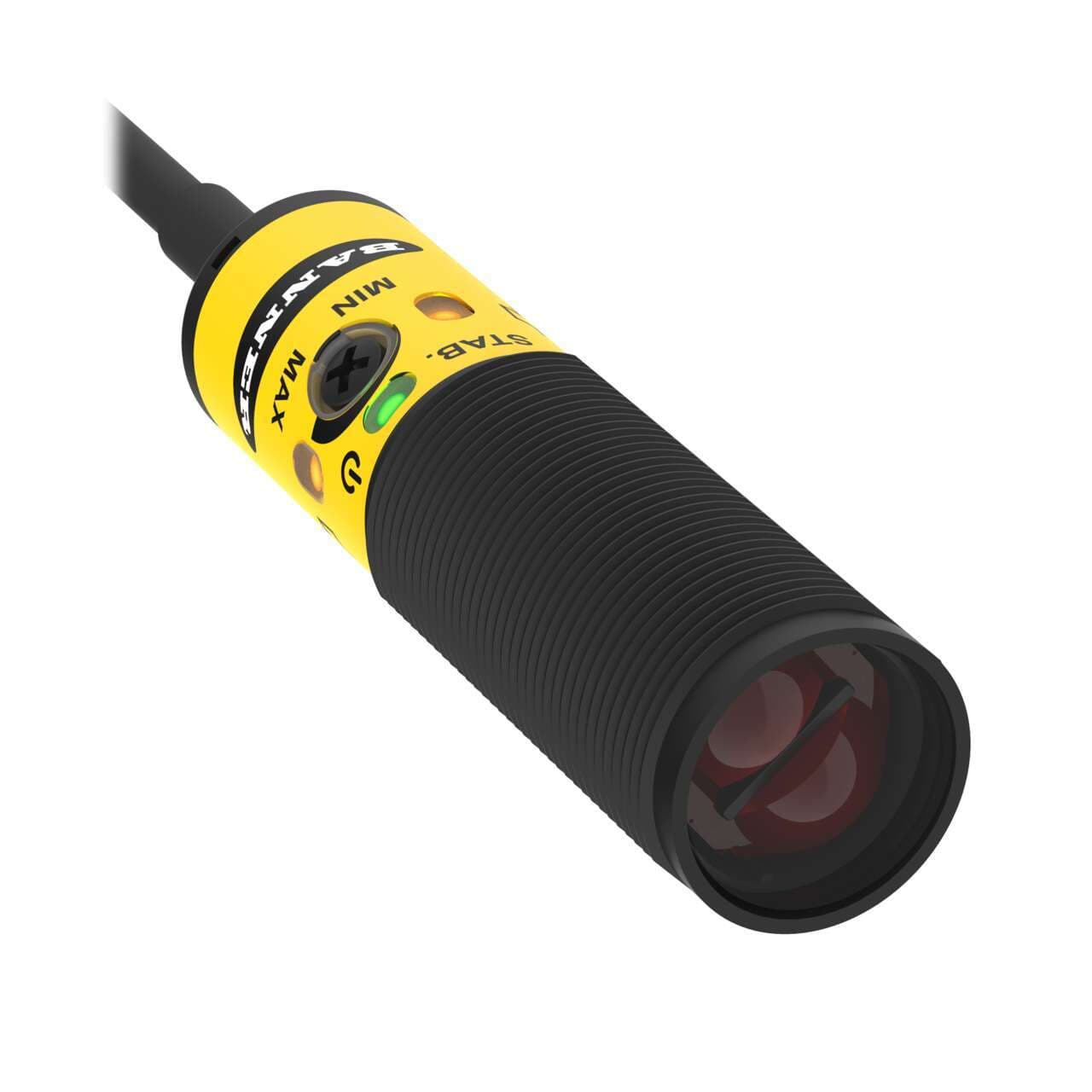

Banner Engineering S18-2VPLPC-2M is a polarized photo-electric sensor from the S18-2 series, designed in a retro-reflective mode with potentiometer adjustment for range. It features a thermoplastic housing and an acrylic lens. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. The S18-2VPLPC-2M offers a degree of protection rated at IP67, making it suitable for various environmental conditions. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor). The sensing distance is up to 6m, utilizing visible red light with a wavelength of 624 nm. The response time is 1.5ms / 0.0015 s, and it supports both Light-ON and Dark-ON operating modes. The thread size for mounting is M18.

Related documents S18-2VPLPC-2M Specs

S18-2VPLPC-2M 170670.pdf
