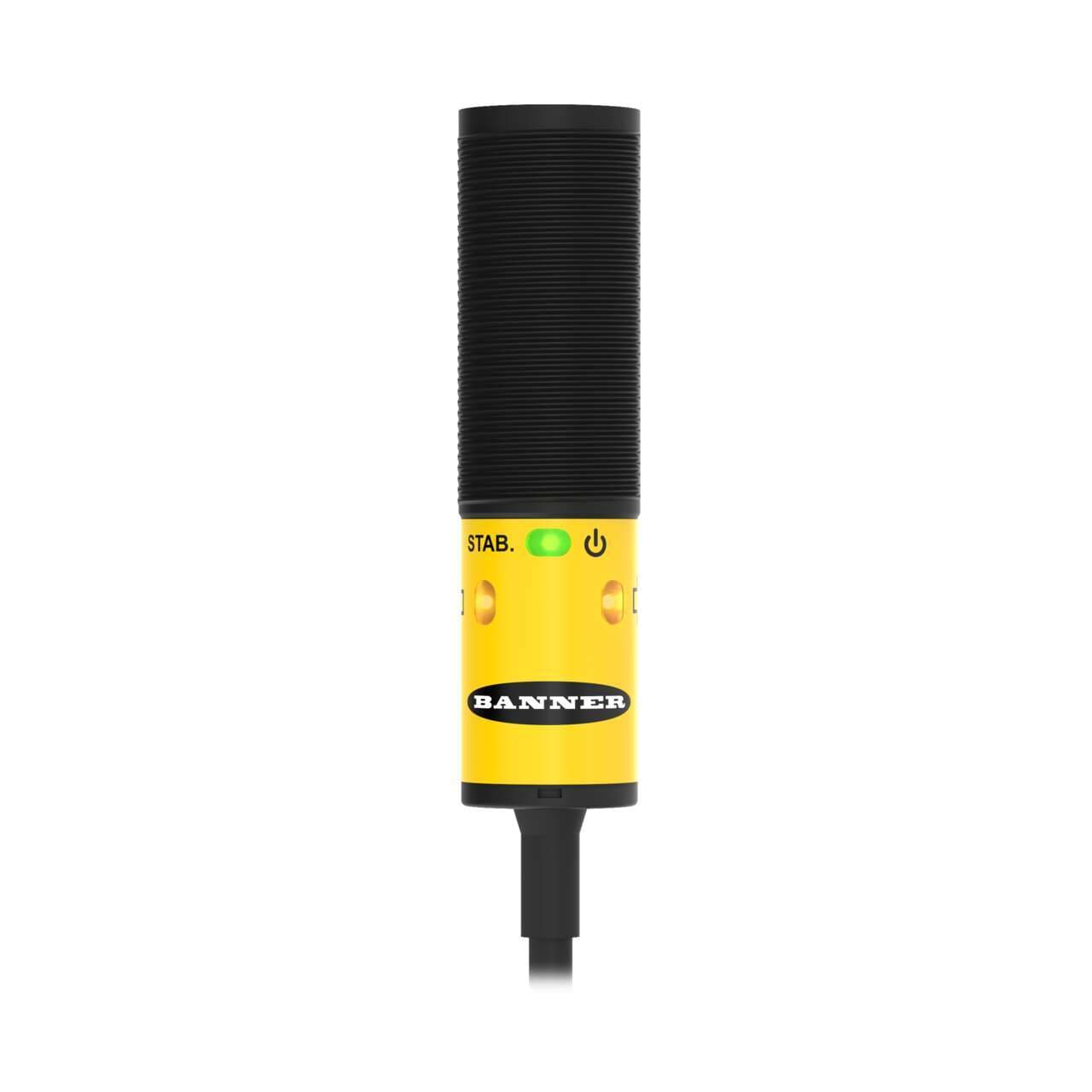

S18-2VPLP-Q5 Banner Optical Sensors
Part#:S18-2VPLP-Q5
Manufacturer:Banner
Alt. Part#:42148
Product Lifecycle:Active
Get a quick Quote!
S18-2 Series: Polarized Retroreflective; Range: 6 m; Input: 10-30 V dc; Outputs: Complementary PNP; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S18-2VPLP-Q5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 40.82328 g
- Country Of Origin CN
- IO Link No
- DeviceNet No
- Feature: Chemical Resistant No
- Feature: Audible No
- Feature: Encapsulated No
- Feature: Hazardous Area No
- Feature: Ecolab Certified Yes
- Opposed Mode Emitter/Receiver N/A
- Feature: Timing (Hold/Delay) No
- Indicator LEDs
- Barrel Diameter (mm) 18
- Adjustments N/A
- Lens Material Acrylic
- Repeatability (µs) 100
- Max Op. Relative Humidity [%] 95% @ 50°C
- IP Rating IP67
- Number of Pins 4
- NEMA Rating N/A
- Delay at Power-up (ms) 100
- Sensing Beam Wavelength 624
- Special Feature: Water Detection No
- Max Op. Temp. (°C) 70
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Output response time (ms) 1.5
- Quick Disconnect Type M12 (Euro)
- Power Supply/Supply Voltage 10-30 V dc
- Operation Light/Dark Operate
- Connection Pigtail QD
- Min Op. Temp. (°C) -40
- Sensing Mode (Detailed) Polarized
- Max Sensing Distance (mm) 6000
- Housing Style Barrel
- Outputs PNP
- Input/Output Discrete
- Primary Housing Material Thermoplastic
- Sensing Mode (General) Retroreflective
- Power DC
- Sensing Beam Visible Red LED
- Functions Polarized photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
- Light Color Visible red
- Sub-range name S18-2 series
- Wavelength 624 nm
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Primary brand Banner Engineering
- Design retro-reflective mode
- Thread size M18
- Material thermoplastic housing Acrylic lns. PVC (connector)
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Cylindrical threaded/barrel
- Digital outputs 1 x digital output (PNP transistor)
- Product series / family name M18 barrel series
- Sensing distance 6m
- Response time 1.5ms / 0.0015 s
- Ambient air temperature for operation -40...+70 °C
- Operating mode Light-ON Dark-ON
- Equivalent to S182VPLPQ5
- Compliant with standard(s) CE
- Degree of protection IP67
- Order code / Manufacturer SKU 42148
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
S18-2VPLP-Q5 Description
Banner Engineering S18-2VPLP-Q5 is a polarized photo-electric sensor from the S18-2 series, designed in a retro-reflective mode. This sensor features a thermoplastic housing with an acrylic lens and a PVC connector, ensuring durability and clear signal transmission. It is pre-wired with a 6-inch (150mm) pigtail that terminates with a 4-pin Euro-style M12 connector for easy installation. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70 degrees Celsius. It boasts an IP67 degree of protection, making it suitable for use in various environmental conditions. The S18-2VPLP-Q5 has a compact M18 cylindrical threaded/barrel shape for straightforward integration into different setups. It offers a single digital output (PNP transistor) and can detect objects up to 6 meters away. The sensor emits visible red light with a wavelength of 624 nm and responds to changes in less than 1.5 milliseconds (0.0015 seconds), with the capability to operate in both Light-ON and Dark-ON modes. The thread size for mounting is M18.
