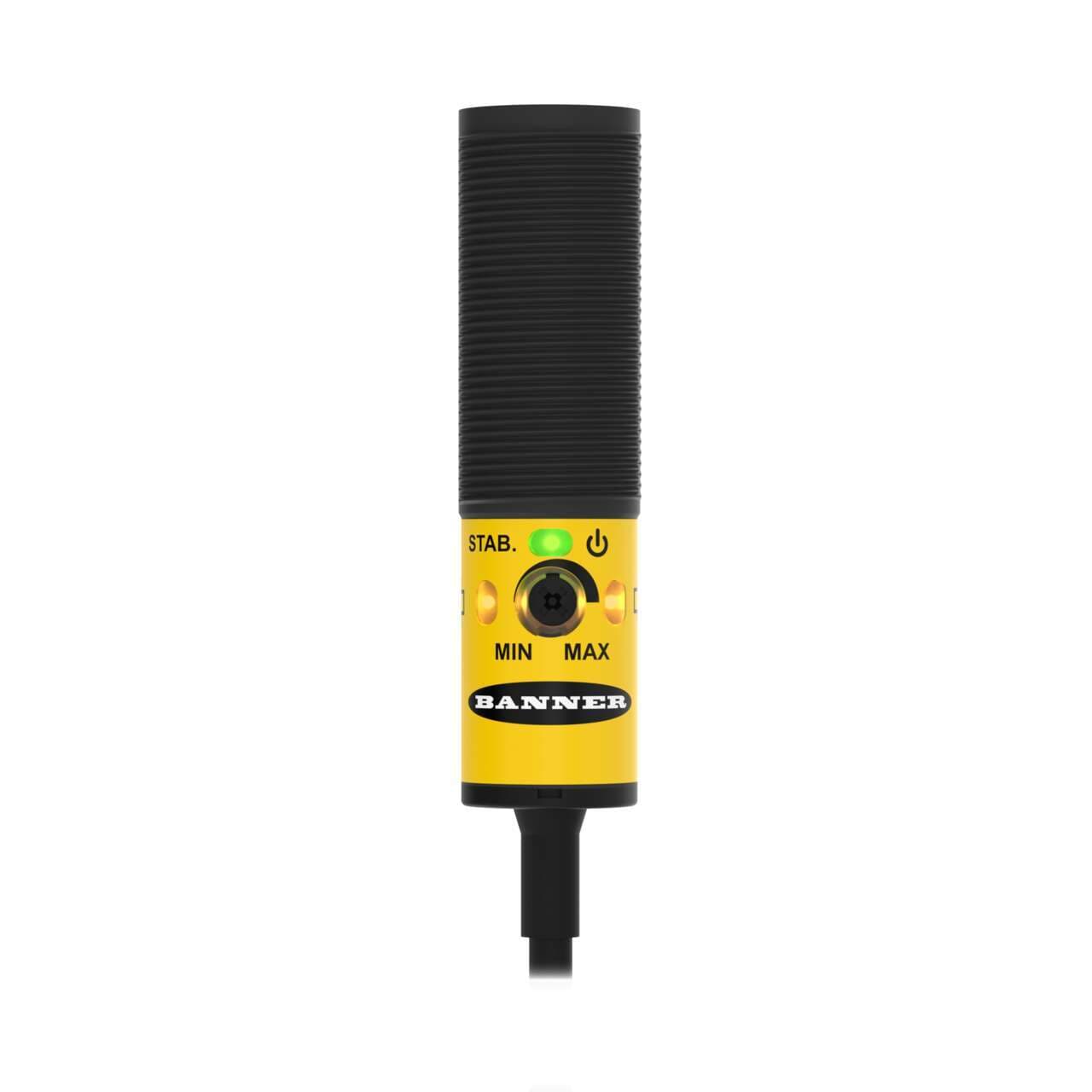

S18-2VPDS-Q3 Banner Optical Sensors

S18-2VPDS-Q3 on Powermatic Associates
Banner

Part#:S18-2VPDS-Q3

Manufacturer:Banner

Alt. Part#:42179

Product Lifecycle:Active

Get a quick Quote!

S18-2 Series: Diffuse Short Range Reflective; Range: 300 mm; Input: 10-30 V dc; Outputs: Complementary PNP; 150 mm (6 in) 4-pin M8 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18-2VPDS-Q3 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    0.453592 g
  • Country Of Origin
    CN
  • Feature: Chemical Resistant
    No
  • DeviceNet
    No
  • IO Link
    No
  • Feature: Audible
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Hazardous Area
    No
  • Feature: Ecolab Certified
    Yes
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    No
  • Indicator
    LEDs
  • Adjustments
    Potentiometer
  • Barrel Diameter (mm)
    18
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • NEMA Rating
    N/A
  • IP Rating
    IP67
  • Number of Pins
    4
  • Delay at Power-up (ms)
    100
  • Repeatability (µs)
    100
  • Sensing Beam Wavelength
    624
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Sensing Mode (General)
    Proximity
  • Output response time (ms)
    1.5
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -40
  • Max Op. Temp. (°C)
    70
  • Power Supply/Supply Voltage
    10-30 V dc
  • Connection
    Pigtail QD
  • Quick Disconnect Type
    M8 (Pico)
  • Power
    DC
  • Primary Housing Material
    Thermoplastic
  • Input/Output
    Discrete
  • Sensing Mode (Detailed)
    Diffuse
  • Max Sensing Distance (mm)
    300
  • Housing Style
    Barrel
  • Outputs
    PNP
  • Sensing Beam
    Visible Red LED
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
  • Material
    thermoplastic housing Acrylic lns. PVC (connector)
  • Primary brand
    Banner Engineering
  • Sensing distance
    300mm
  • Shape
    Cylindrical threaded/barrel
  • Degree of protection
    IP67
  • Equivalent to
    S182VPDSQ3
  • Main function
    Sensor (Photo-electric)
  • Design
    diffuse mode
  • Thread size
    M18
  • Digital outputs
    1 x digital output (PNP transistor)
  • Order code / Manufacturer SKU
    42179
  • Product series / family name
    M18 barrel series
  • Light Color
    Visible red
  • Operating mode
    Light-ON Dark-ON
  • Ambient air temperature for operation
    -40...+70 °C
  • Sub-range name
    S18-2 series
  • Functions
    Photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting) potentiometer adjustment
  • Wavelength
    624 nm
  • Response time
    1.5ms / 0.0015 s
  • Compliant with standard(s)
    CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18-2VPDS-Q3 Description

Banner Engineering S18-2VPDS-Q3 is a photo-electric sensor from the S18-2 series, featuring a diffuse mode with potentiometer adjustment. This sensor is housed in thermoplastic with an acrylic lens and a PVC connector. It is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector. Designed for a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.), it operates within an ambient air temperature range of -40 to +70°C. The S18-2VPDS-Q3 offers an IP67 degree of protection, making it suitable for various environments. Its M18 cylindrical threaded/barrel shape facilitates easy installation. The sensor provides one digital output (PNP transistor) and has a sensing distance of 300mm. It emits visible red light with a wavelength of 624 nm and responds in 1.5ms / 0.0015 s. The operating modes include Light-ON and Dark-ON, and it features an M18 thread size for mounting.

Related documents S18-2VPDS-Q3 Specs

S18-2VPDS-Q3 170670.pdf
