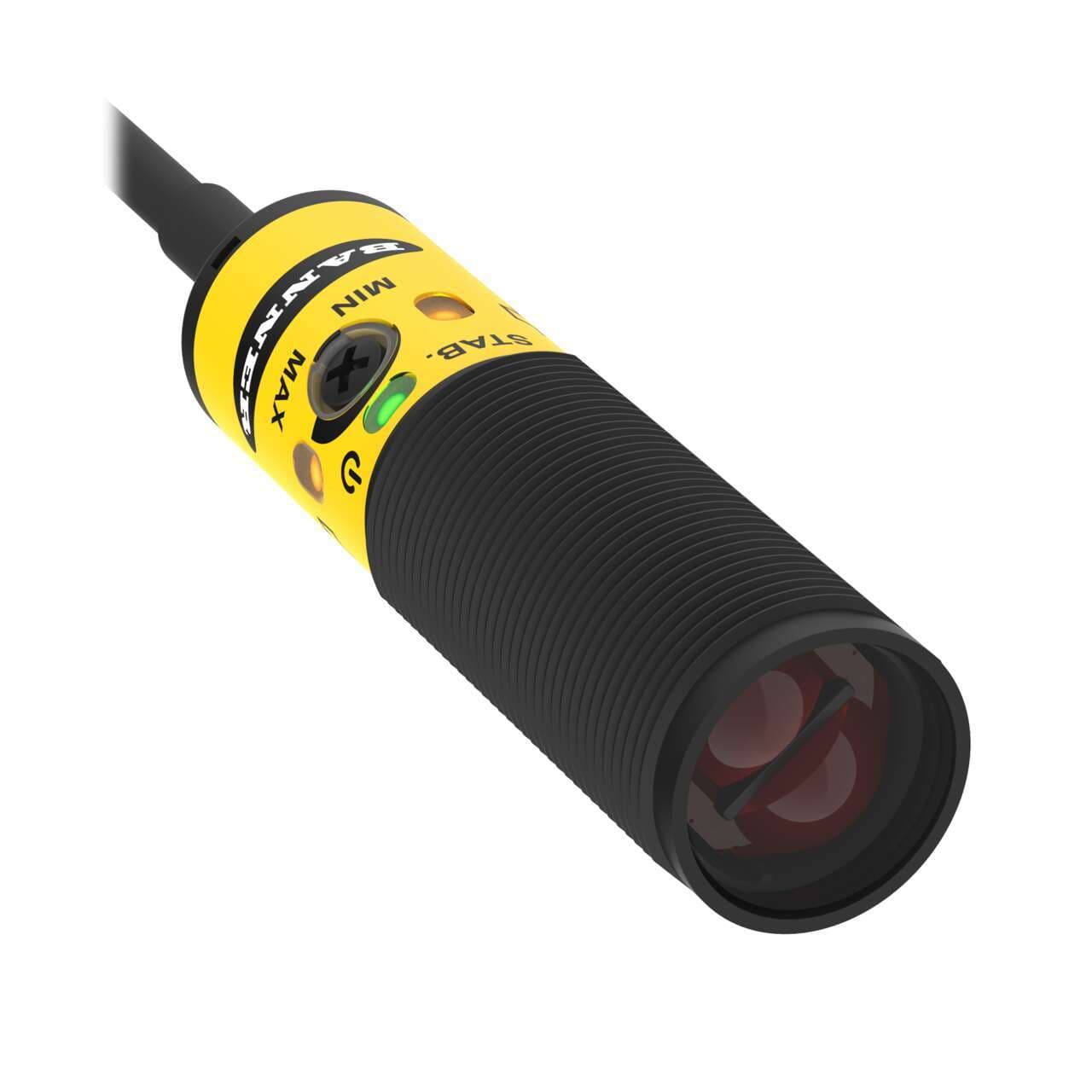

S18-2VNLV-Q5 Banner Optical Sensors

S18-2VNLV-Q5 on Powermatic Associates
Banner

Part#:S18-2VNLV-Q5

Manufacturer:Banner

Alt. Part#:42153

Product Lifecycle:Active

Get a quick Quote!

S18-2 Series: Non-Polarized Retroreflective with pot; Range: variable to 7.5 m; Input: 10-30 V dc; Outputs: Complementary NPN; 150 mm (6 in) 4-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18-2VNLV-Q5 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    40.82328 g
  • Country Of Origin
    CN
  • IO Link
    No
  • Repeatability (µs)
    100
  • IP Rating
    IP67
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Ecolab Certified
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Adjustments
    Potentiometer
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • NEMA Rating
    N/A
  • Number of Pins
    4
  • Delay at Power-up (ms)
    100
  • Sensing Beam Wavelength
    624
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Operation
    Light/Dark Operate
  • Max Op. Temp. (°C)
    70
  • Output response time (ms)
    1.5
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Pigtail QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    NPN
  • Max Sensing Distance (mm)
    7500
  • Sensing Mode (General)
    Retroreflective
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Barrel
  • Input/Output
    Discrete
  • Sensing Mode (Detailed)
    Non-Polarized
  • Power
    DC
  • Sensing Beam
    Visible Red LED
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Light Color
    Visible red
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
  • Degree of protection
    IP67
  • Equivalent to
    S182VNLVQ5
  • Sub-range name
    S18-2 series
  • Thread size
    M18
  • Material
    thermoplastic housing Acrylic lns. PVC (connector)
  • Primary brand
    Banner Engineering
  • Functions
    Photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting) potentiometer adjustment
  • Product series / family name
    M18 barrel series
  • Sensing distance
    7.5m
  • Wavelength
    624 nm
  • Response time
    1.5ms / 0.0015 s
  • Ambient air temperature for operation
    -40...+70 °C
  • Main function
    Sensor (Photo-electric)
  • Design
    retro-reflective mode
  • Digital outputs
    1 x digital output (NPN transistor)
  • Shape
    Cylindrical threaded/barrel
  • Operating mode
    Light-ON Dark-ON
  • Order code / Manufacturer SKU
    42153
  • Compliant with standard(s)
    CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18-2VNLV-Q5 Description

Banner Engineering S18-2VNLV-Q5 is a photo-electric sensor from the S18-2 series designed in a retro-reflective mode with potentiometer adjustment for precise control. It features a thermoplastic housing and an acrylic lens with a PVC connector for durability. This sensor is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector, ensuring easy installation. It operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. The S18-2VNLV-Q5 offers a degree of protection rated at IP67, making it suitable for various industrial environments. Its M18 cylindrical threaded/barrel shape allows for straightforward mounting. The sensor provides one digital output (NPN transistor) and has a sensing distance of up to 7.5m. It emits visible red light with a wavelength of 624 nm and features a fast response time of 1.5ms / 0.0015 s. The operating modes include Light-ON and Dark-ON, offering flexibility for different application requirements.

Related documents S18-2VNLV-Q5 Specs

S18-2VNLV-Q5 170670.pdf
