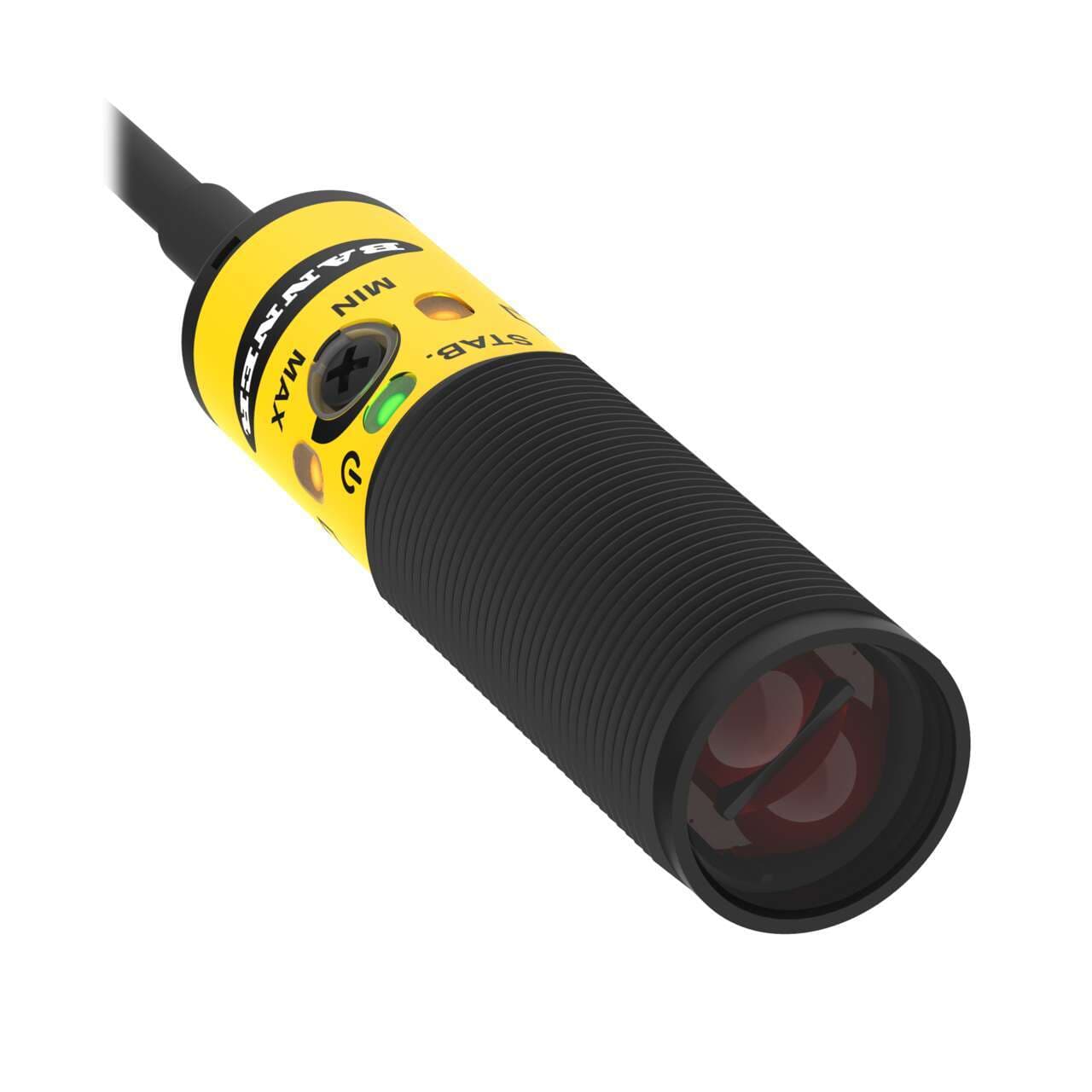

S18-2VNLV-2M Banner Optical Sensors

Banner S18-2VNLV-2M S18-2 Series: Non-Polarized Retroreflective with pot; Range: variable to 7.5 m; Input: 10-30 V dc; Outputs: complementary NPN; 2 m 4-conductor PVC Cable
Banner

Part#:S18-2VNLV-2M

Manufacturer:Banner

Alt. Part#:42150

Product Lifecycle:Active

Get a quick Quote!

S18-2 Series: Non-Polarized Retroreflective with pot; Range: variable to 7.5 m; Input: 10-30 V dc; Outputs: complementary NPN; 2 m 4-conductor PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18-2VNLV-2M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    CN
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Audible
    No
  • Feature: Encapsulated
    No
  • Feature: Ecolab Certified
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Barrel Diameter (mm)
    18
  • Indicator
    LEDs
  • Adjustments
    Potentiometer
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • NEMA Rating
    N/A
  • IP Rating
    IP67
  • Special Feature: Water Detection
    No
  • Repeatability (µs)
    100
  • Number of Pins
    4
  • Delay at Power-up (ms)
    100
  • Sensing Beam Wavelength
    624
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Quick Disconnect Type
    No QD
  • Output response time (ms)
    1.5
  • Connection
    Cable
  • Operation
    Light/Dark Operate
  • Max Op. Temp. (°C)
    70
  • Power Supply/Supply Voltage
    10-30 V dc
  • Min Op. Temp. (°C)
    -40
  • Outputs
    NPN
  • Cable Length (m)
    2
  • Housing Style
    Barrel
  • Max Sensing Distance (mm)
    7500
  • Sensing Mode (Detailed)
    Non-Polarized
  • Sensing Mode (General)
    Retroreflective
  • Primary Housing Material
    Thermoplastic
  • Input/Output
    Discrete
  • Sensing Beam
    Visible Red LED
  • Power
    DC
  • Equivalent to
    S182VNLV2M
  • Primary brand
    Banner Engineering
  • Sub-range name
    S18-2 series
  • Design
    retro-reflective mode
  • Sensing distance
    7.5m
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Response time
    1.5ms / 0.0015 s
  • Product series / family name
    M18 barrel series
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength
    624 nm
  • Shape
    Cylindrical threaded/barrel
  • Digital outputs
    1 x digital output (NPN transistor)
  • Degree of protection
    IP67
  • Compliant with standard(s)
    CE
  • Thread size
    M18
  • Ambient air temperature for operation
    -40...+70 °C
  • Order code / Manufacturer SKU
    42150
  • Main function
    Sensor (Photo-electric)
  • Functions
    Photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting) potentiometer adjustment
  • Light Color
    Visible red
  • Operating mode
    Light-ON Dark-ON
  • Material
    thermoplastic housing Acrylic lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


S18-2VNLV-2M Description

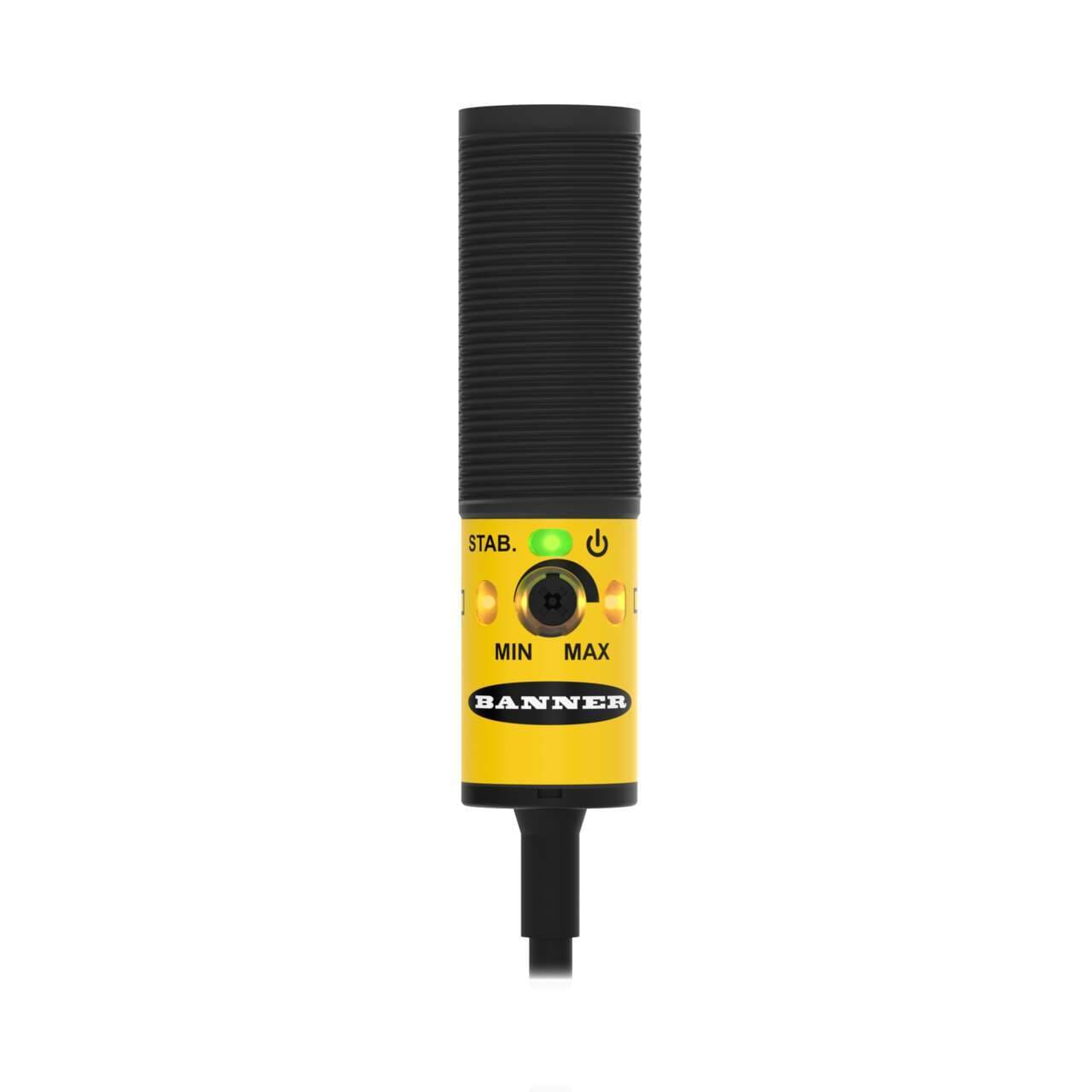

Banner Engineering S18-2VNLV-2M is a photo-electric sensor from the S18-2 series, designed in a retro-reflective mode with potentiometer adjustment for range. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. This sensor operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It is protected to a degree of IP67, ensuring its operation in various environmental conditions. The sensor has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (NPN transistor), and offers a sensing distance of up to 7.5m. It utilizes visible red light with a wavelength of 624 nm and has a response time of 1.5ms / 0.0015 s. The operating modes available are Light-ON and Dark-ON, with a thread size of M18.
