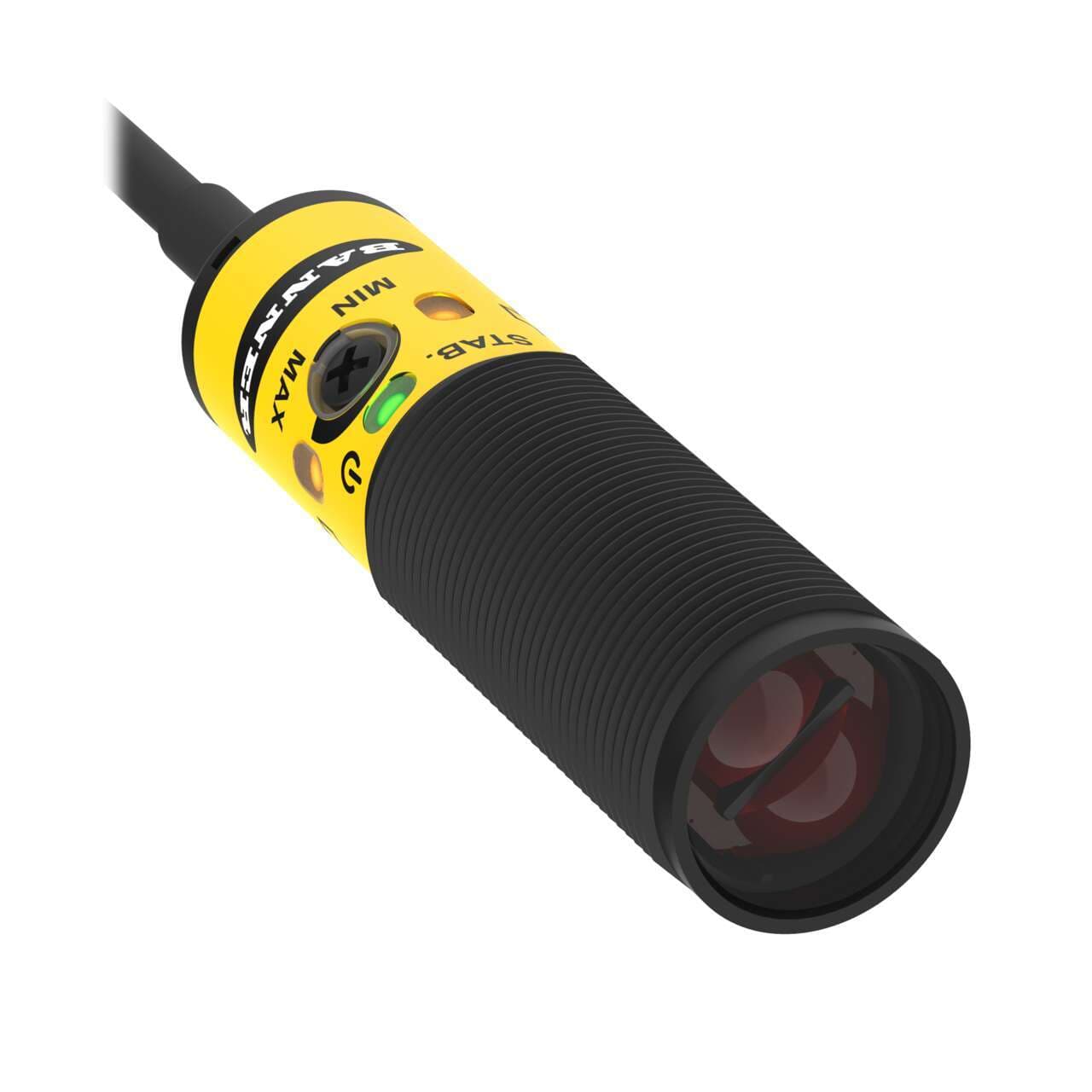

S18-2VNLPC-2M Banner Optical Sensors

S18-2VNLPC-2M on Powermatic Associates
Banner

Part#:S18-2VNLPC-2M

Manufacturer:Banner

Alt. Part#:86556

Product Lifecycle:Active

Get a quick Quote!

S18-2 Series: Polarized Retroreflective with pot; Range: variable to 6 m; Input: 10-30 V dc; Outputs: complementary NPN; 2 m 4-conductor PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18-2VNLPC-2M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    CN
  • Feature: Ecolab Certified
    Yes
  • Adjustments
    Potentiometer
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • DeviceNet
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • IP Rating
    IP67
  • NEMA Rating
    N/A
  • Number of Pins
    4
  • Repeatability (µs)
    100
  • Delay at Power-up (ms)
    100
  • Sensing Beam Wavelength
    624
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Operation
    Light/Dark Operate
  • Max Op. Temp. (°C)
    70
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    1.5
  • Min Op. Temp. (°C)
    -40
  • Connection
    Cable
  • Quick Disconnect Type
    No QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    NPN
  • Input/Output
    Discrete
  • Primary Housing Material
    Thermoplastic
  • Cable Length (m)
    2
  • Max Sensing Distance (mm)
    6000
  • Housing Style
    Barrel
  • Sensing Mode (Detailed)
    Polarized
  • Sensing Mode (General)
    Retroreflective
  • Power
    DC
  • Sensing Beam
    Visible Red LED
  • Main function
    Sensor (Photo-electric)
  • Design
    retro-reflective mode
  • Thread size
    M18
  • Degree of protection
    IP67
  • Compliant with standard(s)
    CE
  • Sub-range name
    S18-2 series
  • Light Color
    Visible red
  • Operating mode
    Light-ON Dark-ON
  • Ambient air temperature for operation
    -40...+70 °C
  • Order code / Manufacturer SKU
    86556
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength
    624 nm
  • Digital outputs
    1 x digital output (NPN transistor)
  • Primary brand
    Banner Engineering
  • Functions
    Polarized photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting) potentiometer adjustment
  • Shape
    Cylindrical threaded/barrel
  • Response time
    1.5ms / 0.0015 s
  • Product series / family name
    M18 barrel series
  • Sensing distance
    6m
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Material
    thermoplastic housing Acrylic lns.
  • Equivalent to
    S182VNLPC2M

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18-2VNLPC-2M Description

Banner Engineering S18-2VNLPC-2M is a polarized photo-electric sensor from the S18-2 series, designed in a retro-reflective mode with potentiometer adjustment for precise control. It features a thermoplastic housing and an acrylic lens, ensuring durability and clear signal transmission. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. It operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. With an IP67 degree of protection, it is well-suited for challenging environments. The sensor's shape is an M18 cylindrical threaded/barrel, equipped with 1 x digital output (NPN transistor) for reliable signal processing. It offers a sensing distance of up to 6m and utilizes visible red light with a wavelength of 624 nm for detection. The response time is quick at 1.5ms / 0.0015 s, and it supports both Light-ON and Dark-ON operating modes, making it versatile for various applications. The thread size for mounting is M18.

Related documents S18-2VNLPC-2M Specs

S18-2VNLPC-2M 170670.pdf

Manufacturer warranty

$77.00

Request a quote, and we will send availability within minutes.

Select Qty:

$77.00

$77.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty
