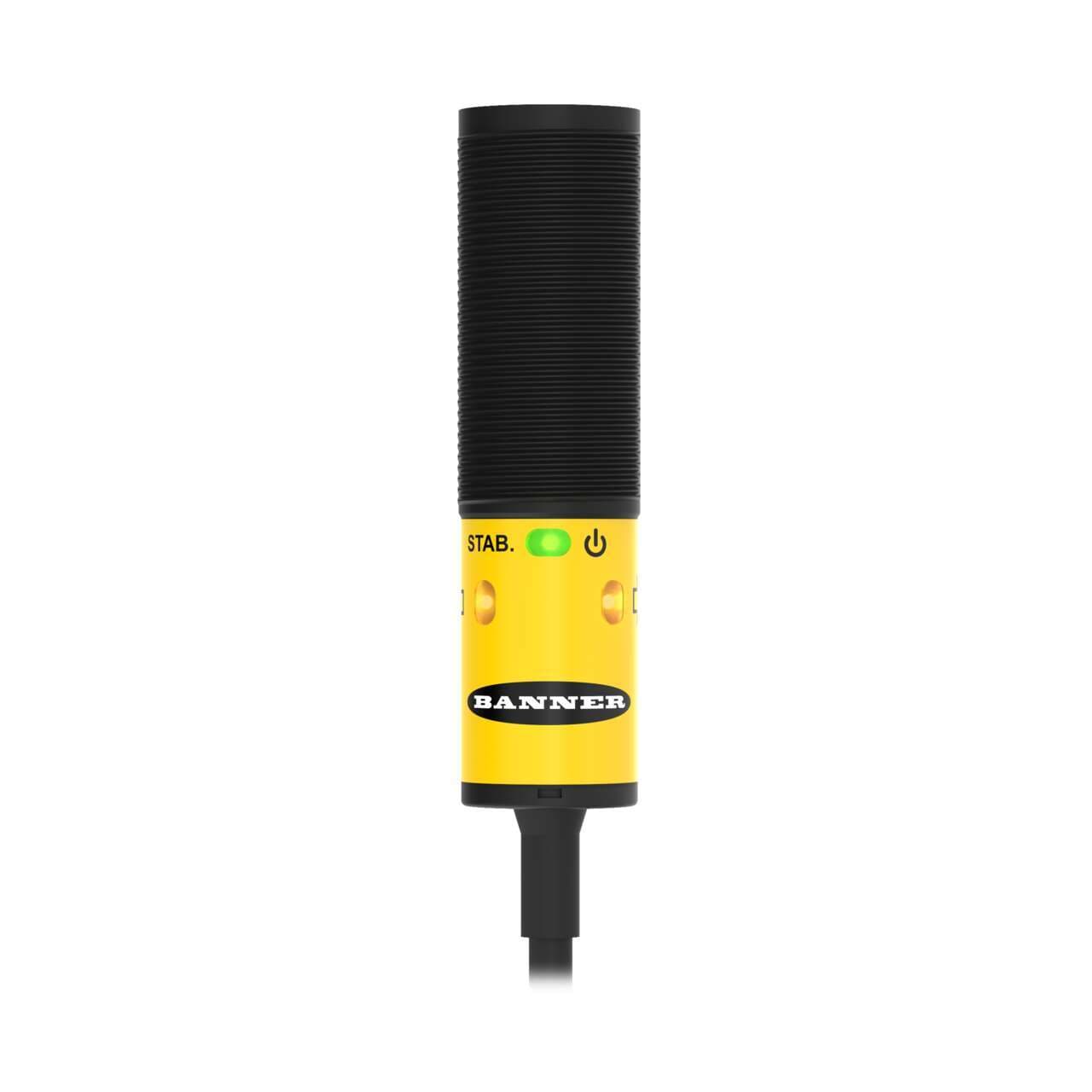

S18-2VNLP-2M Banner Optical Sensors

S18-2VNLP-2M on Powermatic Associates
Banner

Part#:S18-2VNLP-2M

Manufacturer:Banner

Alt. Part#:42140

Product Lifecycle:Active

Get a quick Quote!

S18-2 Series: Polarized Retroreflective; Range: 6 m; Input: 10-30 V dc; Outputs: complementary NPN; 2 m 4-conductor PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18-2VNLP-2M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    CN
  • IO Link
    No
  • Feature: Timing (Hold/Delay)
    No
  • Lens Material
    Acrylic
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Audible
    No
  • Feature: Ecolab Certified
    Yes
  • Indicator
    LEDs
  • Opposed Mode Emitter/Receiver
    N/A
  • Barrel Diameter (mm)
    18
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Adjustments
    N/A
  • IP Rating
    IP67
  • NEMA Rating
    N/A
  • Number of Pins
    4
  • Repeatability (µs)
    100
  • Delay at Power-up (ms)
    100
  • Sensing Beam Wavelength
    624
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Output response time (ms)
    1.5
  • Max Op. Temp. (°C)
    70
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -40
  • Special Feature: Intrinsically Safe
    No
  • Power Supply/Supply Voltage
    10-30 V dc
  • Quick Disconnect Type
    No QD
  • Connection
    Cable
  • Housing Style
    Barrel
  • Outputs
    NPN
  • Max Sensing Distance (mm)
    6000
  • Primary Housing Material
    Thermoplastic
  • Sensing Beam
    Visible Red LED
  • Power
    DC
  • Input/Output
    Discrete
  • Sensing Mode (Detailed)
    Polarized
  • Sensing Mode (General)
    Retroreflective
  • Cable Length (m)
    2
  • Light Color
    Visible red
  • Thread size
    M18
  • Product series / family name
    M18 barrel series
  • Main function
    Sensor (Photo-electric)
  • Functions
    Polarized photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
  • Primary brand
    Banner Engineering
  • Sub-range name
    S18-2 series
  • Sensing distance
    6m
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Response time
    1.5ms / 0.0015 s
  • Compliant with standard(s)
    CE
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Shape
    Cylindrical threaded/barrel
  • Ambient air temperature for operation
    -40...+70 °C
  • Wavelength
    624 nm
  • Degree of protection
    IP67
  • Design
    retro-reflective mode
  • Operating mode
    Light-ON Dark-ON
  • Material
    thermoplastic housing Acrylic lns.
  • Order code / Manufacturer SKU
    42140
  • Digital outputs
    1 x digital output (NPN transistor)
  • Equivalent to
    S182VNLP2M

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18-2VNLP-2M Description

Banner Engineering S18-2VNLP-2M is a polarized photo-electric sensor from the S18-2 series, designed in a retro-reflective mode. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. This sensor operates within a supply voltage range of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function in ambient air temperatures ranging from -40 to +70°C. It offers a degree of protection rated at IP67 and comes in an M18 cylindrical threaded/barrel shape. The S18-2VNLP-2M is equipped with one digital output (NPN transistor), has a sensing distance of up to 6m, and utilizes visible red light with a wavelength of 624 nm. Its response time is 1.5ms / 0.0015 s, and it supports both Light-ON and Dark-ON operating modes.

Related documents S18-2VNLP-2M Specs

S18-2VNLP-2M 170670.pdf
