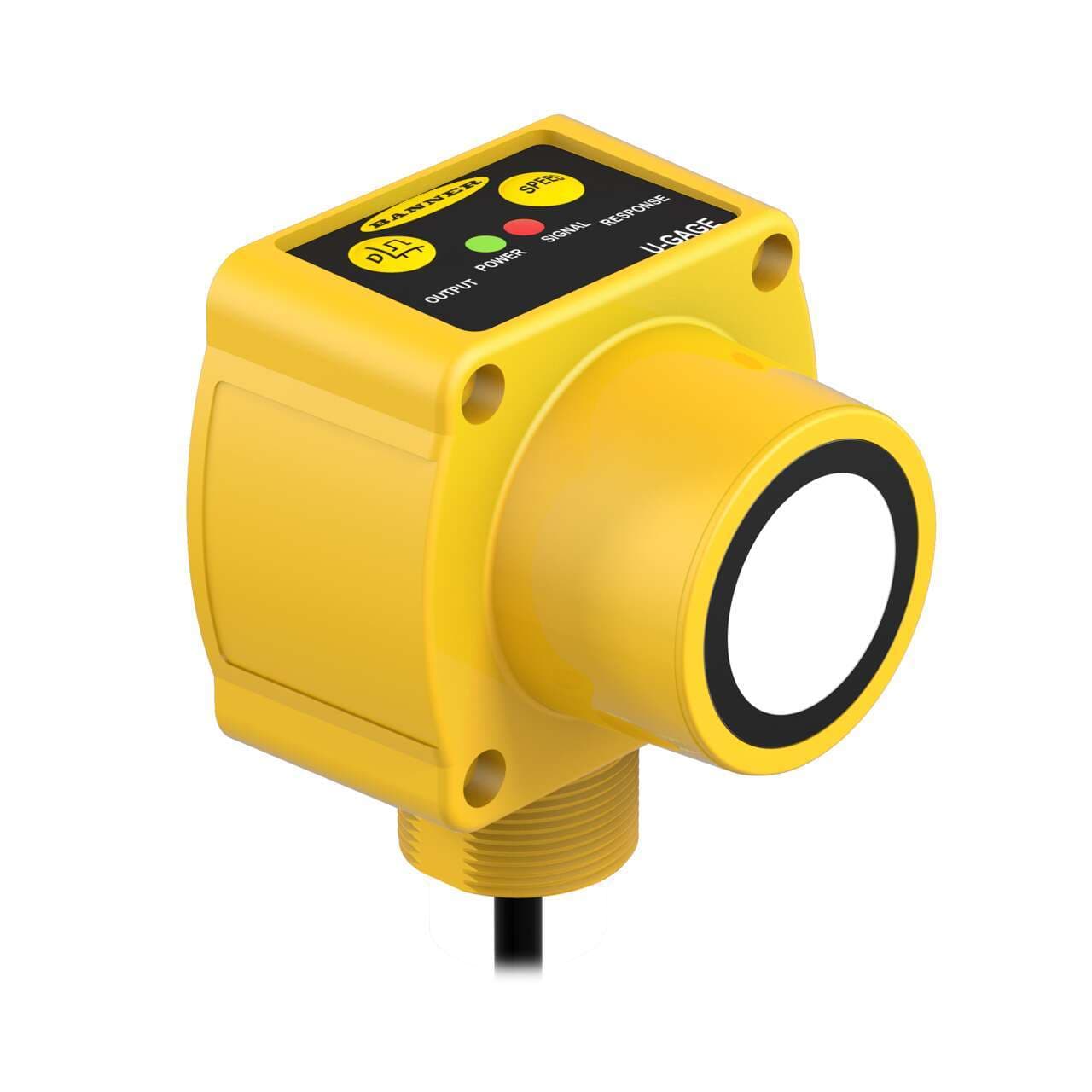

QT50UVR3F Banner Ultrasonic Sensors

Product Details

• Weight
  489.87936 g
• Country Of Origin
  US
• Profibus
  No
• 1-wire Serial Interface
  No
• SSI
  No
• RS-422
  No
• IO Link
  No
• Application: Ultrasonic
  Yes
• Feature: Pump-in/ Pump-out
  Yes
• Feature: Timing (Hold/Delay)
  No
• Minimum Window Size (mm)
  20
• Ultrasonic Frequency (kHz)
  75
• Temp. Warm-up Drift (Notes 2)
  After 25 min, the sensing position will be stable.
• Minimum Response Time (ms)
  100
• Temperature Warm-up Drift upon Power-up
  < 7% of the sensing distance upon power-up.
• Max Op. Relative Humidity Non-Condensing (%)
  100
• Max Operating Temperature (°C)
  70
• Max Discrete (Switched) Output (mA)
  8000
• Wireless
  No
• RS-485
  No
RS-232
No
PROFINET
No
Common Ethernet Protocol
No
Feature: Chemical Resistant
No
Feature: Clear Object Detection
Yes
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Feature: Remote Teach
Yes
Power/Current Consumption (exclusive of load)
1.5 W max
Rep Rate (ms)
96
Min Operating Temperature (°C)
-20
Storage Temperature (°C)
-40 to 90
Temp. Warm-up Drift (Notes 1)
After 5 min, the apparent switchpoint is < 0.6% of the actual position.
Warm-up Time (minutes)
30
NEMA Rating
NEMA 6P
IP Rating
IP67
Output Protection
Protected against short circuit conditions
Discrete (Switched) Outputs
SPDT e/m Relay
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
5
Temperature Effect (mm/°C)
Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
Adjustments
Push Button (s)
Delay at Power-up (ms)
1500
Connection
Flying Leads
Power Supply
85-264 V ac / 48-250 V dc
Analog Resolution/Discrete Repeatability
1
Minimum Sensing Distance (mm)
200
Max Sensing Distance (mm)
8000
Quick Disconnect Type
No QD
Indicator
LED(s)
Input/Output
E/M Relay
Primary Housing Material
PBT
Device Type
Sensor
Sensing Mode (General)
Proximity
Housing Style
Rectangular
Cable Length (m)
2
Max Measurement Range
>1 m - <=20 m
Sensing Mode (Detailed)
Time of Flight
PC Configurable
No
Power
AC/DC Universal
Sensing Beam
Ultrasonic
Design
time-of-flight system
Material
thermoplastic housing
Primary brand
Banner Engineering
Sub-range name
QT50UVR series
Supply voltage (AC)
85Vac-264Vac (200Vac / 220Vac / 240Vac nom.)
Sensing distance
20cm...8m
Mounting mode
Threaded mount
Protection functions
Short-circuit
Main function
Sensor (Distance)
Supply voltage (DC)
48Vdc-250Vdc (120Vdc nom.)
Shape
Rectangular
Degree of protection
IP67 NEMA 6P
Order code / Manufacturer SKU
72182
Product series / family name
U-GAGE series
Thread size
M30
Digital outputs
1 x digital output (SPDT contact type)
Emission frequency
75kHz
Functions
Ultrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal)
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Ambient air temperature for operation
-20...+70 °C
Compliant with standard(s)
CE
