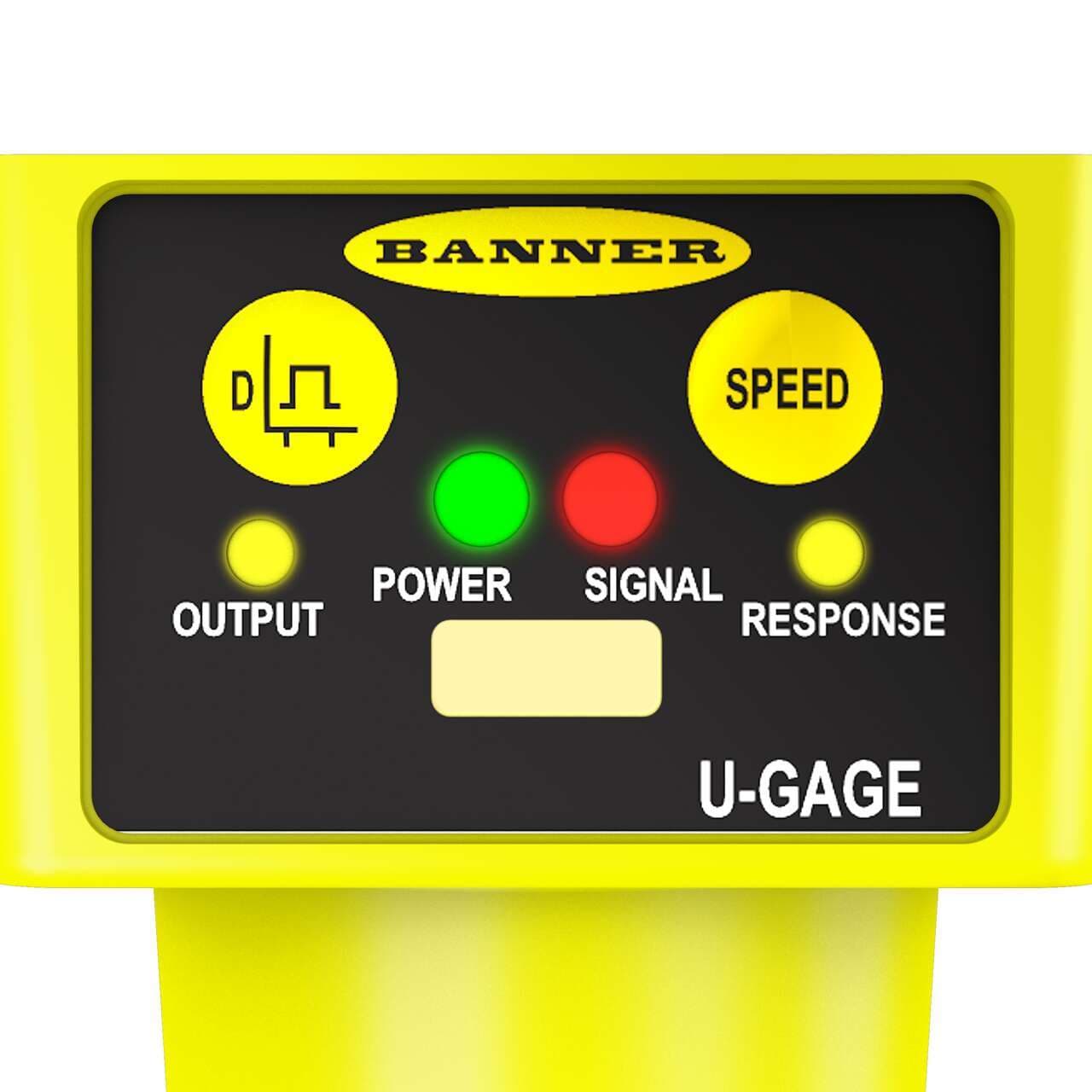

QT50UVR3F W/30 Banner Ultrasonic Sensors
Part#:QT50UVR3F W/30
Alt. Part#:72259
Manufacturer:Banner
Category:Ultrasonic Sensors
Product Lifecycle:Active
Product description
QT50U Universal Voltage Series: Proximity Mode; Range: 200 mm - 8 m; Input: 85-264 V ac 50/60 Hz/48 to 250 V dc; 9 m (30 ft) Cable
Product Details
- Weight 907.184 g
- Country Of Origin US
- 1-wire Serial Interface No
- SSI No
- Wireless No
- RS-422 No
- RS-232 No
- Feature: Timing (Hold/Delay) No
- IO Link No
- Feature: Pump-in/ Pump-out Yes
- Application: Ultrasonic Yes
- Feature: Clear Object Detection Yes
- Minimum Window Size (mm) 20
- Warm-up Time (minutes) 30
- Temperature Warm-up Drift upon Power-up < 7% of the sensing distance upon power-up.
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- IP Rating IP67
- Profibus No
- PROFINET No
- RS-485 No
- Common Ethernet Protocol No
- Feature: Chemical Resistant No
- Feature: Remote Teach Yes
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Power/Current Consumption (exclusive of load) 1.5 W max
- Ultrasonic Frequency (kHz) 75
- Rep Rate (ms) 96
- Temp. Warm-up Drift (Notes 2) After 25 min, the sensing position will be stable.
- Temp. Warm-up Drift (Notes 1) After 5 min, the apparent switchpoint is < 0.6% of the actual position.
- Max Operating Temperature (°C) 70
- Minimum Response Time (ms) 100
- Max Op. Relative Humidity Non-Condensing (%) 100
- Min Operating Temperature (°C) -20
- NEMA Rating NEMA 6P
- Storage Temperature (°C) -40 to 90
- Max Discrete (Switched) Output (mA) 8000
- Discrete (Switched) Outputs SPDT e/m Relay
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Temperature Effect (mm/°C) Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
- Number of Pins 5
- Output Protection Protected against short circuit conditions
- Adjustments Push Button (s)
- Power Supply 85-264 V ac / 48-250 V dc
- Minimum Sensing Distance (mm) 200
- Max Sensing Distance (mm) 8000
- Delay at Power-up (ms) 1500
- Indicator LED(s)
- Analog Resolution/Discrete Repeatability 1
- Quick Disconnect Type No QD
- Connection Flying Leads
- Input/Output Discrete
- Primary Housing Material PBT
- Housing Style Rectangular
- Sensing Mode (Detailed) Time of Flight
- Device Type Sensor
- Power AC/DC Universal
- Sensing Beam Ultrasonic
- PC Configurable No
- Sensing Mode (General) Proximity
- Cable Length (m) 9
- Max Measurement Range >1 m - <=20 m
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QT50UVR3F W/30 on Powermatic Associates is $988.00. Order now.
About the product
Banner Engineering QT50UVR3F W/30 is an ultrasonic distance sensor characterized by its M30 threaded mount and a design based on a time-of-flight system. It operates within an ambient air temperature range of -20 to +70°C and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads for connection. This sensor supports a supply voltage range of 85Vac-264Vac (with 200Vac / 220Vac / 240Vac nominal) and 48Vdc-250Vdc (with 120Vdc nominal), ensuring versatility in various power environments. It belongs to the QT50UVR series and offers a sensing distance between 20cm and 8m. The QT50UVR3F W/30 features a rectangular shape, a transmission frequency of 75kHz, and is constructed with a thermoplastic housing for durability. It provides one digital output (SPDT relay contact) and includes protection functions against short-circuits. This sensor is rated with a degree of protection IP67 NEMA 6P, indicating its capability to withstand dust and water ingress in demanding conditions.
