QT50R-TW-AFHQ Banner Safety Light Curtains

Name: QT50R-TW-AFHQ
Brand: Banner
Price: 1011 USD
Availability: BackOrder

Part#:QT50R-TW-AFHQ

Manufacturer:Banner

Alt. Part#:93455

Product Lifecycle:Active

Get a quick Quote!

R-Gage Series Radar Sensor; Adjustable Field; Outputs: Bipolar: 1 NPN; 1 PNP; Supply Voltage: 12-30 V dc; Range: 3.5 - 24 m; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QT50R-TW-AFHQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
453.592 g
Country Of Origin
US
1-wire Serial Interface
No
Profibus
No
Cert: Taiwan
Yes
Wireless
No
SSI
No
RS-485
No
RS-232
No
RS-422
No
IO Link
No
PROFINET
No
Common Ethernet Protocol
No
Feature: Chemical Resistant
No
Feature: Timing (Hold/Delay)
No
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Power/Current Consumption (exclusive of load)
< 100 mA
Minimum Response Time (ms)
30
Min Operating Temperature (°C)
-40
IP Rating
IP67

Output Protection

Protected against short circuit

Number of Pins

Max Operating Temperature (°C)

Discrete (Switched) Outputs

Bipolar (NPN & PNP)

Max Discrete (Switched) Output (mA)

150

Adjustments

Dip Switch

Delay at Power-up (ms)

2000

Power Supply

12-30 V dc

Connection

Integral QD

Quick Disconnect Type

M12 (Euro)

Max Sensing Distance (mm)

24000

Minimum Sensing Distance (mm)

3500

Radar Beam Pattern (H x V °)

90 x 76

Indicator

LED(s)

Input/Output

Discrete

Primary Housing Material

ABS/Polycarbonate

Device Type

Sensor

PC Configurable

Sensing Beam

Radar

Housing Style

Rectangular

Sensing Mode (Detailed)

Time of Flight

Max Measurement Range

>20 m - <=50 m

Sensing Mode (General)

Proximity

Operating Frequency

24 GHz

Power

Sub-range name

QT50R-AFH

Primary brand

Banner Engineering

Supply voltage (DC)

12Vdc-30Vdc (24Vdc nom.)

Shape

Rectangular

Digital outputs

1 x digital output (PNP/NPN transistor)

Protection functions

Reverse polarity Short-circuit

Product series / family name

R-GAGE series

Design

time-of-flight system

Connection type

Pre-equipped with 5-pin Euro-style M12 connector

Ambient air temperature for operation

-40...+65 °C

Order code / Manufacturer SKU

93455

Sensing distance

3.5...24m

Degree of protection

IP67

Equivalent to

QT50RTWAFHQ

Main function

Sensor (Radar)

Functions

Collision-avoidance adjustable-field radar sensor green LED (power ON) yellow LED (output state)

Material

ABS / polycarbonate housing

Compliant with standard(s)

cULus CE

Operating mode

NO (Normally Open) NC (Normally Closed)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QT50R-TW-AFHQ Description

Banner Engineering QT50R-TW-AFHQ is a collision-avoidance adjustable-field radar sensor designed with a time-of-flight system and approved by Taiwan Telecom. It operates within an ambient air temperature range of -40 to +65°C and is equipped with a 5-pin Euro-style M12 connector for connectivity. This sensor falls under the QT50R-AFH series and offers an IP67 degree of protection, ensuring its suitability for various environmental conditions. It requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc being nominal. The QT50R-TW-AFHQ features a rectangular shape and is constructed from ABS / Polycarbonate (PC) housing, supporting its durability. It has a sensing distance that ranges from 3.5 to 24 meters and provides operating modes of NO (Normally Open) and NC (Normally Closed). Additionally, it includes 1 x digital output (PNP/NPN transistor) and is equipped with protection functions against reverse polarity and short-circuit, enhancing its operational reliability.

$1,011.00

Request a quote, and we will send availability within minutes.

Select Qty:

$1,011.00

$1,011.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Relevant products

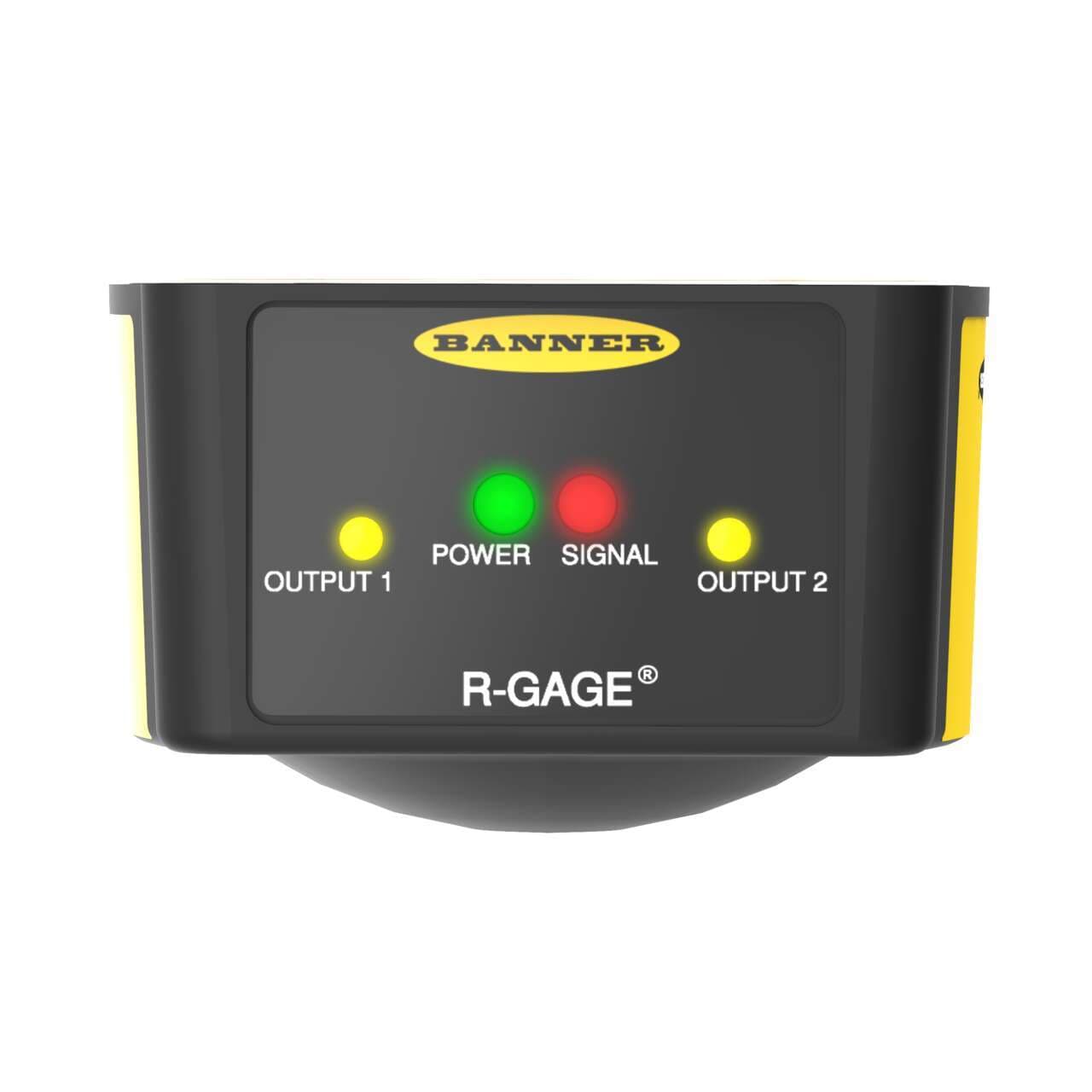

QT50R-US-AFH
