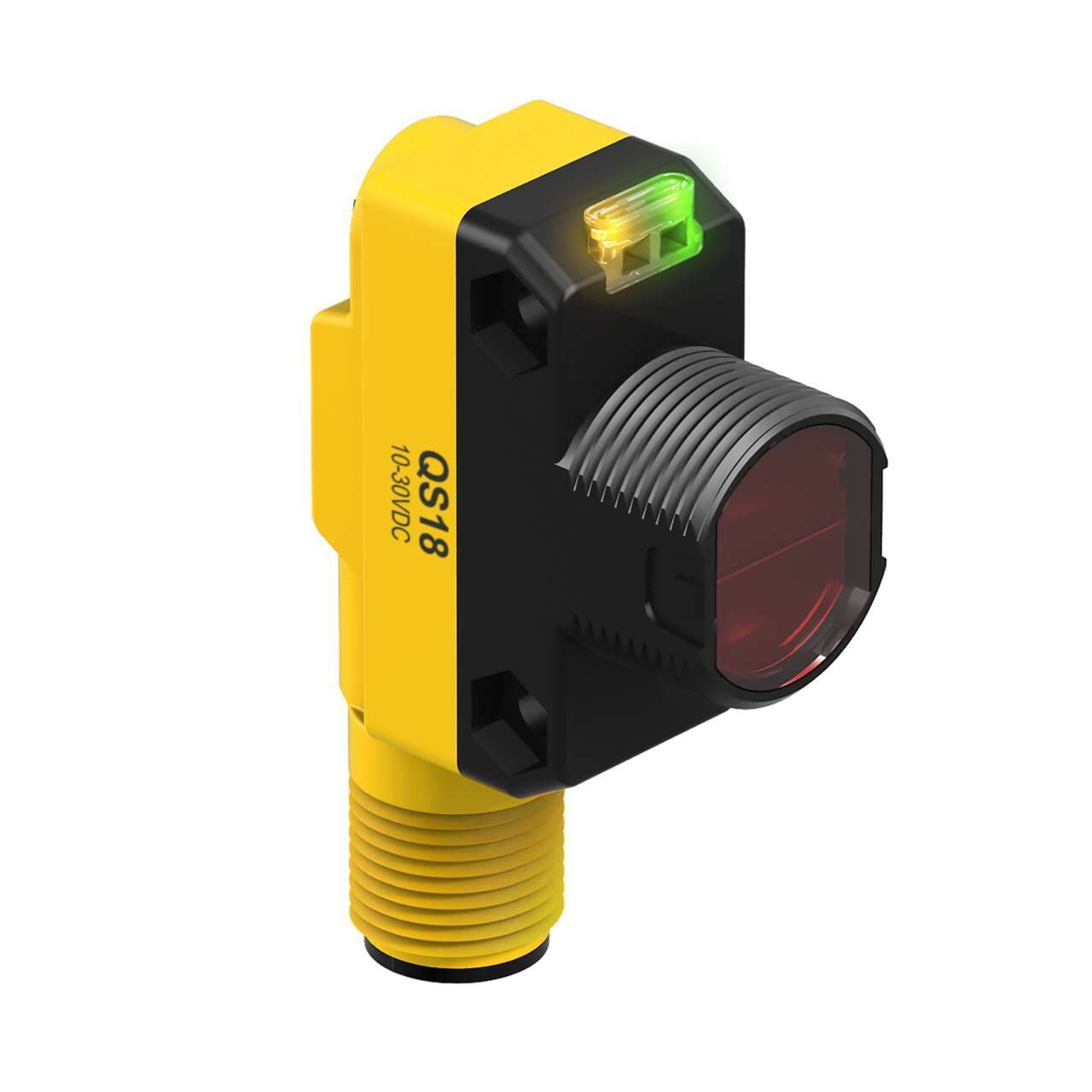

QS18VP6LVQ8 Banner Proximity Sensors

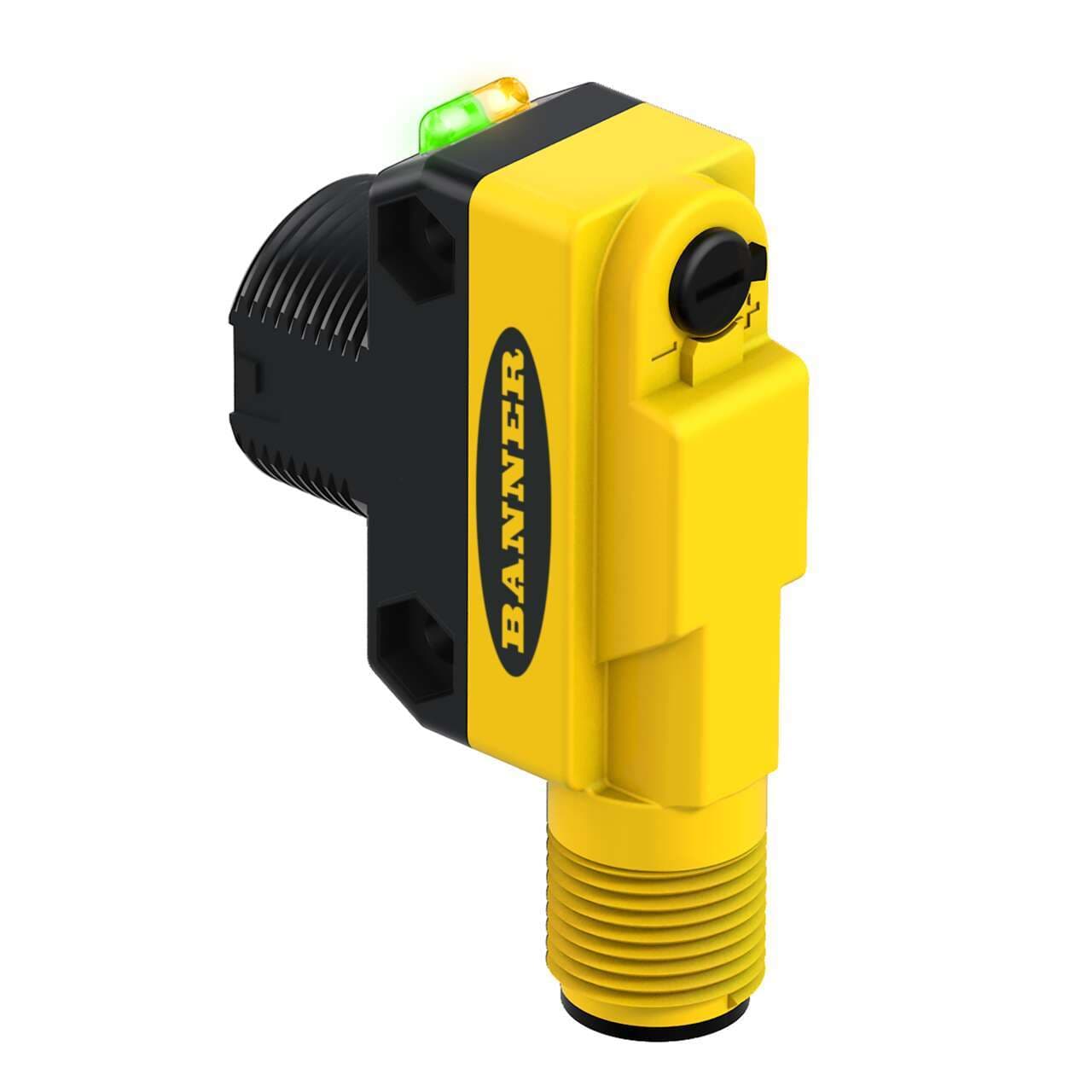

Banner QS18VP6LVQ8 WORLD-BEAM QS18 Series: Retro; Range: 6.5 m; Input: 10-30 V dc; Output: Complementary SOlid State PNP; M12 Integral QD
Banner

Part#:QS18VP6LVQ8

Manufacturer:Banner

Alt. Part#:66454

Product Lifecycle:Active

Get a quick Quote!

WORLD-BEAM QS18 Series: Retro; Range: 6.5 m; Input: 10-30 V dc; Output: Complementary SOlid State PNP; M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS18VP6LVQ8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    MX
  • IO Link
    No
  • Feature: Encapsulated
    No
  • Feature: Chemical Resistant
    No
  • Lens Material
    Acrylic
  • DeviceNet
    No
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Audible
    No
  • Indicator
    LEDs
  • Feature: Hazardous Area
    No
  • Adjustments
    Potentiometer
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Barrel Diameter (mm)
    18
  • NEMA Rating
    NEMA 6
  • IP Rating
    IP67
  • Delay at Power-up (ms)
    100
  • Number of Pins
    4
  • Repeatability (µs)
    150
  • Sensing Beam Wavelength
    630
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Water Detection
    No
  • Min Op. Temp. (°C)
    -20
  • Operation
    Light/Dark Operate
  • Output response time (ms)
    0.6
  • Max Op. Temp. (°C)
    70
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Input/Output
    Discrete
  • Outputs
    PNP
  • Max Sensing Distance (mm)
    6500
  • Primary Housing Material
    ABS
  • Power
    DC
  • Sensing Mode (General)
    Retroreflective
  • Sensing Mode (Detailed)
    Non-Polarized
  • Housing Style
    Rectangular w/M18 Mount
  • Sensing Beam
    Visible Red LED
  • Design
    retro-reflective mode
  • Thread size
    M18
  • Main function
    Sensor (Photo-electric)
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Mounting mode
    Threaded mount
  • Ambient air temperature for operation
    -20...+70 °C
  • Sub-range name
    QS18 series
  • Light Color
    Visible red
  • Operating mode
    Light-ON Dark-ON
  • Order code / Manufacturer SKU
    66454
  • Functions
    Photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
  • Shape
    Rectangular
  • Degree of protection
    IP67 NEMA 6
  • Primary brand
    Banner Engineering
  • Product series / family name
    WORLD-BEAM series
  • Sensing distance
    6.5m
  • Digital outputs
    1 x digital output (PNP transistor)
  • Compliant with standard(s)
    cURus CE
  • Material
    thermoplastic housing Acrylic lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


QS18VP6LVQ8 Description

Banner Engineering QS18VP6LVQ8 is a photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. This sensor operates within an ambient air temperature range of -20 to +70°C and is designed in a retro-reflective mode with potentiometer adjustment for precise control. It comes pre-equipped with a 4-pin Euro-style M12 connector for easy connection. As part of the QS18 series, it boasts a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, ensuring longevity and resilience. With a sensing distance of up to 6.5m and visible red light for easy alignment, this sensor also offers flexible operating modes including Light-ON and Dark-ON. It features 1 x digital output (PNP transistor; complementary NO/NC) for versatile signaling options.
