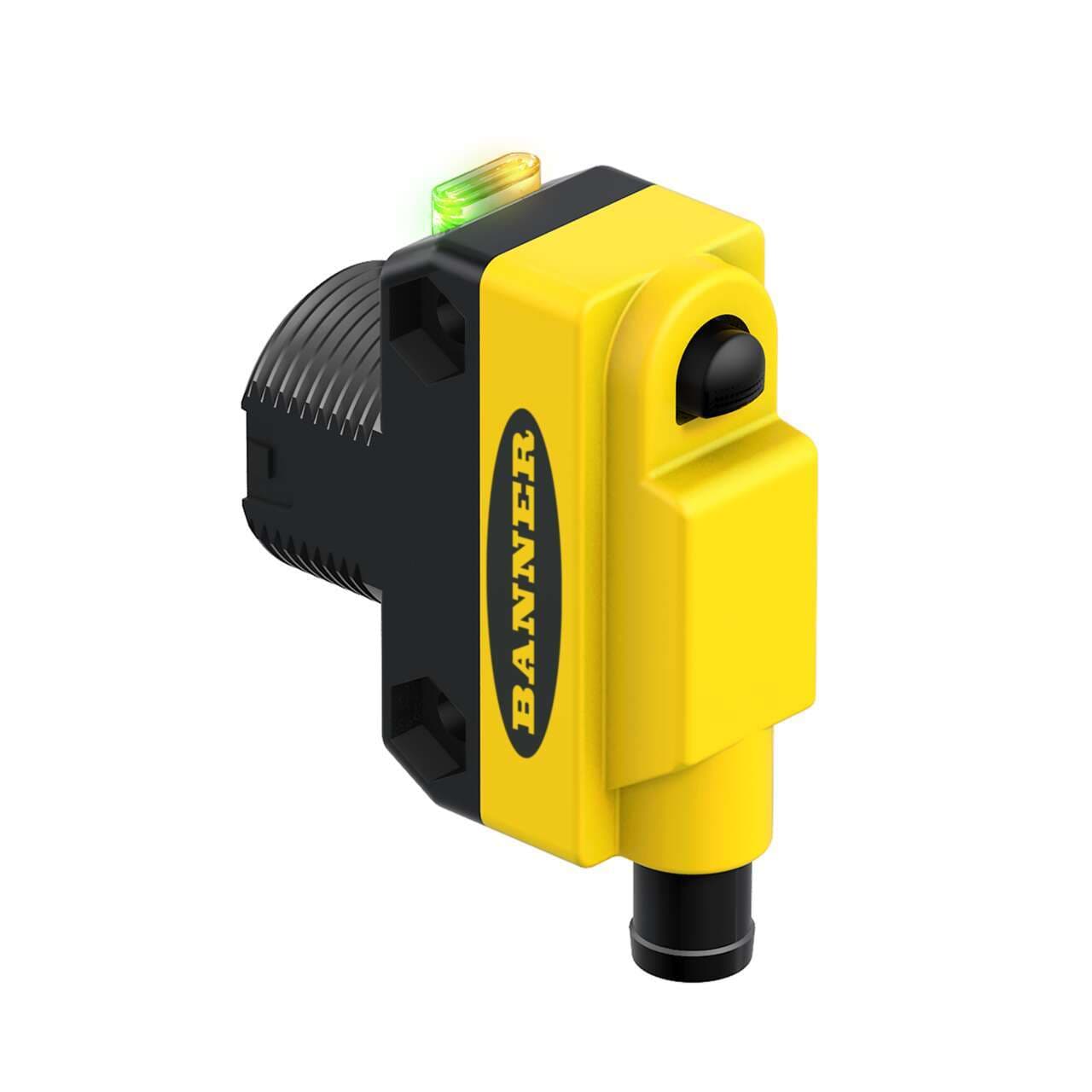

QS18UPAQ7 Banner Ultrasonic Sensors

Product Details

• Weight
  72.57472 g
• Country Of Origin
  CN
• Profibus
  No
• RS-485
  No
• RS-422
  No
• PROFINET
  No
• Application: Ultrasonic
  Yes
• Common Ethernet Protocol
  No
• Feature: Chemical Resistant
  No
• Power/Current Consumption (exclusive of load)
  25 mA max
• 1-wire Serial Interface
  No
• Wireless
  No
• SSI
  No
• IO Link
  No
• RS-232
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Clear Object Detection
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Feature: Remote Teach
  Yes
• Max Off-state Leakage Current (µA)
  PNP: < 5
Discrete Output Hysteresis (mm)
1.4
Ultrasonic Frequency (kHz)
300
Barrel Diameter (mm)
18
Minimum Window Size (mm)
5
Rep Rate (ms)
7.5
Warm-up Time (minutes)
5
Max Op. Relative Humidity Non-Condensing (%)
100
Min Operating Temperature (°C)
-20
Minimum Response Time (ms)
15
Max Operating Temperature (°C)
60
NEMA Rating
NEMA 6P
IP Rating
IP67
Output Protection
Protected against short circuit conditions
Discrete (Switched) Outputs
1 PNP
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage PNP Outputs
< 2.0 V at 100 mA
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Number of Pins
4
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Temperature Effect (mm/°C)
+/- 0.05% of sensing distance/°C from -20 °C to +50 °C, +/- 0.1% of sensing distance/°C from +50 °C to +60 °C
Adjustments
Teach Button
Delay at Power-up (ms)
300
Power Supply
12-30 V dc
Max Sensing Distance (mm)
500
Minimum Sensing Distance (mm)
50
Analog Resolution/Discrete Repeatability
0.7
Quick Disconnect Type
M12 (Euro)
Connection
Integral QD
PC Configurable
No
Primary Housing Material
ABS
Indicator
LED(s)
Input/Output
Discrete
Housing Style
Rectangular w/M18 Mount
Sensing Beam
Ultrasonic
Device Type
Sensor
Sensing Mode (Detailed)
Time of Flight
Sensing Mode (General)
Proximity
Power
DC
Max Measurement Range
>100 mm - <=500 mm
Sensing distance
50...500mm
Main function
Sensor (Distance)
Design
time-of-flight system
Thread size
M18
Emission frequency
300kHz
Sub-range name
QS18U series
Product series / family name
WORLD-BEAM series
Functions
Ultrasonic distance sensor green LED (power ON) yellow LED (output state) TEACH mode
Mounting mode
Threaded mount
Material
ABS housing
Primary brand
Banner Engineering
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Connection type
Pre-equipped with 4-pin Euro-style M12 connector
Digital outputs
1 x digital output (PNP transistor)
Order code / Manufacturer SKU
73157
Shape
Rectangular
Degree of protection
IP67 NEMA 6P
Protection functions
Short-circuit
Ambient air temperature for operation
-20...+60 °C
