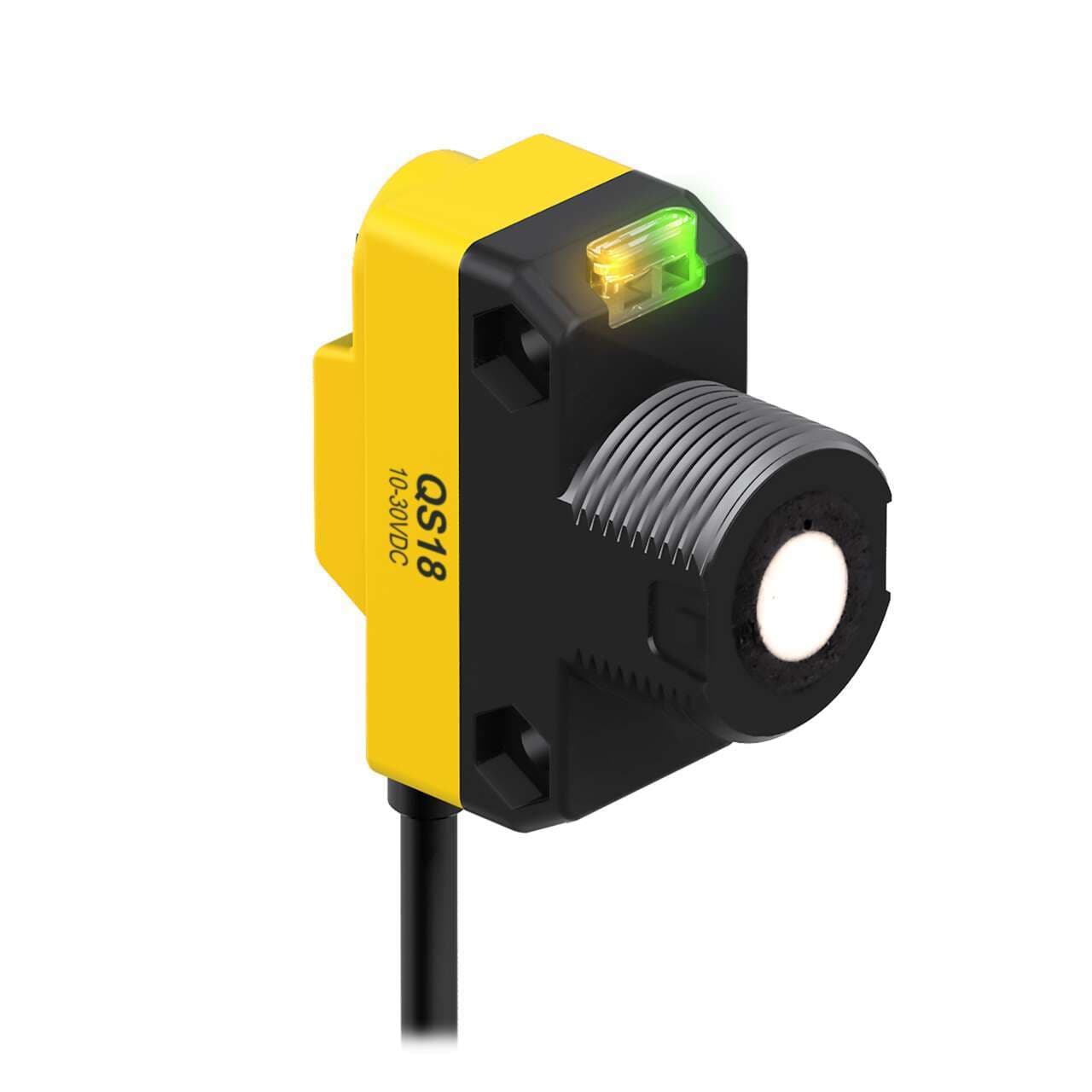

QS18UPAQ5 Banner Ultrasonic Sensors

Product Details

• Weight
  81.64656 g
• Country Of Origin
  CN
• 1-wire Serial Interface
  No
• SSI
  No
• RS-232
  No
• Power/Current Consumption (exclusive of load)
  25 mA max
• Feature: Remote Teach
  Yes
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  No
• Ultrasonic Frequency (kHz)
  300
• Minimum Window Size (mm)
  5
• Barrel Diameter (mm)
  18
• Rep Rate (ms)
  7.5
• Max Op. Relative Humidity Non-Condensing (%)
  100
• Minimum Response Time (ms)
  15
• NEMA Rating
  NEMA 6P
• Min Operating Temperature (°C)
  -20
• Output Saturation Voltage NPN Outputs
  < 1.6 V at 100 mA
• Temperature Effect (mm/°C)
  +/- 0.05% of sensing distance/°C from -20 °C to +50 °C, +/- 0.1% of sensing distance/°C from +50 °C to +60 °C
• Vibration
  MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Wireless
No
Profibus
No
RS-485
No
RS-422
No
PROFINET
No
IO Link
No
Common Ethernet Protocol
No
Application: Ultrasonic
Yes
Feature: Clear Object Detection
Yes
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Max Off-state Leakage Current (µA)
PNP: < 5
Discrete Output Hysteresis (mm)
1.4
Warm-up Time (minutes)
5
Max Operating Temperature (°C)
60
IP Rating
IP67
Output Protection
Protected against short circuit conditions
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Discrete (Switched) Outputs
1 PNP
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage PNP Outputs
< 2.0 V at 100 mA
Number of Pins
4
Adjustments
Teach Button
Power Supply
12-30 V dc
Analog Resolution/Discrete Repeatability
0.7
Delay at Power-up (ms)
300
Max Sensing Distance (mm)
500
Minimum Sensing Distance (mm)
50
Quick Disconnect Type
M12 (Euro)
Connection
Pigtail QD
Input/Output
Discrete
Indicator
LED(s)
Primary Housing Material
ABS
Sensing Beam
Ultrasonic
Power
DC
Sensing Mode (Detailed)
Time of Flight
Sensing Mode (General)
Proximity
Cable Length (m)
0.15
Housing Style
Rectangular w/M18 Mount
PC Configurable
No
Device Type
Sensor
Max Measurement Range
>100 mm - <=500 mm
Sub-range name
QS18U series
Shape
Rectangular
Digital outputs
1 x digital output (PNP transistor)
Primary brand
Banner Engineering
Functions
Ultrasonic distance sensor green LED (power ON) yellow LED (output state) TEACH mode
Connection type
Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
Protection functions
Short-circuit
Order code / Manufacturer SKU
73158
Design
time-of-flight system
Emission frequency
300kHz
Main function
Sensor (Distance)
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Mounting mode
Threaded mount
Degree of protection
IP67 NEMA 6P
Product series / family name
WORLD-BEAM series
Thread size
M18
Sensing distance
50...500mm
Ambient air temperature for operation
-20...+60 °C
Material
ABS housing
