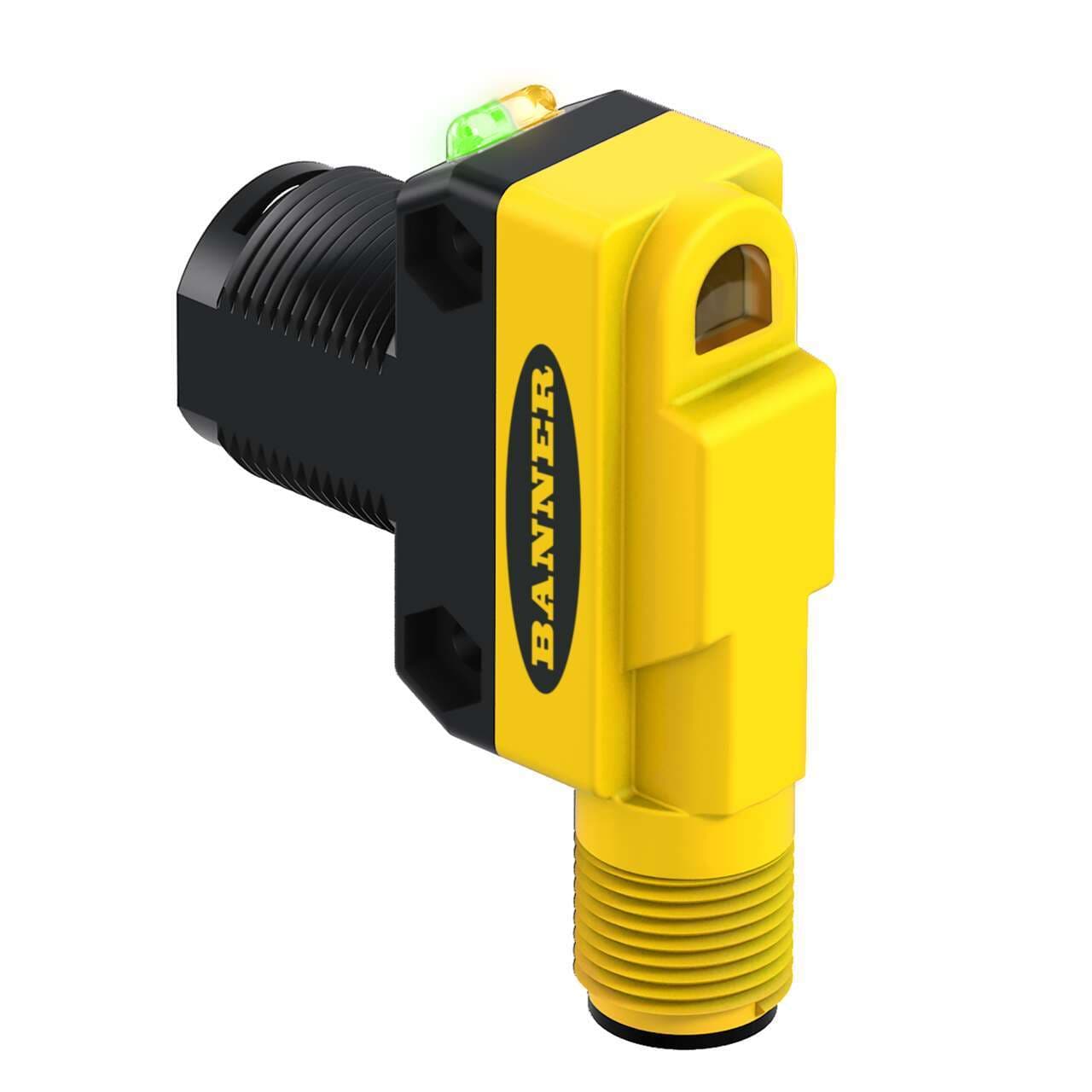

QS18UNAEQ8 Banner Ultrasonic Sensors

Product Details

• Weight
  63.50288 g
• Country Of Origin
  CN
• RS-422
  No
• RS-232
  No
• Discrete Output Hysteresis (mm)
  1.4
• Profibus
  No
• Wireless
  No
• 1-wire Serial Interface
  No
• RS-485
  No
• SSI
  No
• PROFINET
  No
• Common Ethernet Protocol
  No
• IO Link
  No
• Feature: Chemical Resistant
  No
• Application: Ultrasonic
  Yes
• Feature: Clear Object Detection
  Yes
• Feature: Timing (Hold/Delay)
  No
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  25 mA max
Max Off-state Leakage Current (µA)
NPN: < 10; PNP: < 5
Ultrasonic Frequency (kHz)
300
Barrel Diameter (mm)
18
Minimum Window Size (mm)
5
Rep Rate (ms)
7.5
Minimum Response Time (ms)
15
Warm-up Time (minutes)
5
Max Op. Relative Humidity Non-Condensing (%)
100
Min Operating Temperature (°C)
-20
Max Operating Temperature (°C)
60
Storage Temperature (°C)
-40 to 85
NEMA Rating
NEMA 6P
IP Rating
IP68
Output Protection
Protected against short circuit conditions
Discrete (Switched) Outputs
1 NPN
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage PNP Outputs
< 2.0 V at 100 mA
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
4
Temperature Effect (mm/°C)
+/- 0.05% of sensing distance/°C from 0 °C to +60 °C, +/- 1% of sensing distance/°C from -20 °C to 0 °C
Quick Disconnect Type
M12 (Euro)
Adjustments
Remote Teach
Max Sensing Distance (mm)
500
Minimum Sensing Distance (mm)
50
Delay at Power-up (ms)
300
Power Supply
12-30 V dc
Analog Resolution/Discrete Repeatability
0.7
Connection
Integral QD
Indicator
LED(s)
Input/Output
Discrete
Primary Housing Material
ABS
Housing Style
Rectangular w/M18 Mount
Device Type
Sensor
Sensing Mode (Detailed)
Time of Flight
Sensing Mode (General)
Proximity
Power
DC
Max Measurement Range
>100 mm - <=500 mm
PC Configurable
No
Sensing Beam
Ultrasonic
Primary brand
Banner Engineering
Functions
Ultrasonic distance sensor green LED (power ON) yellow LED (output state) remote IP68 / NEMA 6 TEACH btn.
Mounting mode
Threaded mount
Emission frequency
300kHz
Main function
Sensor (Distance)
Thread size
M18
Material
ABS housing
Product series / family name
WORLD-BEAM series
Design
time-of-flight system
Sensing distance
50...500mm
Ambient air temperature for operation
-20...+60 °C
Sub-range name
QS18U series
Shape
Rectangular
Digital outputs
1 x digital output (NPN transistor)
Protection functions
Short-circuit
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Connection type
Pre-equipped with 4-pin Euro-style M12 connector
Degree of protection
IP68 NEMA 6P
Order code / Manufacturer SKU
73161
