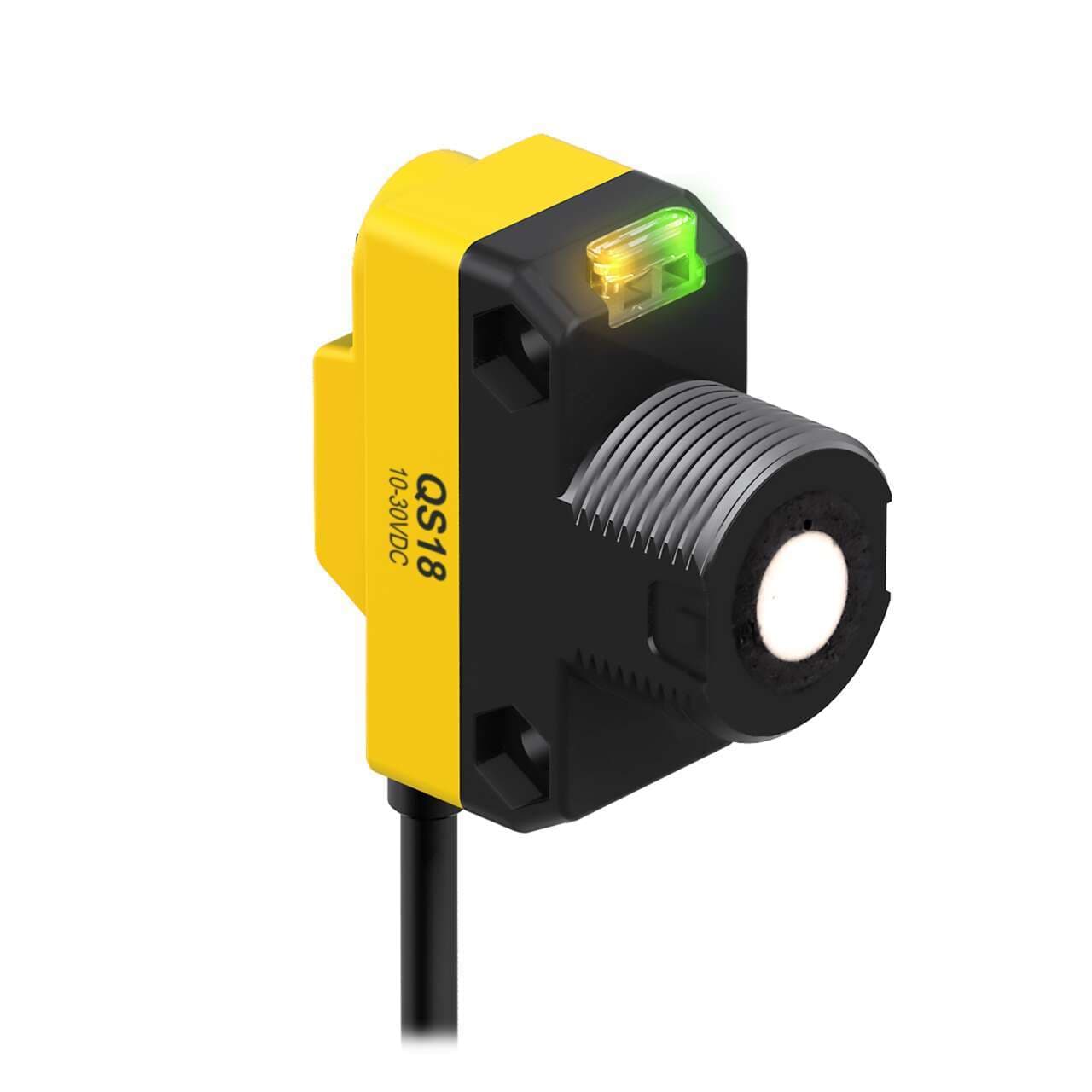

QS18UNA W/30 Banner Ultrasonic Sensors

QS18UNA W/30 on Powermatic Associates
Banner

Part#:QS18UNA W/30

Manufacturer:Banner

Alt. Part#:74216

Product Lifecycle:Active

Get a quick Quote!

WORLD-BEAM QS18U: Ultrasonic TEACH mode; Range: 50-500 mm; Input: 12-30 V dc; Output: NPN; 9 m (30 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS18UNA W/30 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    211.373872 g
  • Country Of Origin
    CN
  • Profibus
    No
  • 1-wire Serial Interface
    No
  • Wireless
    No
  • SSI
    No
  • RS-485
    No
  • RS-422
    No
  • RS-232
    No
  • PROFINET
    No
  • IO Link
    No
  • Common Ethernet Protocol
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Chemical Resistant
    No
  • Feature: Clear Object Detection
    Yes
  • Feature: Remote Teach
    Yes
  • Power/Current Consumption (exclusive of load)
    25 mA max
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Max Off-state Leakage Current (µA)
    NPN: < 10; PNP: < 5
  • Application: Ultrasonic
    Yes
  • Ultrasonic Frequency (kHz)
    300
  • Minimum Window Size (mm)
    5
  • Discrete Output Hysteresis (mm)
    1.4
  • Minimum Response Time (ms)
    15
  • Barrel Diameter (mm)
    18
  • Min Operating Temperature (°C)
    -20
  • Max Operating Temperature (°C)
    60
  • NEMA Rating
    NEMA 6P
  • Warm-up Time (minutes)
    5
  • Max Op. Relative Humidity Non-Condensing (%)
    100
  • Rep Rate (ms)
    7.5
  • Output Protection
    Protected against short circuit conditions
  • IP Rating
    IP67
  • Discrete (Switched) Outputs
    1 NPN
  • Max Discrete (Switched) Output (mA)
    100
  • Output Saturation Voltage PNP Outputs
    < 2.0 V at 100 mA
  • Output Saturation Voltage NPN Outputs
    < 1.6 V at 100 mA
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Number of Pins
    4
  • Temperature Effect (mm/°C)
    +/- 0.05% of sensing distance/°C from -20 °C to +50 °C, +/- 0.1% of sensing distance/°C from +50 °C to +60 °C
  • Delay at Power-up (ms)
    300
  • Adjustments
    Teach Button
  • Power Supply
    12-30 V dc
  • Minimum Sensing Distance (mm)
    50
  • Max Sensing Distance (mm)
    500
  • Analog Resolution/Discrete Repeatability
    0.7
  • Indicator
    LED(s)
  • Connection
    Flying Leads
  • Quick Disconnect Type
    No QD
  • Input/Output
    Discrete
  • Primary Housing Material
    ABS
  • Device Type
    Sensor
  • Sensing Mode (Detailed)
    Time of Flight
  • Housing Style
    Rectangular w/M18 Mount
  • Sensing Mode (General)
    Proximity
  • Cable Length (m)
    9
  • PC Configurable
    No
  • Max Measurement Range
    >100 mm - <=500 mm
  • Power
    DC
  • Sensing Beam
    Ultrasonic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QS18UNA W/30 Description

Banner Engineering QS18UNA W/30 is an ultrasonic distance sensor belonging to the QS18U series. It features an M18 threaded mount and operates within an ambient air temperature range of -20 to +60°C. This sensor is designed with a time-of-flight system and TEACH mode for precise distance measurement. It comes pre-wired with a 30ft / 9m cable terminated with bare end flying leads for easy installation. The QS18UNA W/30 offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environments. It requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and is housed in ABS material. The sensor operates at a 300kHz transmission frequency and can detect distances from 50 to 500mm. It is equipped with one digital output (NPN transistor) and includes protection functions against short-circuits.

Related documents QS18UNA W/30 Specs

QS18UNA W/30 119287.pdf
